Service and Maintenance Systems

Increasing the efficiency of maintenance through a robust support system and unique technologies.

We help to reduce lifecycle costs by providing support for CBM. A full range of maintenance services also offer rapid response to malfunctions and increase the efficiency of inspection procedures.

Train lifecycle management solutions

Creating platforms for systems that collect and utilize train monitoring data by integrating the Train Control and Management System (TCMS) with wayside equipment. The sharing and use of monitoring data and related data enables rapid response to malfunctions (breakdown maintenance) and increased efficiency in inspection procedures (time-based maintenance). It also allows monitoring data analysis techniques to be honed and knowhow obtained towards the realization of condition-based maintenance (CBM).

Maintenance services

Mitsubishi Electric provides comprehensive maintenance services that respond to our customers’ needs, from onsite responses to handover-related services. We always respond with honest maintenance services that consider the customer.

Electrical equipment for rail use

Train air conditioning system

Train depot systems

Maintenance information
management system (MIMS)

Centralized management of train equipment logs and train data, including maintenance data and malfunction data, in a database. Supports expansion to use in malfunction prediction and improvement of maintenance procedures.

Depot information
management system (DIMS)

Formulates train operation (allocation) plans based on main line timetables and train maintenance plans. Can also be used in the formulation of depot work plans and route control.

Measurement and analysis of wayside equipment.

Mitsubishi Electric’s MMSD^TM^* infrastructure monitoring system enables measurement and analysis of wayside equipment using measurement cars

Using high-precision 3D measurement and a range of sensing technologies, we are able to automate social infrastructure inspections and equipment measurements, reducing the expenditure of manpower and increasing precision. Conducting measurements in motion using road-rail vehicles and similar equipment makes it possible to conduct precise 3D measurements in a short period. Analysis and processing of 3D shape data enables its use in a variety of fields and applications.

*Mitsubishi MMS for Diagnosis (MMSD^TM) is a registered trademark of Mitsubishi Electric Corporation.

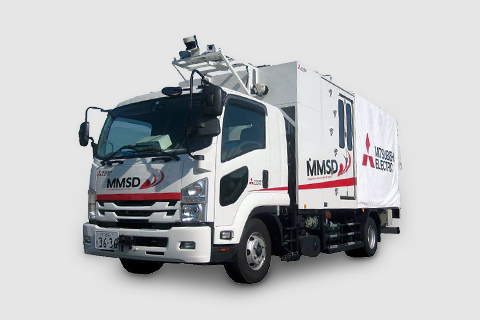

Measurement car

Examples of analysis

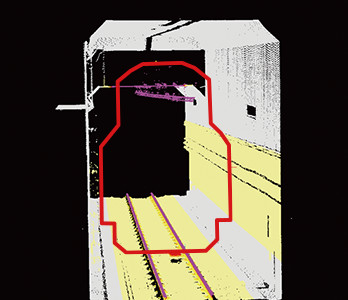

①Measurement of structure gauge

Enables measurement of structure gauge for tunnels, etc.

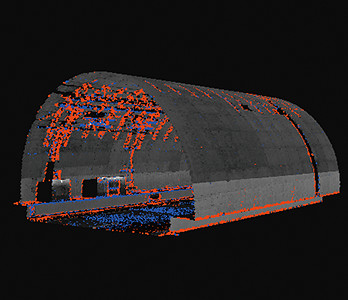

②Tunnel wall status analysis

Internal changes in tunnels are displayed as differently-colored areas.

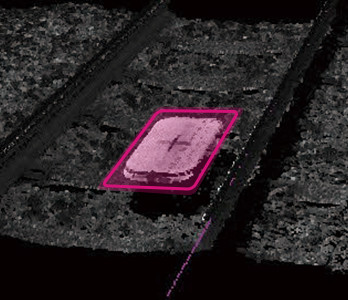

③Beacon and signal location measurement

Enables measurement of absolute position of beacon, equipment management based on absolute position.

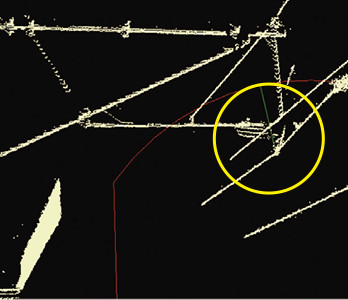

④Measurement of deviation of contact wires

Enables measurement of distance from central position of catenaries.

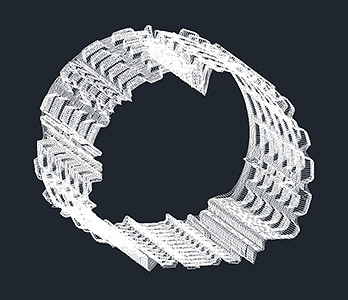

⑤Formulation of 3D CAD data

Enables 3D CAD data to be formulated from 3D shape data.
