MELSEC iQ-R Series

MELSEC iQ-R Series

The core for next-generation automation environment.

To succeed in highly competitive markets, it’s important to build automation systems that ensure high productivityand consistent product quality.
MELSEC iQ-R is taking a three-point approach to solving theseproblems: Reducing TCO, increasing Reliability and Reuse of existing assets.

Some products are regionally specific; for up to date sales availability, please check your local web page.   Click here

CPU

Multi-CPU architecture, configured with ultra high-speed PLC CPU and CPUs such as the motion CPU and the C controller, helps to reduce the production cycle time.

CPU

Base unit

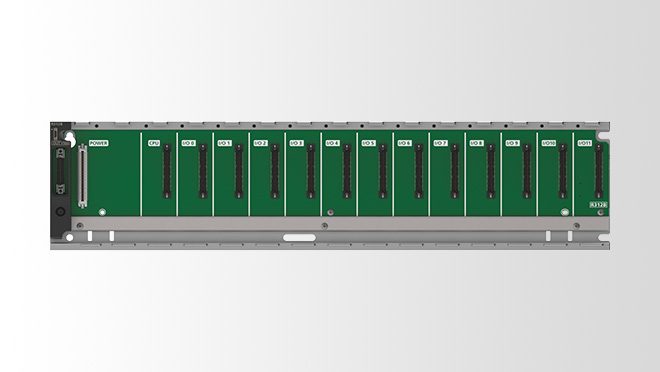

For installing devices such as power supply and CPU module.

Base

Power supply

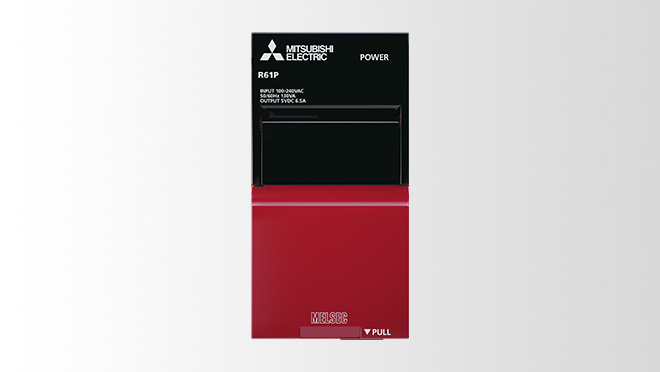

This module is used for providing the electrical power for the CPU, input, output, and other modules on the base unit.

Power supply

I/O module

The digital I/O module intefaces bit signals to the control system.

I/O module

Analog module

Analog modules include the analog I/O module that interfaces voltage and current signals to the control system, the temperature input module that measures the temperature, and the temperature control module that controls the temperature.

Analog module

Simple motion/Positioning module

The simple motion module realizes high-speed and high-accuracy motion control with simple programming. The positioning module performs positioning such as helical interpolation.

Simple motion/Positioning module

High-speed counter/Flexible high-speed I/O control module

The high-speed counter module is capable of handling high-speed pulse signals from an encoder.
The flexible high-speed I/O control module realizes stable I/O response due to high-speed hardware processing without being restricted by the CPU scan time. In addition, user's logic can be set to FPGA with the dedicated intuitive configuration tool.

High-speed counter/Flexible high-speed I/O control module

Information/Network module

The information module enables information exchange with MES database and performs data logging. The network module supports various network such as CC-Link IE and CC-Link.

Information/Network module

Option

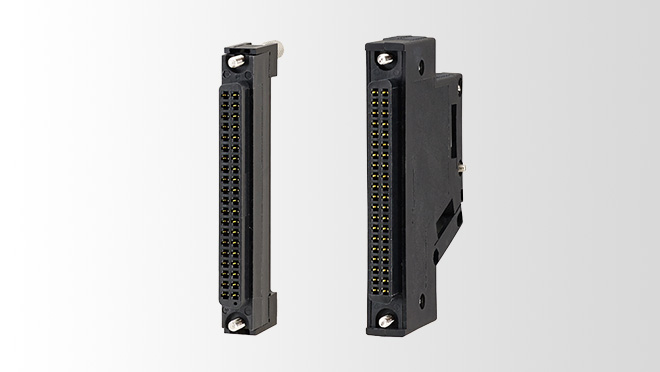

We also provide an extensive lineup of peripheral products such as connectors for input/output modules and industrial hubs.

Option
