Product Features
The best suitable positioning module for your application.
- The positioning module offering numerous positioning control methods (QD75MH)
- The positioning module suitable for a system with multiple axes, which requires simple control (QD74MH)
| QD75MH | QD74MH | |
| Number of control axes | 1 to 4 axes | 1 to 16 axes |
| Operation cycle[ms] | 1.77 to 3.55 | 0.88 |
| Features | Numerous positioning control methods | High-speed multiple-axis positioning with the priority given to high-response and multiple axes |
| Application examples | Sealing using trajectory control |

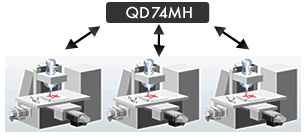

Controlling several X-Y tables |
| Machine examples | Electronic component assembling machine Material handling system Punch press (X, Y feed positioning) X-Y table Index table Inner surface grinder Palletizer |
Electronic component assembling machine Material handling system Bonder X-Y table |
| Positioning program |  A method to specify a positioning address based on positioning data point |
A method to specify a positioning address based on positioning data point |
| Enginieering software | GX Configurator-QP | GX Developer (Set with the sequence program) |
| Main functions | Linear interpolation (1 to 4 axes) Circular interpolation Constant-speed path Home position return Speed switching speed-position switching Speed control Speed change Current value change Torque limit value change Teaching function Block start Re-start Target value change JOG operation |
Linear interpolation (1 to 4 axes) Constant-speed path Home position return Speed change Current value change Torque limit value change Pausing Target value change JOG operation |
