Product Features

800/700 Series INVERTER

Inverter

FR-A800

FR-A800

Extensive range of our high-value next-generation inverter delivers outstanding drive performance in any environment and a wealth of functionality covering from startup to maintenance.

More information

FR-A800 Plus

FR-A800 Plus

The FR-A800 Plus series offer dedicated inverter for specialized fields.
The optimum functions for each dedicated field are added to the already high performance and high functionality FR-A800 series inverter.

More information

FR-F800

FR-F800

We provide solutions to your energy saving needs, not to mention the leading drive performance such as its energy saving functions, low speed and high torque driving, the selectable multiple rating between two types, LD (light duty) and SLD (superlight duty) depending on the load of the fan/pump, and equipping the 24 VDC control power input as standard.

More information

FR-F700PJ

FR-F700PJ

Compact inverter for air conditioning.
Both the general-purpose motor and the IPM motor can be operated. The general-purpose motor driving setting can be switched to IPM driving setting by only one setting.

More information

FR-E700

FR-E700

Achieving the top level of driving performance in compact body, the inverter became more powerful.
Advanced magnetic flux vector control enables accurate start-ups of general-purpose industrial machines.

More information

FR-D700

FR-D700

Improved reliability and easy maintenance.
Spring clamp terminals provide high reliability and easy wiring.
The inverter with the safety stop function can comply with the safety standards without incurring too much expenses.

More information

Main series

FR-A800 series

High-functionality, high-performance inverter

  •  · Realize even higher responsiveness during real sensor-less vector control or vector control, and achieve faster operating frequencies.
  •  · The latest automatic tuning function supports various induction motors and also sensor-less PM motors.
  •  · The standard model is compatible with EU Safety Standards STO (PLd, SIL2). Add options to support higher level safety standards.

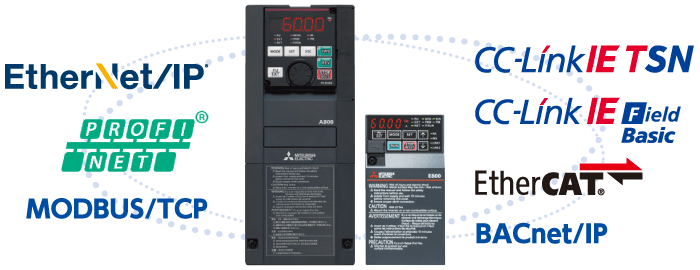

  •  · Control and monitor inverters via CC-Link/CC-Link IE Field Network (option interface).
Inverter capacity 200V class: 0.4kW to 90kW, 400V class: 0.4kW to 500kW
Control method High-carrier frequency PWM control (Select from V/F, advanced magnetic flux vector, real sensorless vector or PM sensorless vector control), vector control (when using options)
Output frequency range 0.2 to 590Hz (upper limit is 400Hz when using advanced magnetic flux vector control, real sensorless vector control, vector control or PM sensorless vector control)
Regenerative braking torque
(Maximum allowable duty)
200V class: 0.4K to 1.5K (150% at 3%ED) 2.2K/3.7K (100% at 3%ED) 5.5K/7.5K (100% at 2%ED) 11K to 55K (20% continuous) 75K or more (10% continuous), 400V class: 0.4K to 7.5K (100% at 2%ED) 11K to 55K (20% continuous) 75K or more (10% continuous)
Starting torque 200% 0.3Hz (3.7K or less), 150% 0.3Hz (5.5K or more) (when using real sensorless vector, vector control)

FR-A800 Plus series

Dedicated inverter for specialized fields

  •  · The optimum functions for each dedicated field are added to the already high performance and high functionality of FR-A800 series inverter.
  •  · Specialized ladder logic program allows an easy system construction.
  •  · Achieved the faster response and running frequency of Real sensorless vector control and vector control.
  •  · The newly developed auto tuning function enables operation of induction motors and sensorless operation of PM motors.
Inverter capacity 200 V class: 0.4 kW to 90 kW, 400 V class: 0.4 kW to 500 kW
Control method High carrier frequency PWM control (selectable among V/F control, Advanced magnetic flux vector control, Real sensorless vector control, PM sensorless vector control), vector control (when the option is used)
Output frequency range 0.2 to 590 Hz (400 Hz or less under Advanced magnetic flux vector control, Real sensorless vector control, vector control, and PM sensorless vector control.)
Regenerative braking torque 200 V class: 0.4K to 1.5K (150%, 3% ED), 2.2K/3.7K (100%, 3% ED), 5.5K/7.5K (100%, 2% ED), 11K to 55K (20% continuous), 75K or higher (10% continuous) 400 V class: 0.4K to 7.5K (100%, 2% ED), 11K to 55K (20% continuous), 75K or higher (10% continuous)
Starting torque 200% 0.3Hz (3.7K or lower), 150% 0.3Hz (5.5K or higher) (under Real sensorless vector control or vector control)

FR-F800 series

Energy saving inverter for fans and pumps

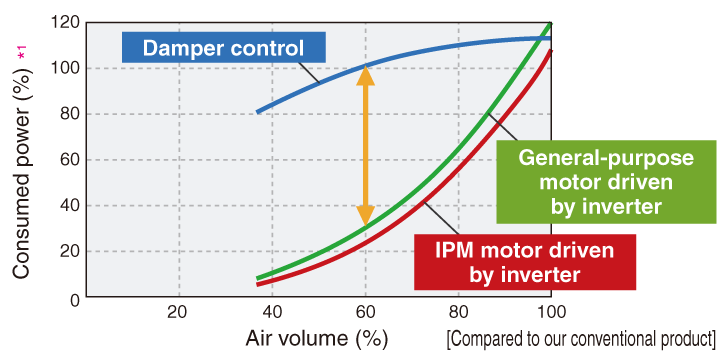

  •  · The Advanced optimum excitation control provides a large starting torque and enables an energy saving operation during constant-speed operation.
  •  · The inverter facilitates energy saving drive by storing the motor constants of the high-performance energy-saving motor and the premium high-efficiency IPM motor.
  •  · Enhanced PID control expands the scope of applications as an ideal function for fans and pumps.
  •  · CC-Link/CC-Link IE Field (option) allows the inverter to be operated or monitored from a controller via network.
Inverter capacity 200 V class: 0.75 kW to 110 kW, 400 V class: 0.75 kW to 560 kW
Control method High carrier frequency PWM control (selectable between V/F control and Advanced magnetic flux vector control), and PM motor control
Output frequency range 0.2 to 590 Hz (400 Hz or less under Advanced magnetic flux vector control and PM motor control.)
Starting torque 120% 0.5 Hz (Advanced magnetic flux vector control), 50% (PM motor control)

FR-F700PJ series

Compact inverter for fans and pumps

  •  · Both the general-purpose motor and the IPM motor can be operated. The general-purpose motor driving setting can be switched to IPM driving setting by only one setting.
  •  · A line up of Filterpack models is available and the option wiring, which was necessary in the past, is no longer required.
  •  · Filterpack also enables compliance with the Architectural Standard Specifications (2013 revision) supervised by the Ministry of Land, Infrastructure, Transport and Tourism of Japan.
  •  · Provides the controls that are optimum for fan and pump applications (PID control, Optimum excitation control, regeneration avoidance, and automatic restart after instantaneous power failure).
Inverter capacity 200 V class/400 V class: 0.4 kW to 15 kW
Control method V/F, Optimum excitation control, General-purpose magnetic flux vector control, IPM motor control.
Output frequency range General-purpose motor: 0.2 to 400 Hz
IPM motor control: 0 to 135 Hz
Regenerative braking torque General-purpose motor: 15%
IPM motor control: 5% (10% for 1.5K or less)
Starting torque General-purpose motor control (when General-purpose magnetic flux vector control and slip compensation are enabled): 120% (at 1 Hz)
IPM motor control: 50%

FR-E700 series

Simple and powerful compact inverter

  •  · Advanced magnetic flux vector control enables accurate start-ups of general-purpose industrial machines.
  •  · USB connection facilitates easy setting with FR Configurator from a personal computer.
  •  · The inverter with the safety stop function can comply with the safety standards without incurring too much expenses.
  •  · Supports RS-485 communication as standard, can be compatible with CC-Link communication when the option is used, and FL remote communication model is also available.
Inverter capacity Three phase 200 V: 0.1 kW to 15 kW, three phase 400 V: 0.4 kW to 15 kW
Single phase 200 V: 0.1 kW to 2.2 kW, single phase 100 V: 0.1 kW to 0.75 kW
Control method Soft-PWM control, high carrier frequency PWM control (selectable among V/F control, General-purpose magnetic flux vector control, Advanced magnetic flux vector control, Optimum excitation control)
Output frequency range 0.2 to 400 Hz
Regenerative braking torque 0.1K/0.2K: 150%, 0.4K/0.75K: 100%, 1.5K: 50%, 2.2K or higher: 20%
Starting torque 200% 0.5 Hz (3.7K or lower) 150% 0.5 Hz (5.5K or higher) when Advanced magnetic flux vector control is set
Communication specifications RS-485 communication is supported as standard (Mitsubishi inverter protocol, MODBUS®RTU), CC-Link, PROFIBUS-DP, DeviceNet™, LONWORKS® are supported when the option is used, and FL remote communication model and CC-Link communication model are also available.

FR-D700 series

Easy and compact inverter

  •  · The General-purpose magnetic flux vector control and the auto tuning function enable reliable operation in applications that require a large starting torque.
  •  · Setting can be made easily from a personal computer with FR Configurator.
  •  · Spring clamp terminals provide high reliability and easy wiring.
  •  · The inverter with the safety stop function can comply with the safety standards without incurring much expenses.
Inverter capacity Three phase 200 V: 0.1 kW to 15 kW, three phase 400 V: 0.4 kW to 15 kW
Single phase 200 V: 0.1 kW to 2.2 kW, single phase 100 V: 0.1 kW to 0.75 kW
Control method Soft-PWM control, high carrier frequency PWM control (selectable among V/F control, General-purpose magnetic flux vector control, Optimum excitation control)
Output frequency range 0.2 to 400 Hz
Regenerative braking torque 0.1K/0.2K: 150%, 0.4K/0.75K: 100%, 1.5K: 50%, 2.2K or higher: 20%
Starting torque 150% 1Hz, 200% 3Hz (3.7K or lower) when General-purpose magnetic flux vector control and slip compensation are set
Communication specifications RS-485 is supported as standard (Mitsubishi inverter protocol, MODBUS®RTU)
