Human-Machine Interfaces (HMIs)-GOT GOT2000 Series
Unchallenged cost performance
A wide variety of specifications suit every system design
Communication interfaces such as Ethernet, RS-232, RS-422/485,USB host/device and SD memory
card are standard features.
Advanced interactive features such as data logging, multi-channel communication, and FA transparent function
are supported.
| Item | Specifications |
|---|---|
| Display | 8.4"/10.4", TFT color LCD, 65536 colors |
| Resolution | VGA |
| Backlight | White LED |
| User memory | Memory for storage (ROM): 9 MB Memory for operation (RAM): 9 MB |
| Standard interface | Ethernet, RS-232, RS-422/485 USB host (USB-A): 1 channel (USB 1.1 (Full-Speed 12 Mbps)) USB device (USB Mini-B): 1 channel (USB 1.1 (Full-Speed 12 Mbps)) SD memory card interface |

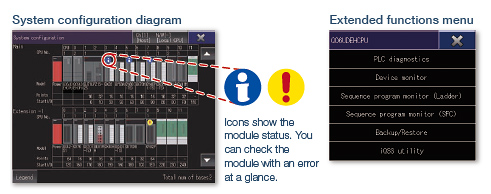

Use the System Launcher function and quickly check the system status!
A graphical system configuration diagram indicates module statuses.
When you touch a module the extended function list is shown and you can carry out maintenance work
efficiently.

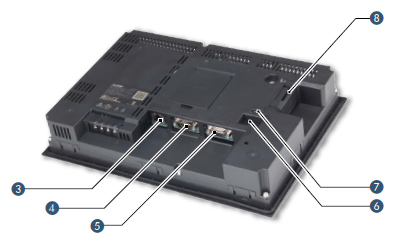

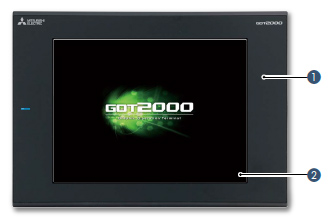

GT23 model external appearance [Standard model: front face/rear face]
| ①Simple design | The simple design with a linear motif is sleek and complements any machine design. |
|---|---|
| ②Flat body | The front flat screen is easy to clean. (USB interface is on the back.) |
| ③Ethernet interface | Use Ethernet to simultaneously connect up to two types of industrial devices from different
manufacturers. CC-Link IE Field Network Basic compatible devices can also be connected. |
| ④RS-232 interface | Connect to various industrial devices, barcode readers and serial printers. |
| ⑤RS-422/485 interface | Connect to various industrial devices and barcode readers. |
| ⑥USB interface: device (USB Mini-B) | Connect to a personal computer and transfer data. |
| ⑦USB interface: host (USB-A) | Transfer project data or read the data (logging data, etc.) to or from the GOT using the USB
memory. A USB mouse, keyboard, barcode reader*, or RFID reader* can also be connected. *USB keyboard (HID) compatible model only |
| ⑧SD memory card interface | Save large volumes of data, including alarms and logging data. |
Easily collect log data and display it in graphs and lists
Use the GOT to collect data from the programmable controller and temperature controllers. The data can be displayed in graphs and lists. It can also be exported to a personal computer for further analysis. The logging data can be saved in the built-in SRAM even if the power fails.
GT23 model product map
