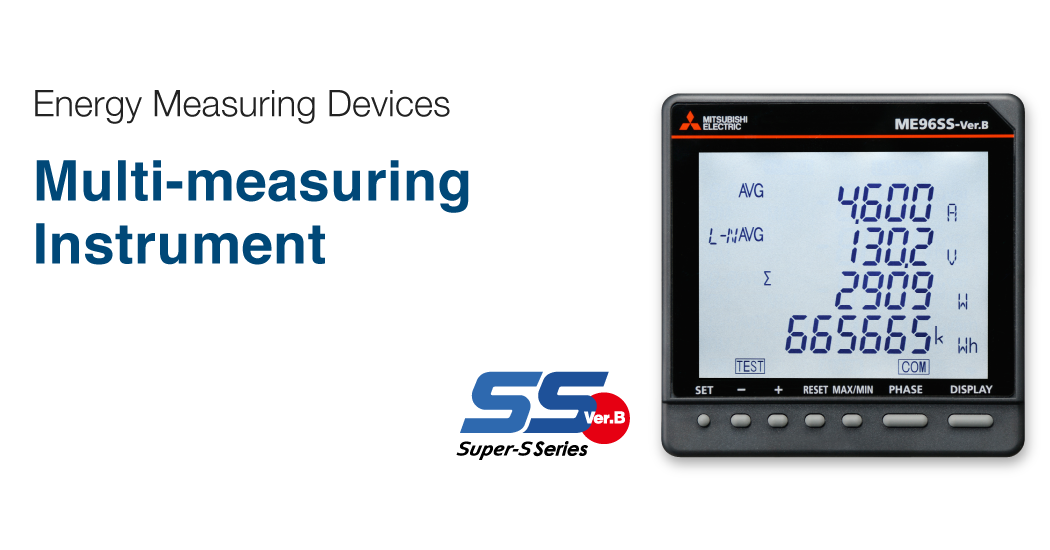

Electronic Multi Measuring Instruments (ME96 Series)

Product Lineup

Click here for catalog to see specification

Model name Transmission/Option specifications Main measurement Items
ME96SSHA-MB
(High-performance class)
MODBUS® RTU communication
Plug-in module (options)
  • Analog/Pulse/Contact output/input
  • CC-Link communication
  • Digital input/output (for MODBUS® RTU communication)
  • Backup (on SD card)
  • MODBUS® TCP communication
A, DA, V, Hz = ±0.1%
W, var, VA, PF = ±0.2%
Wh = class 0.5S (IEC62053-22)
varh = class 1S (IEC62053-24)
Harmonics = 31st-deg (max)
Rolling demand = W, var, VA
ME96SSRA-MB
(Standard class)
MODBUS® RTU communication
Plug-in module (options)
  • Analog/Pulse/Contact output/input
  • CC-Link communication
  • Digital input/output (for MODBUS® RTU communication)
  • Backup (on SD card)
  • MODBUS® TCP communication
A, DA, V = ±0.2%
Hz = ±0.1%
W, var, VA, PF = ±0.5%
Wh = class 0.5S (IEC62053-22)
varh = class 1S (IEC62053-24)
Harmonics = 19th-deg (max)
Rolling demand = W, var, VA
ME96SSEA-MB
(Economy class)
MODBUS® RTU communication A, DA, V = ±0.5%
Hz = ±0.2%
W, PF = ±0.5%
Wh = class 0.5S (IEC62053-22)
Harmonics = Only total

Optional Plug-in Modules

Model name Analog output Pulse/Alarm output Contact input Contact output Transmission function Used with
ME-4210-SS96 4 2 1 - - ME96SSHA-MB
ME96SSRA-MB
ME-0040C-SS96 - - 4 - CC-Link
ME-0052-SS96 - - 5 2 -
ME-0000BU-SS96 - - - - SD CARD
ME-0000MT-SS96 - - - - MODBUS® TCP

Note: Optional Plug-in Module can not be used with ME96SSEA-MB.

Features

One device has multifunction

ME96SS series can replace several measuring devices with one device.

ME96SS has multifunction

Clear display

Each measuring items can be displayed by a bar graph. With bar graph display, one can grasps the rated value and percentage against the alarm value instantly.

display

High measuring accuracy

  Economy model Standard model High-spec model
After
improvement
After
improvement
After
improvement
Model ME96SSEA-MB ME96SSRA-MB ME96SSHA-MB
Measurement
items and
accuracy
Active energy Class0.5S Class0.5S Class0.5S
Reactive energy - Class1S Class1S
Power factor ±0.5% ±0.5% ±0.2%
Harmonic ±2.0%
THD
±1.0%
(Up to 19th)
±1.0%
(Up to 31st)
Demand A (thermal) A (thermal),
W, var, VA (rolling)
A (thermal),
W, var, VA (rolling)

Data backup

There is an optional module which can retain data even when communication cannot be established.

Data backup

Network

ME96SS has MODBUS® RTU(RS-485) communication function as standard. Also there are available optional modules usable CC-Link communication and MODBUS® TCP communication in an Ethernet network.

Network

Remote I/O

Use the ME96SS Ver.A Series (SSRA/SSHA) to remotely interface with local devices such as ACBs. This allows users advanced contral without having to deploy secondary control devices.

  • Attachment of ME-0052-SS96 (optional) enables remote monitoring of the contact input signal and on/off control of the contact output signal.
  • Digital input signals can be latched for over 30ms, and there is no need for external latch circuits.

Remote I/O
