High Voltage IGBT

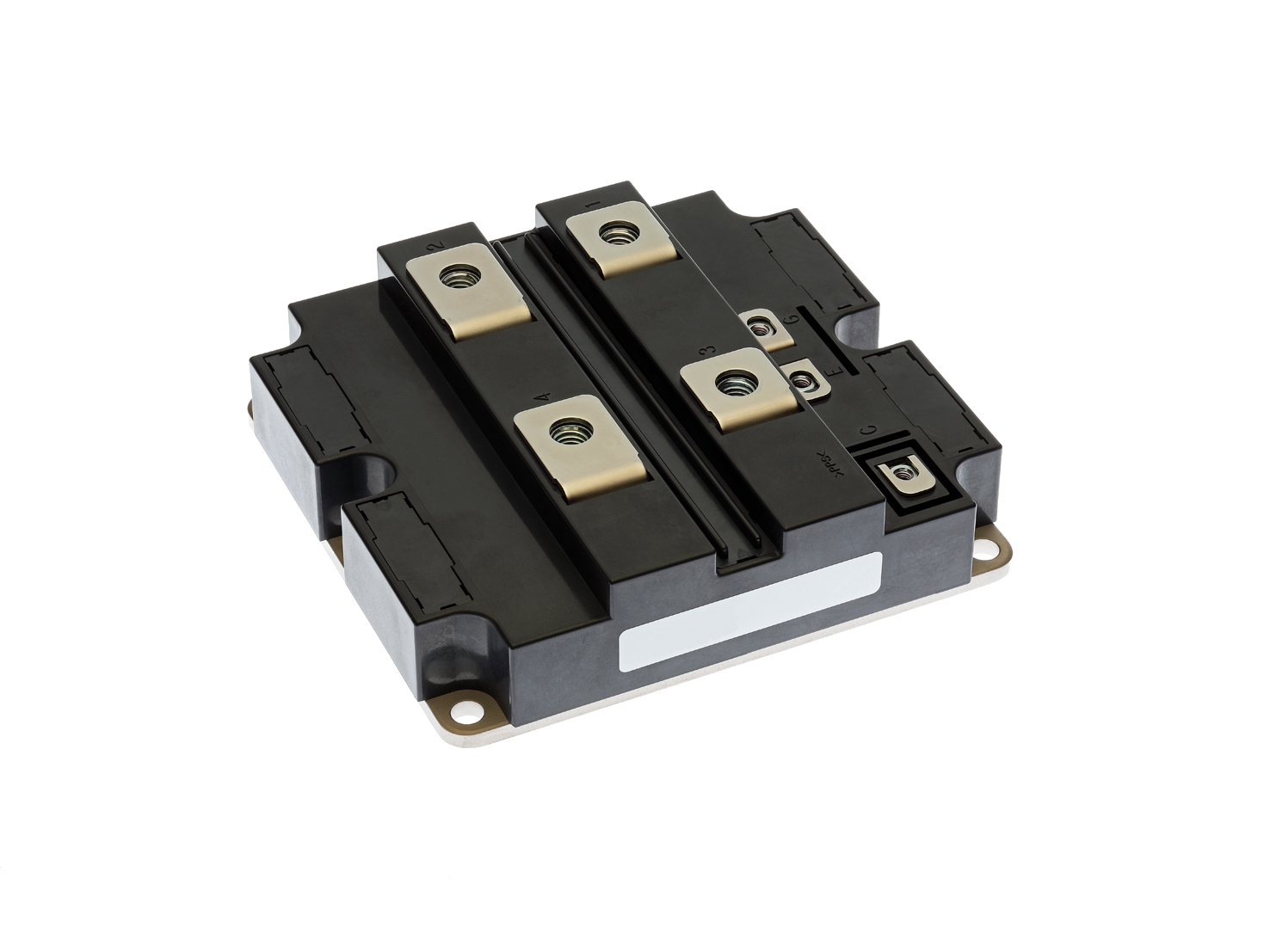

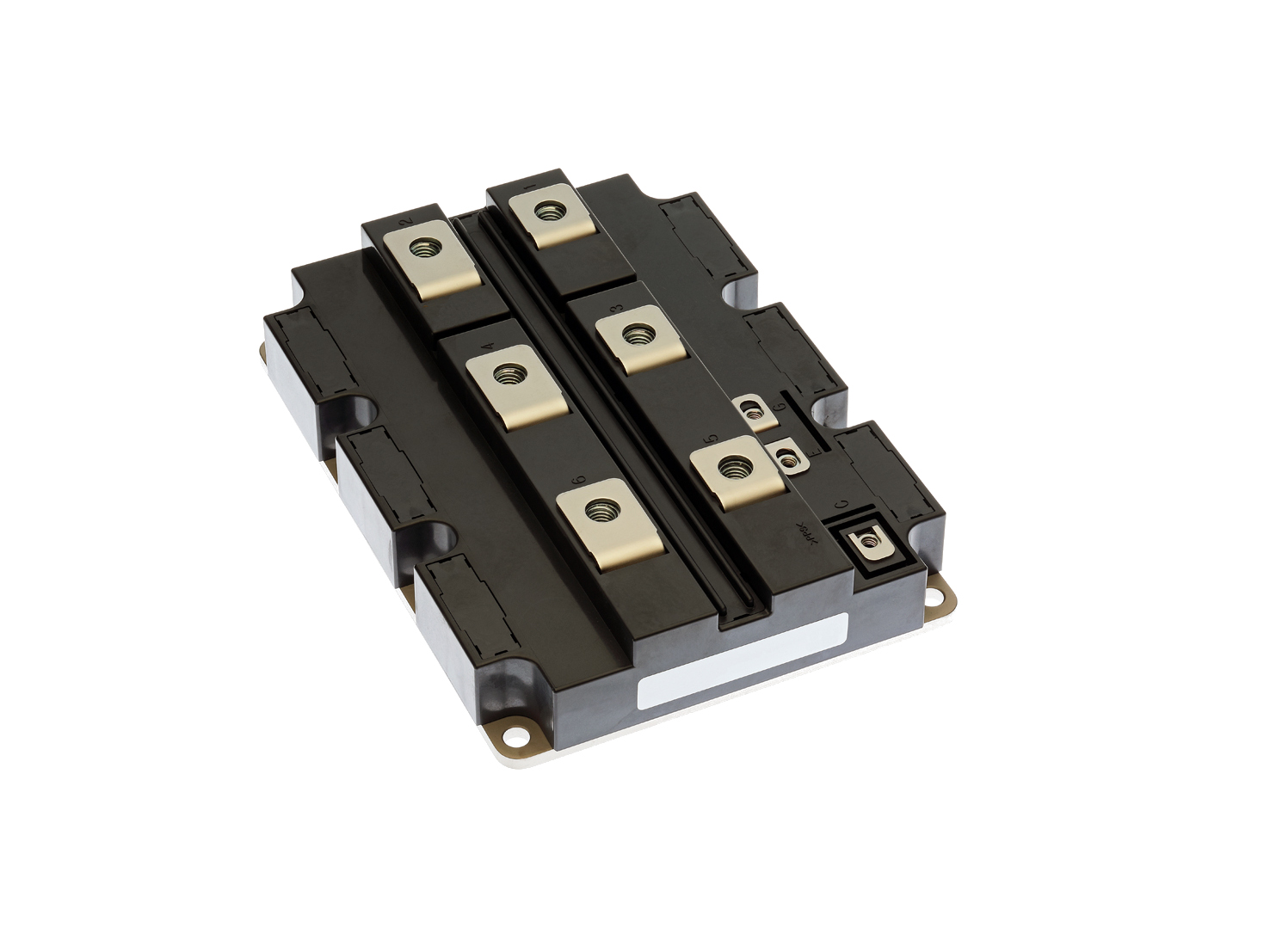

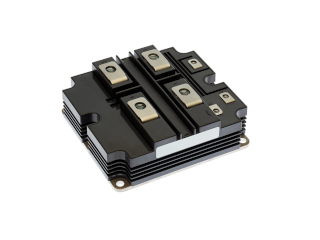

HVIGBT module X-Series std type

We offer a lineup of HVIGBT modules to meet market requirements for higher efficiency, downsizing and weight reduction, and smaller drive circuits in systems for power electronics equipment such as railway traction and large industrial machinery that require high withstand voltage and high current.

Features

Reduces power loss by equipping a 7th generation IGBT and RFC^*1 diode
Contributes to the downsizing of inverters by reducing the external size by approximately 33% with the same withstand voltage and rated current as conventional products^*2
Optimization of package internal structure has improved heat dissipation, moisture resistance, and flame retardance for a longer product life

※1：Relaxed Field of Cathode: Mitsubishi Electric’s original diode that optimizes electron mobility on the cathode side
※2：Comparison of the X Series 1200HC-66X and the H Series CM1200HC-66H

Applications

Railway Traction
Power Transmission
Power Supply/UPS
Motion Control

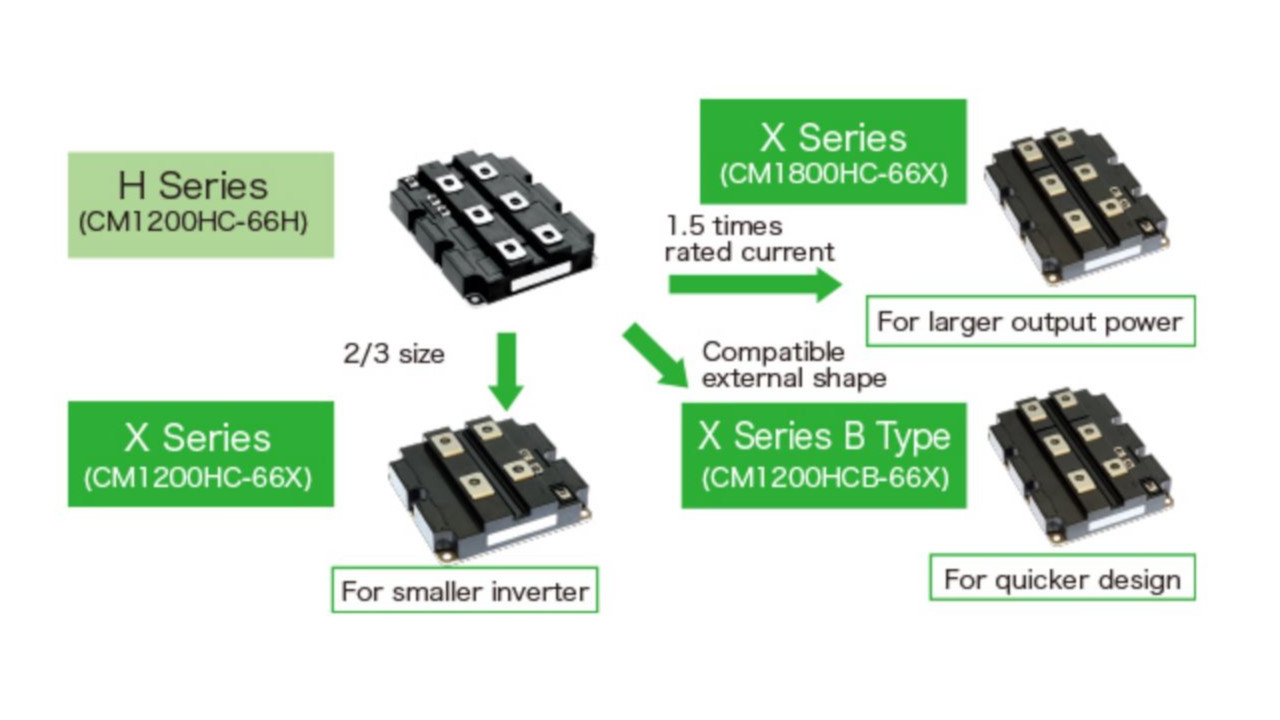

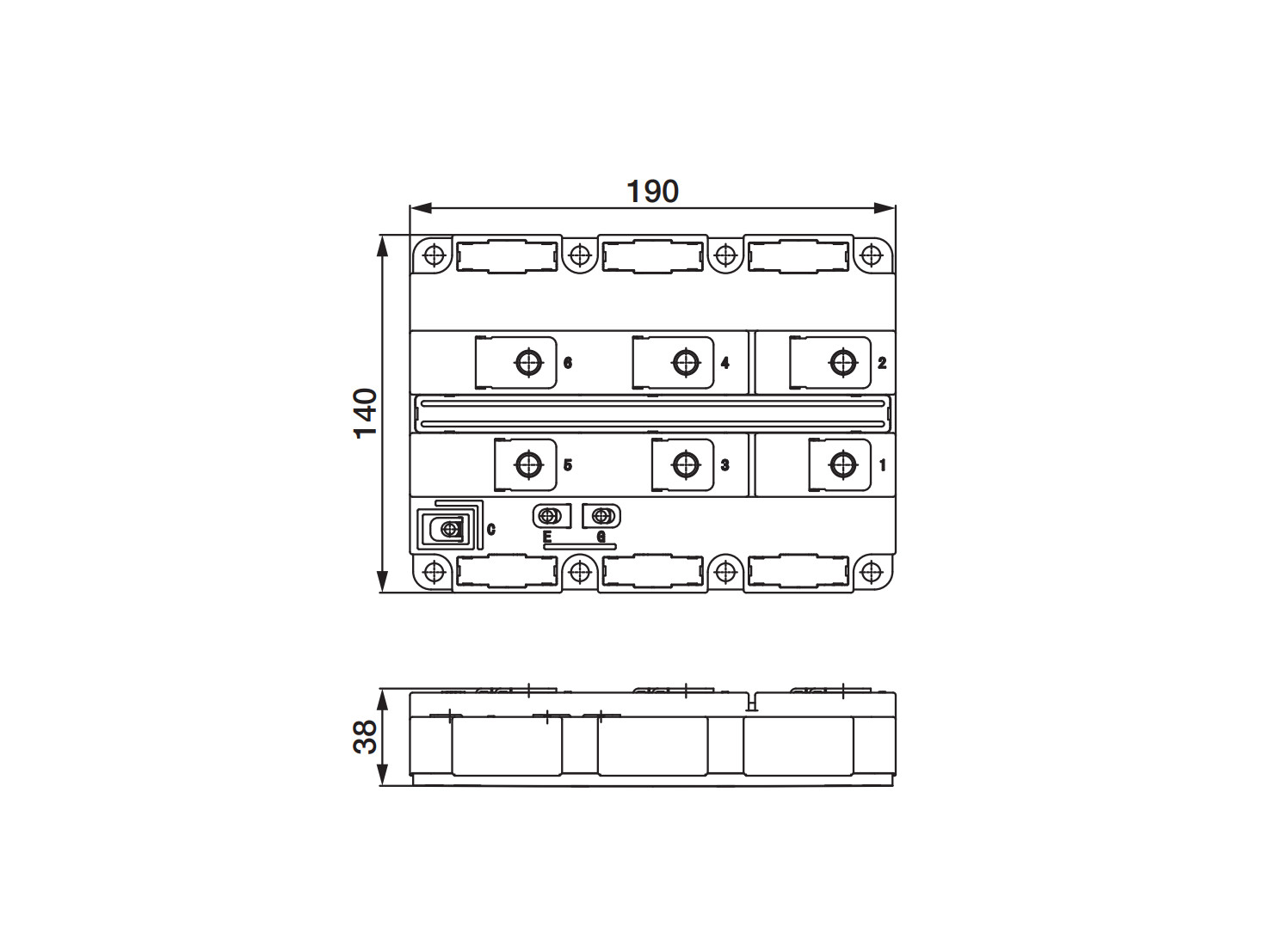

Replacement of conventional series

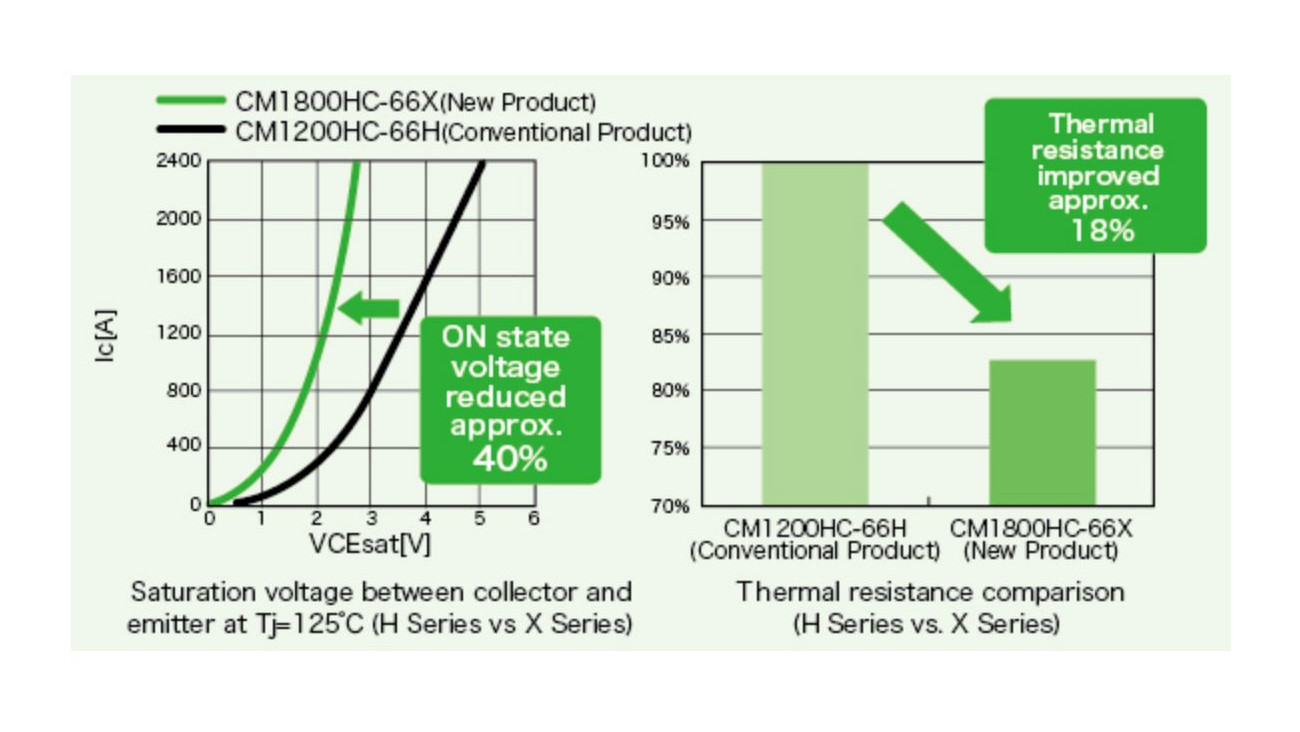

Characteristics graph

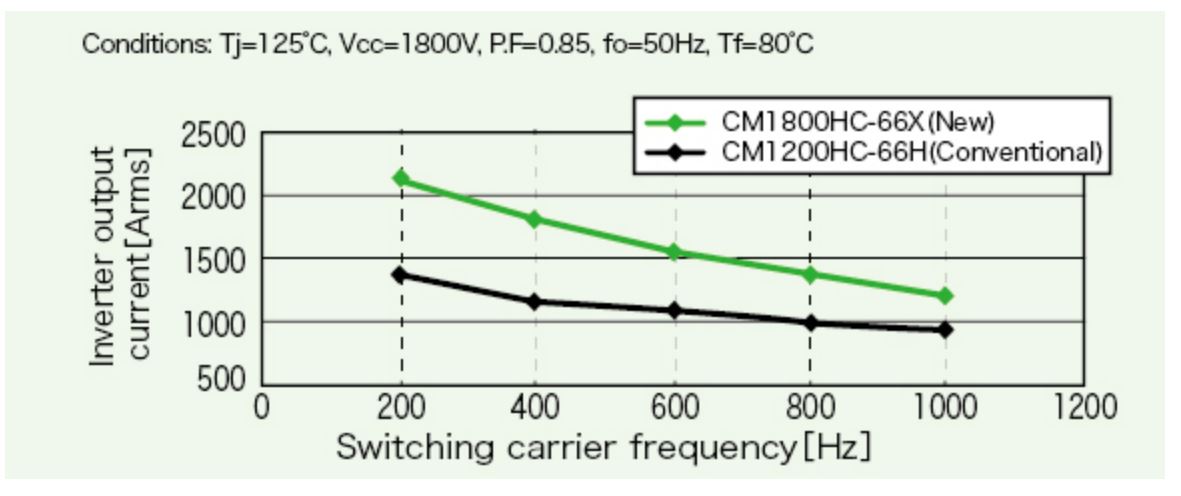

Output current characteristics

lineup

I_C (A)	V_CES=1700V		V_CES=3300V		V_CES=4500V		V_CES=6500V

I_C (A)	Type name	Connection	Type name	Connection	Type name	Connection	Type name	Connection
600	-	-	-	-	-	-	CM600HG-130X	H
900	-	-	-	-	CM900HC-90X	H	CM900HG-130X	H
	-	-	-	-	CM900E2G-90X	E2	-	-
	-	-	-	-	CM900HG-90X	H	-	-
1000	-	-	-	-	CM1000HG-90X	H	CM1000HG-130XA	H
1200	-	-	CM1200HC-66X	H	-	-	-	-
1200	-	-	CM1200HCB-66X	H	-	-	-	-
1350	-	-	-	-	CM1350HC-90X	H	-	-
1350	-	-	-	-	CM1350HG-90X	H	-	-
1500	-	-	-	-	CM1500HC-90XA	H	-	-
1500	-	-	-	-	CM1500HG-90X	H	-	-
1800	-	-	CM1800HC-66X	H	-	-	-	-
1800	-	-	CM1800HG-66X	H	-	-	-	-
2400	CM2400HC-34X	H	-	-	-	-	-	-
2400	CM2400HCB-34X	H	-	-	-	-	-	-

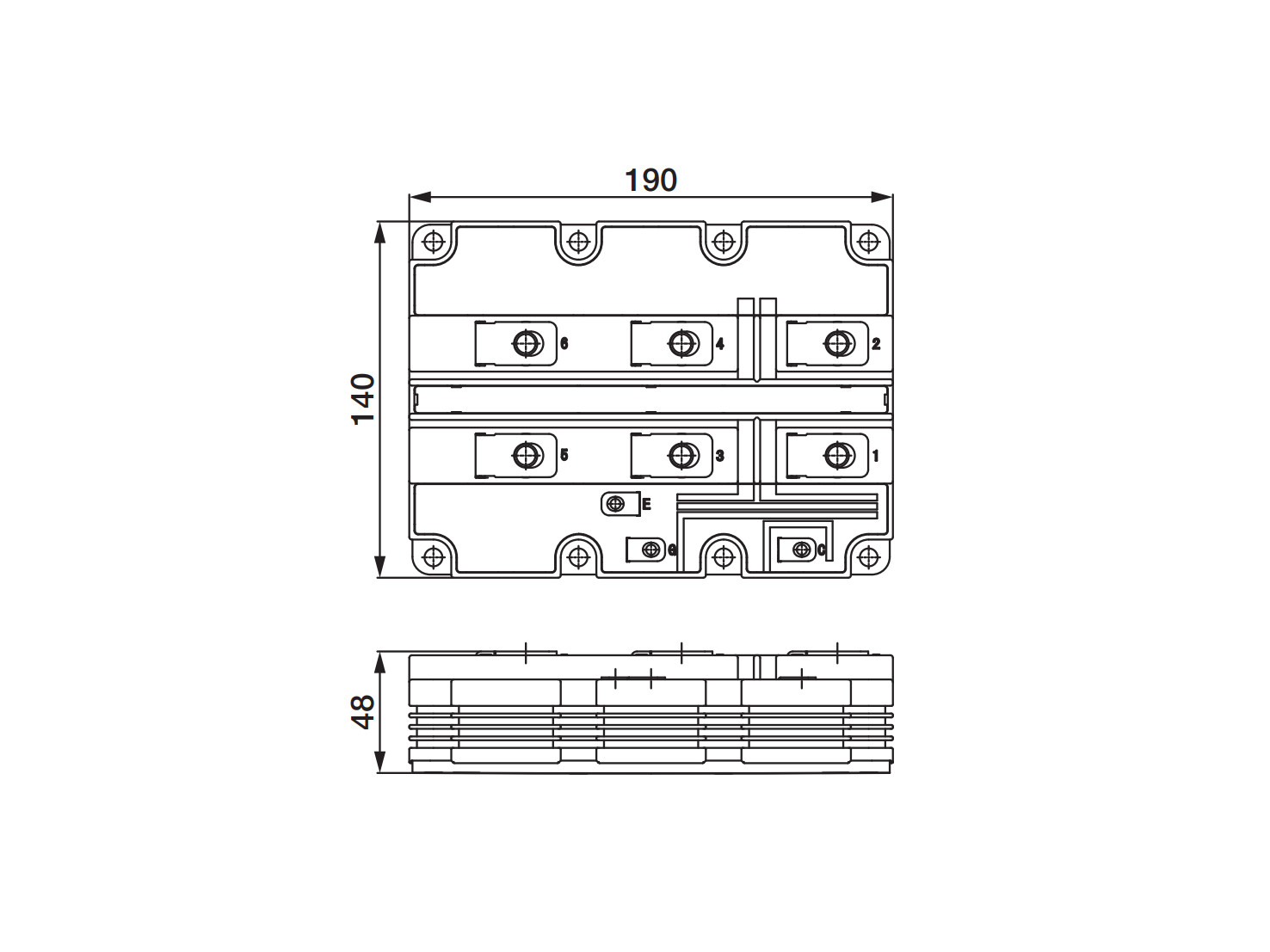

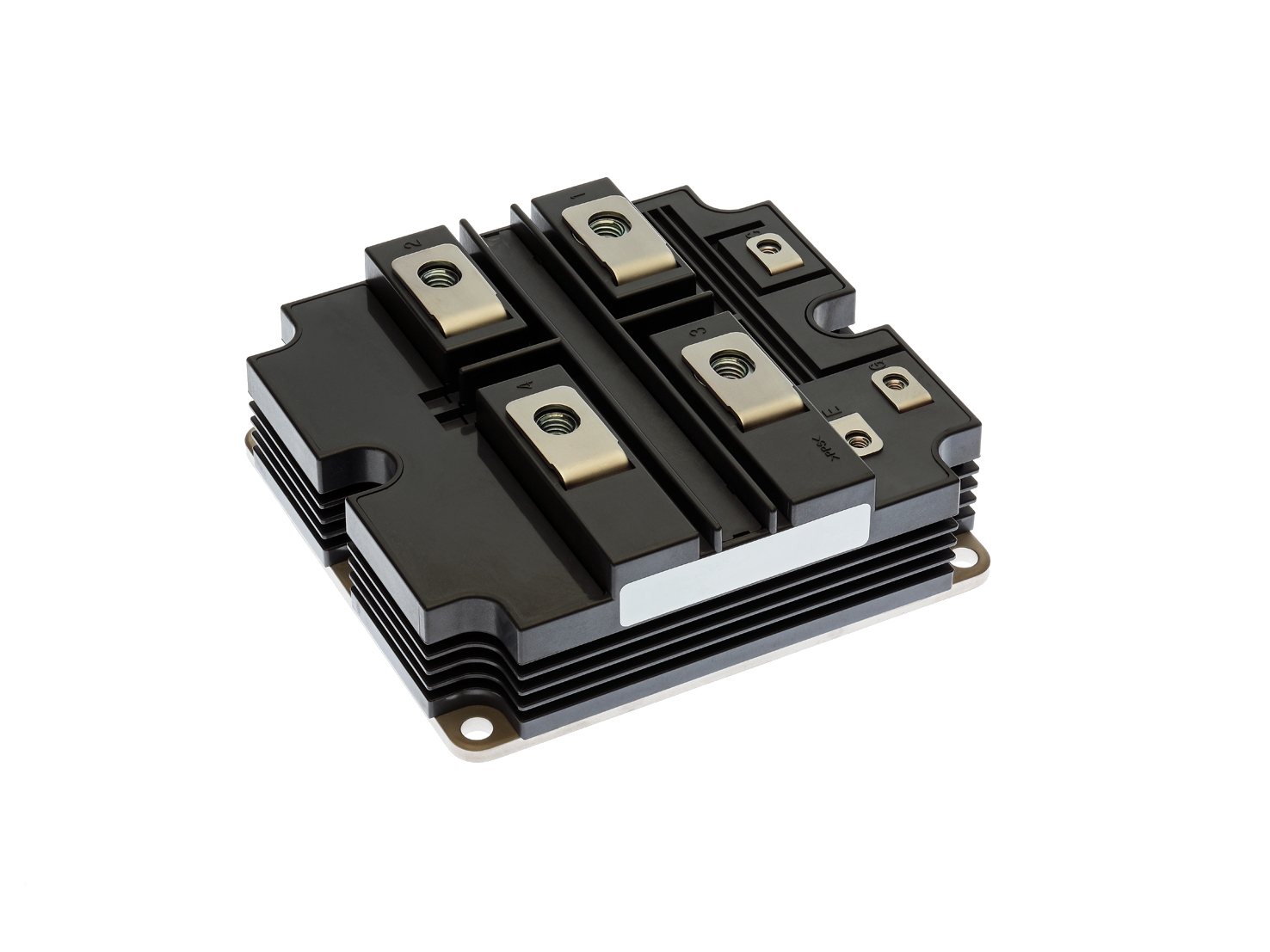

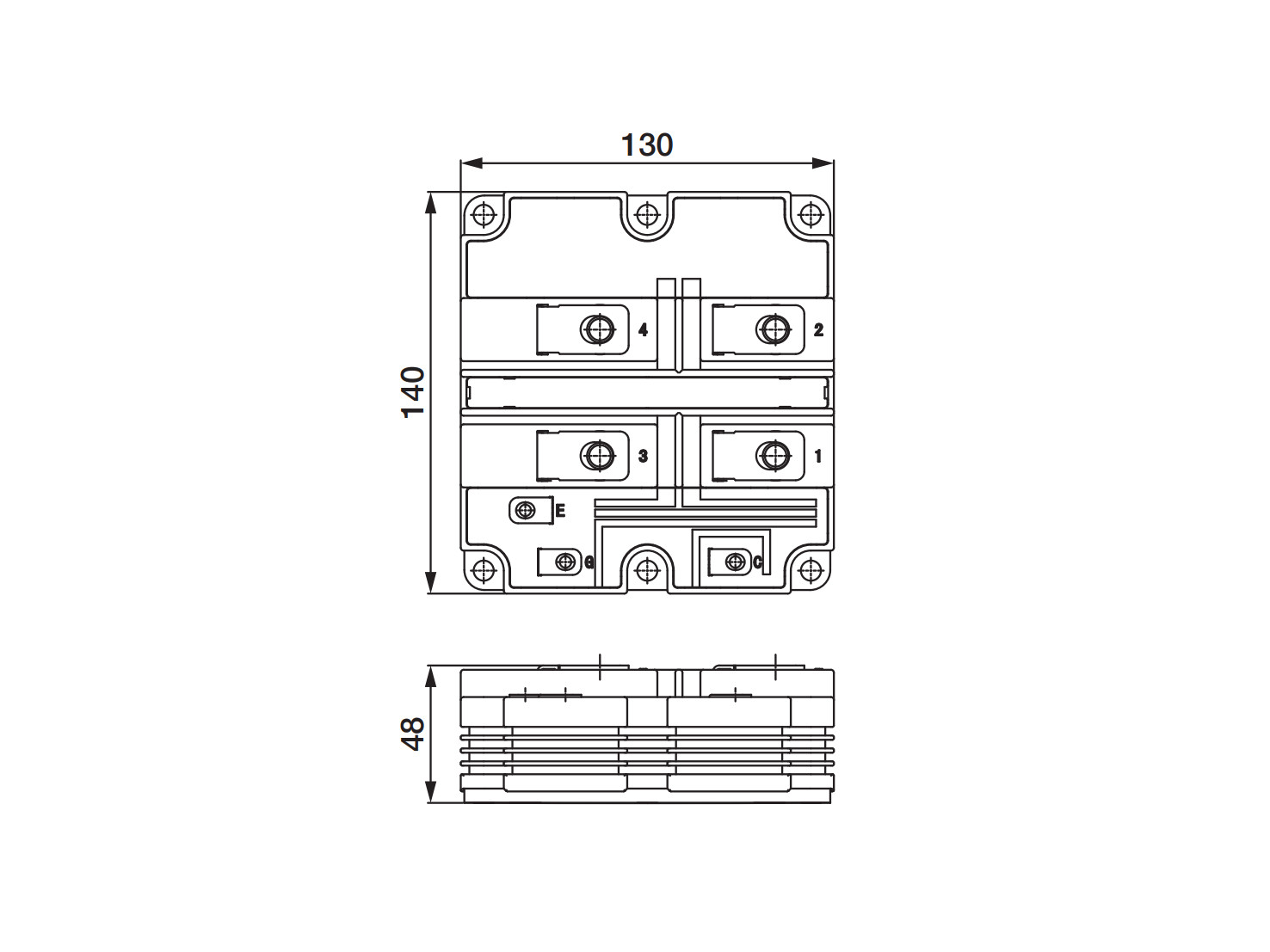

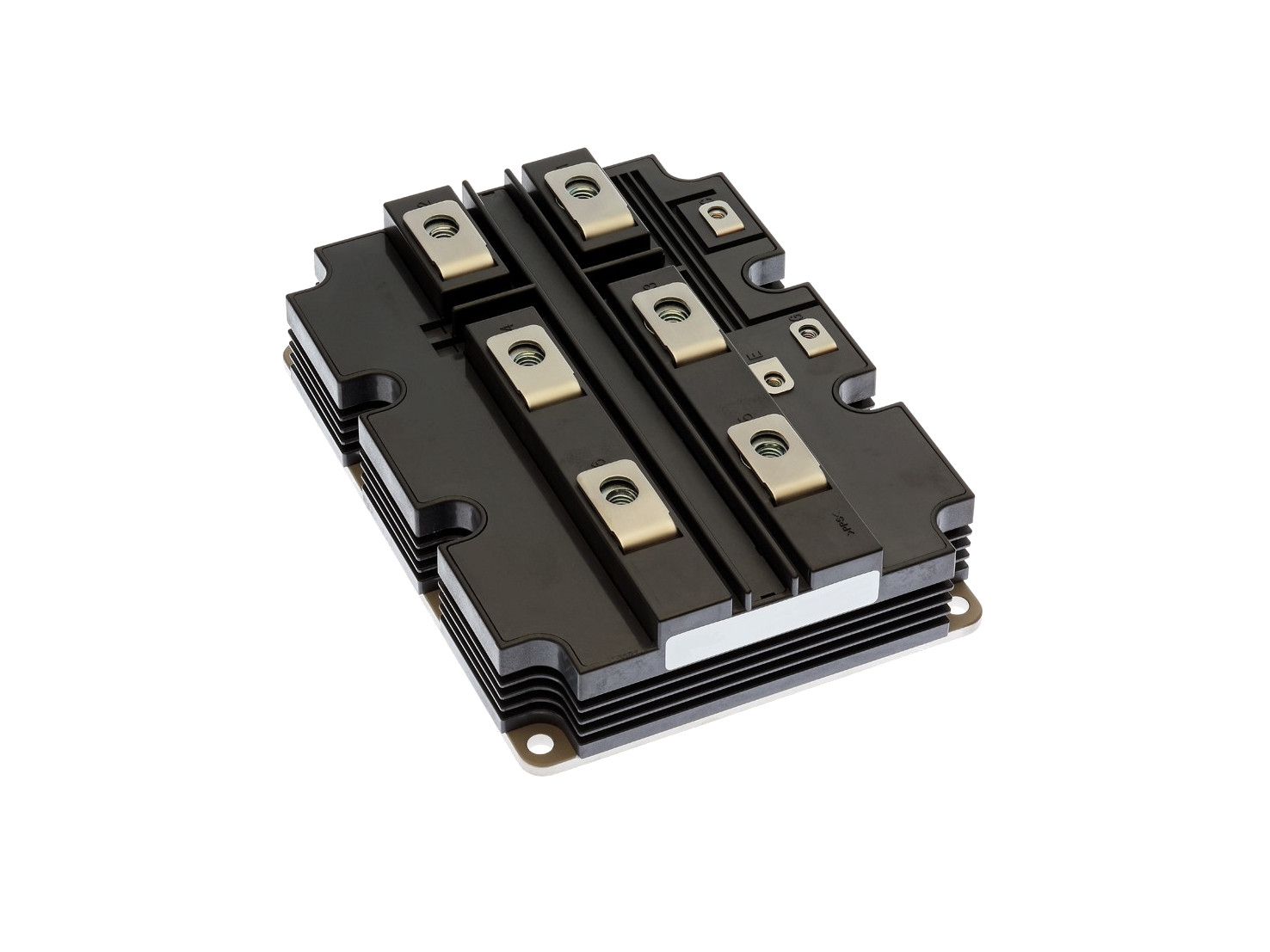

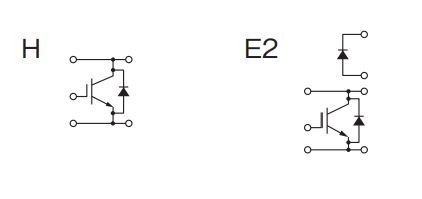

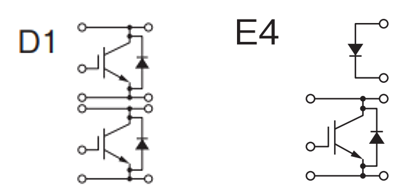

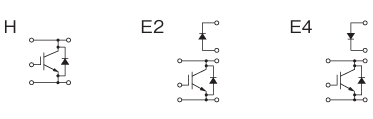

Connection
