Drive System Sizing Software Motorizer

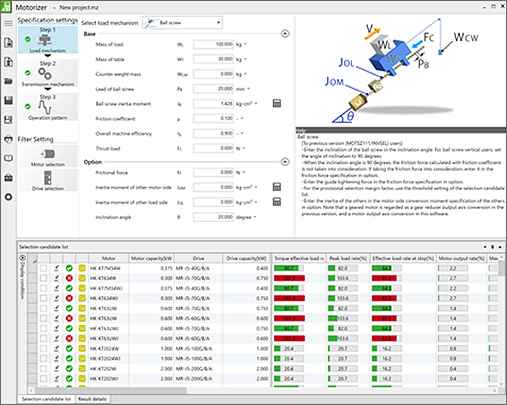

What is Drive System Sizing Software Motorizer?

Drive System Sizing Software Motorizer is software that enables you to select the most suitable servo motors for your machine just by setting the machine configuration/specifications and the operation patterns. This software offers a wide range of selectable drive options including sensorless servo and inverters in addition to AC servo.
The software is available for free download. Contact your local sales office for more details.

What is Drive System Sizing Software Motorizer?

Load Mechanism

Select a load mechanism from 14 common types.
Flexibly set an inclination angle of the load mechanisms, such as ball screws, rack and pinions, and conveyors.

[Ball screw]

Ball screw

[Rack and pinion]

Rack and pinion

[Roll feed]

Roll feed

[Rotary table]

Rotary table

[Cart]

Cart

[Elevator/hoist]

Elevator/hoist

[Conveyor]

Conveyor

[Fan]

Fan

[Pump]

Pump

[Crank]

Crank

[Winding/Unwinding]

Winding/Unwinding

[Generic (Rotary)]

Generic (Rotary)

[Generic (Linear)]

Generic (Linear)

[Linear servo]

Linear servo

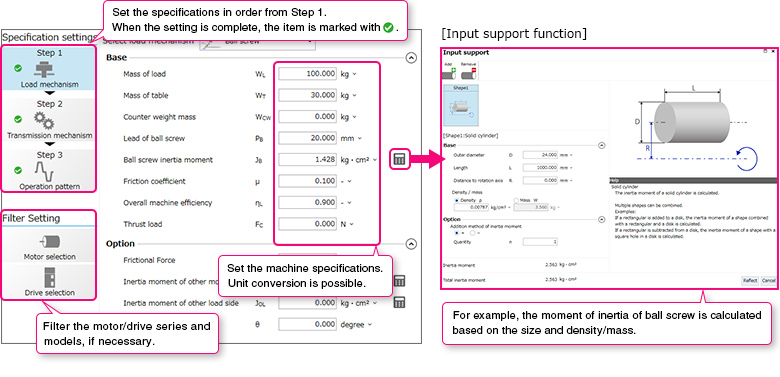

Selection Procedures

Follow the Step 1 to 3 on the left side.
For the items with Calculator icon , the input support function is available.

Selection Procedures

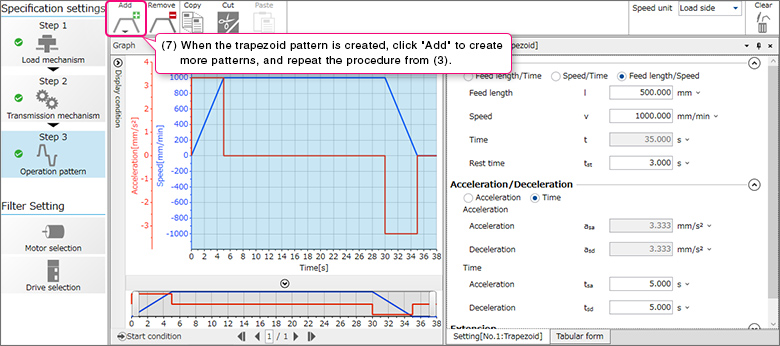

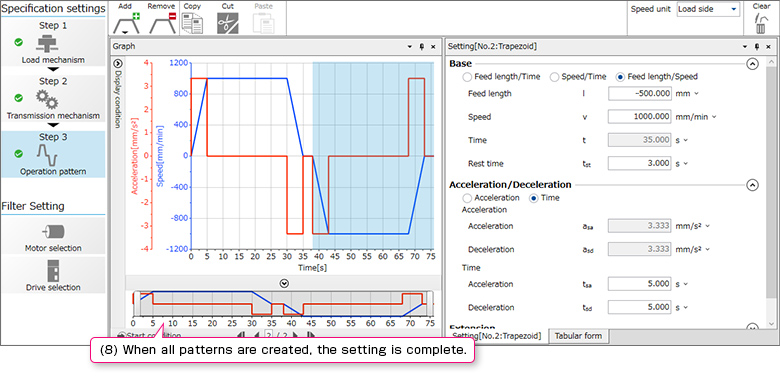

Setting Operation Patterns

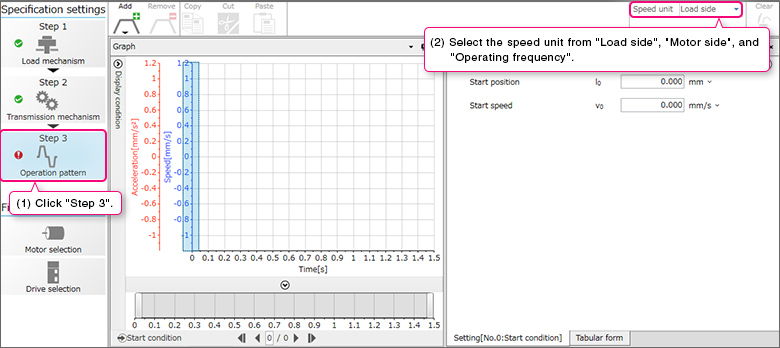

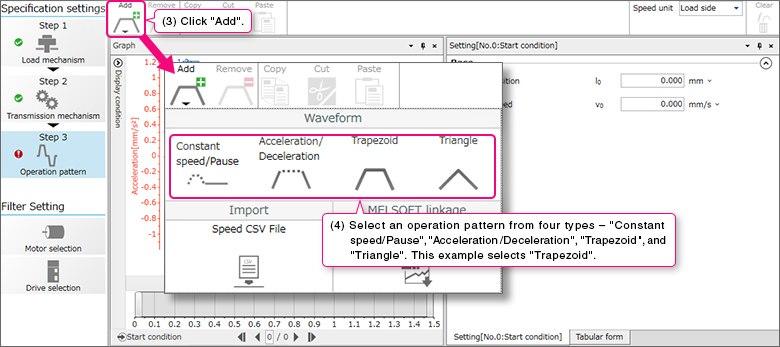

Setting Operation Patterns1-2

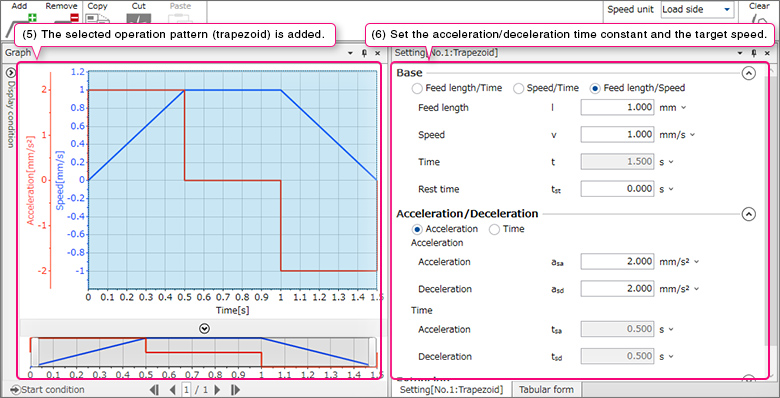

Setting Operation Patterns3-4
Setting Operation Patterns5-6
Setting Operation Patterns7
Setting Operation Patterns8

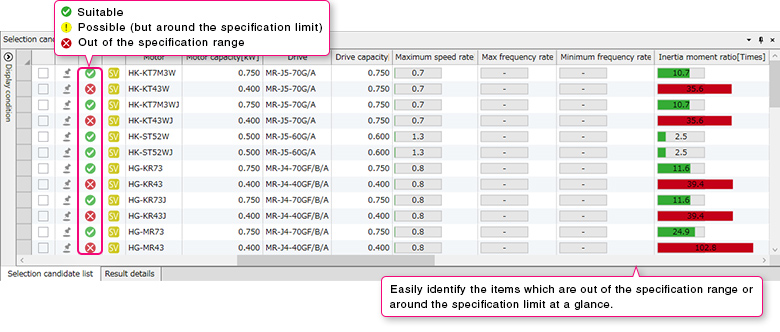

Sizing Results

When Steps 1 to 3 are complete, the selection result displays multiple possible options.
The result list shows multiple items at once such as motor and drive models, drive capacities, and calculation results of effective load ratio and moment of inertia.

Sizing Results

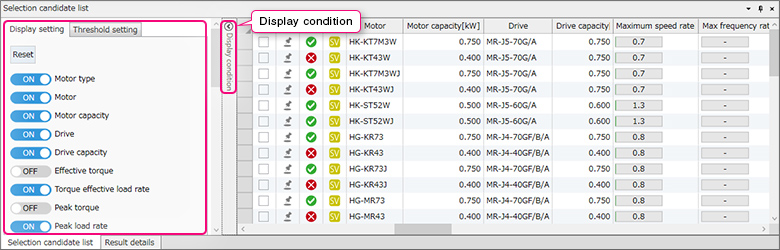

Click Display condition tab, and control the items displayed in the list by switching ON and OFF.

Condition tab

Tick a box, and click Result details tab to see the calculation results and restrictions, etc.

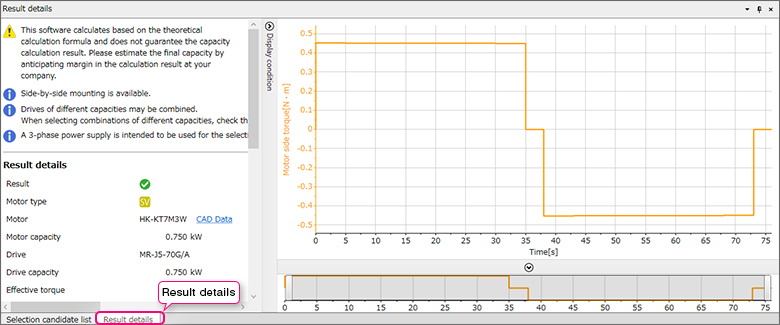

Result details tab

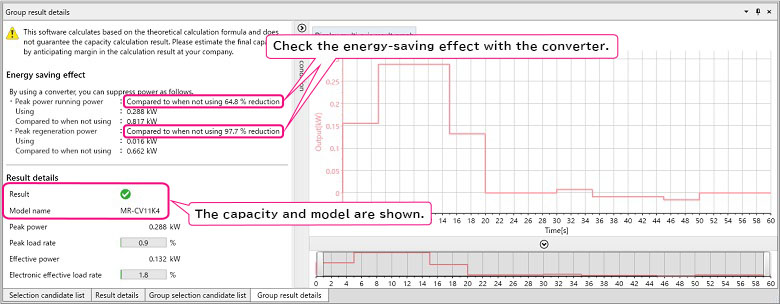

Multi-Axis System

When sizing a multi-axis system with a simple converter or a power regeneration common converter, the sizing result includes details such as the converter capacity and the model.

Multi-Axis System

Specifications and Operating Environment

Specifications

Item Description
Types of motor/drive Servo, Inverter, Sensorless servo
Types of load mechanism Ball screw, Rack and pinion, Roll feed, Rotary table, Cart, Elevator/Hoist, Conveyor, Fan, Pump, Crank,
Winding/Unwinding, Generic (Rotary), Generic (Linear), Linear servo
Types of transmission mechanism Coupling, External gear reducer, V belt and pulley, Toothed belt/roller chain
Operation pattern Constant speed/Pause, Acceleration/Deceleration, Trapezoid, Triangle, Speed CSV File, MELSOFT GX LogViewer file
Types of input support of moment of inertia calculation function Solid cylinder, Hollow cylinder, Disk, Rectangular solid, Truncated cone, Sphere, Generic
Sizing results Result, Motor type, Power supply voltage, Motor, Motor capacity, Drive, Drive capacity, Effective torque, Torque effective load rate, Peak torque, Peak load rate, Effective torque at stop, Effective load rate at stop, Motor output, Motor output rate, Maximum speed, Maximum speed rate, Maximum load inertia moment, Inertia moment ratio, Regenerative power, Regenerative load ratio, Regenerative option, Maximally increased torque, Rated speed, Brake, Oil seal, Structure specification, Graph of Motor side speed/Motor side torque/Motor output
Printing of output of results Prints load mechanism, transmission mechanism, operation pattern, and sizing results.
Data saving Load mechanism, transmission mechanism, operation pattern, motor selection, drive selection, and sizing results are saved with a file name.

Operating Environment (Note 1, 2)

Item Description
OS Microsoft® Windows® 11 (64-bit)
Microsoft® Windows® 10 (64-bit/32-bit)
.NET Framework .NET Framework 4.6 or later
CPU
(recommended)
Windows® 11 2 or more cores on a compatible 64-bit processor or System on a Chip (SoC)
Other than Windows® 11 Desktop PC: Intel® Celeron® processor 2.4 GHz or more
Laptop PC: Intel® Pentium® processor 1.9 GHz or more
Memory
(recommended)
Windows® 11 4 GB or more (64-bit OS)
Other than Windows® 11 1 GB or more (32-bit OS)
2 GB or more (64-bit OS)
Free hard disk space For installation: 1 GB or more free hard disk capacity
For operation: 512 MB or more free virtual memory capacity
Monitor Resolution 1024 × 768 or more (XGA)
Compatible with above personal computers
  • Notes: 1. This software may not run correctly on some personal computers.
  • 2. Surrogate pair characters and environment dependent characters are not available.
