RC1500 Spiral Type Air Compressor

This is the rotary air compressor using the spiral method which noise and vibration must be minimized for passenger comfort.

C92 Type Brake Operation Unit

Mounting and inspection are facilitated to a great extent by installing valves to control brake cylinder pressure, other pneumatic control valve, and cocks in a single location over the panel. Design and production can be made to order for each case, according to the requirements of the vehicle.

Spiral Type Air Compressor

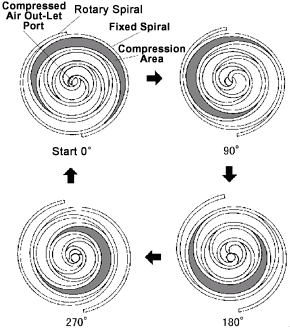

COMPRESSION MECHANISM

Specification (Model : RC1500)

Weight

:
370kg

Dimension

:
L 1,054mm

:
W 803mm

:
H 630mm

Rotary Speed

:
1,75r.p.m

Displacement

:
1,450l/min

Noise

:
68dB(at 1.5m side)
