Software Tools NC Configurator2

NC Parameter Setup

NC parameters required for NC control and machine operation can be edited on a computer.
Initial parameters can also be easily created by inputting the machine configuration.

Free version is limited in function
M800V M80V M800 M80 E80 C80 M700V M70V M700 M70 E70 C70

Overview

● It is difficult to set up each parameter according to the manual.

Easy setup using
NC Configurator2!

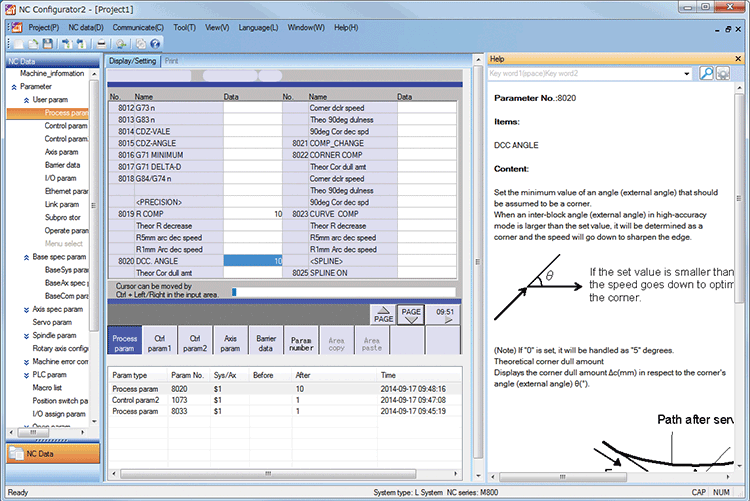

Check and set up the parameter list in a computer. | Check the contents of the parameters in the help section.

Enlarge image

Functions

  • NC parameter setting/search
  • Help (parameter explanation)
  • Offline comparison of parameter input/output
  • NC data input
  • Printing

The following are included in the full-mounted version.

  • Parameter initial setting wizard
  • Function parameters

Specifications

Supported OS Windows Ⓡ 8.1/Windows Ⓡ 10
Supports 32- and 64-bit OS (WOW64 available for 64-bit)
Languages English/Japanese/Simplified Chinese
CNC connections CNCs supported: M800V/M80V/M800/M80/E80/C80/M700V/M70V/M700/M70/E70/C70 Series
Connection configuration: Ethernet/RS-232C (parameter read/write in serial communication) /USB (C70 Series only)
Connectable CNCs: 8 (max.)
Precaution The free version has limited functions.
