Rangkaian CC-Link IE Field Basic
Modul Jarak Jauh Tipe Blok
Modul jarak jauh tipe Blok CC-Link IE Field Network Basic
- Stasiun jarak jauh CC-Link IE Field Network Basic. Modul ini berguna saat posisi pemasangan dekat dengan perangkat I/O diperlukan
- Mendukung fungsi diagnostik CC-Link IE Field Network Basic. Kesalahan jaringan dan kesalahan modul I/O dapat diperiksa menggunakan perangkat lunak teknik. Memungkinkan parameter CC-Link diatur dengan operasi sakelar sederhana
Modul masukan
Blok terminal penjepit pegas
| Model | Input type DC input |
Input points | Rated input voltage/current | Wiring type |
|---|---|---|---|---|

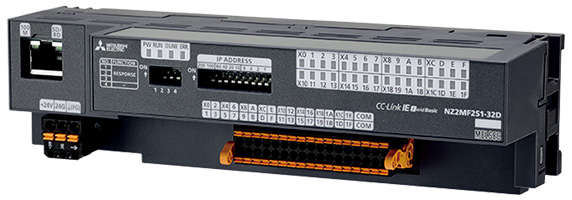

| NZ2MF2S1-32D | Positive common, Negative common | 32 points | 24 V DC (6 mA) | 1-wire |
| Model | Input type | Input points | Rated input voltage, frequency | Rated input current | Wiring type |
|---|---|---|---|---|---|
| NZ2MF2S2-16A | AC input | 16 points | 100…120 V AC, 50/60 Hz | 8.2 mA (100 V AC, 60 Hz) 6.8 mA (100 V AC, 50 Hz) |
2-wire |
Blok terminal sekrup
| Model | Input type DC input |
Input points | Rated input voltage/current | Wiring type |
|---|---|---|---|---|

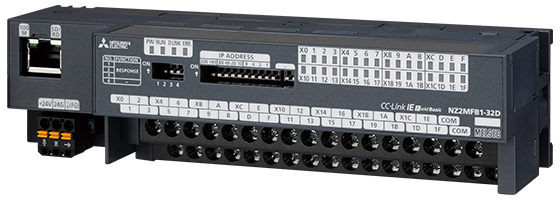

| NZ2MFB1-32D | Positive common, Negative common | 32 points | 24 V DC (6 mA) | 1-wire |
| Model | Input type | Input points | Rated input voltage, frequency | Rated input current | Wiring type |
|---|---|---|---|---|---|
| NZ2MFB2-16A | AC input | 16 points | 100…120 V AC | 8.2 mA (100 V AC, 60 Hz) 6.8 mA (100 V AC, 50 Hz) |
2-wire |
Modul Output
Blok terminal penjepit pegas

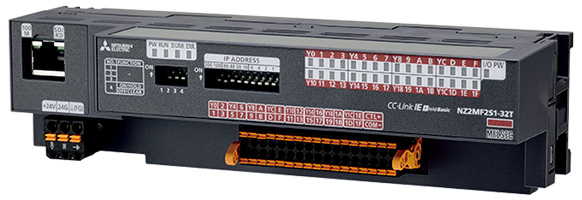

NZ2MF2S1-32T| Model | Output type Transistor output |
Output points | Rated load voltage/Max. load current | Wiring type |
|---|---|---|---|---|
| NZ2MF2S1-32T | Sink | 32 points | 12/24 V DC (0.5 A/point, 5 A/common) | 1-wire |
| NZ2MF2S1-32TE1 | Source | 32 points | 12/24 V DC (0.1 A/point, 2 A/common) | 1-wire |
| Model | Output type | Output points | Rated switching voltage/current | Wiring type |
|---|---|---|---|---|
| NZ2MF2S2-16R | Contact output | 16 points | 24 V DC (2 A), 240 V AC (2 A) | 2-wire |
Blok terminal sekrup

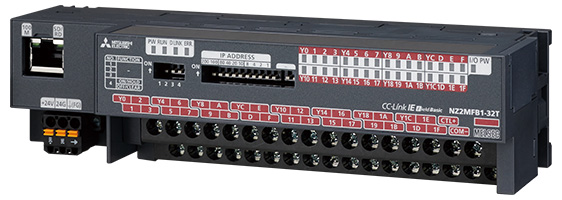

NZ2MFB1-32T| Model | Output type Transistor output |
Output points | Rated load voltage/Max. load current | Wiring type |
|---|---|---|---|---|
| NZ2MFB1-32T | Sink | 32 points | 12/24 V DC (0.5 A/point, 5 A/common) | 1-wire |
| NZ2MFB1-32TE1 | Source | 32 points | 12/24 V DC (0.1 A/point, 2 A/common) | 1-wire |
| Model | Output type | Output points | Rated switching voltage/current | Wiring type |
|---|---|---|---|---|
| NZ2MFB2-16R | Contact output | 16 points | 24 V DC (2 A), 240 V AC (2 A) | 2-wire |
Modul gabungan I/O
Blok terminal penjepit pegas

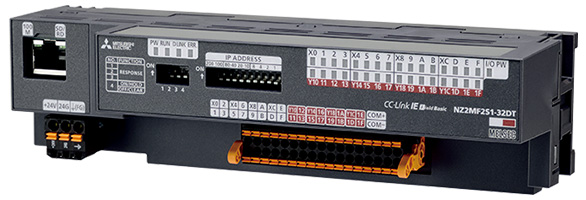

NZ2MF2S1-32DT| Model | Input type DC input |
Input points | Rated input voltage/ current |
Output type Transistor output |
Output points | Rated load voltage/ Max. load current |
Wiring type |
|---|---|---|---|---|---|---|---|
| NZ2MF2S1-32DT | Positive common |
16 points | 24 V DC (6 mA) | Sink | 16 points | 24 V DC (0.5 A/point, 4 A/common) |
1-wire |
| NZ2MF2S1-32DTE1 | Negative common |
16 points | 24 V DC (6 mA) | Source | 16 points | 24 V DC (0.1 A/point, 1.6 A/common) |
1-wire |
Blok terminal sekrup

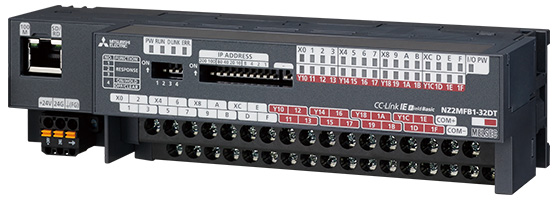

NZ2MFB1-32DT| Model | Input type DC input |
Input points | Rated input voltage/ current |
Output type Transistor output |
Output points | Rated load voltage/ Max. load current |
Wiring type |
|---|---|---|---|---|---|---|---|
| NZ2MFB1-32DT | Positive common |
16 points | 24 V DC (6 mA) | Sink | 16 points | 24 V DC (0.5 A/point, 4 A/common) |
1-wire |
| NZ2MFB1-32DTE1 | Negative common |
16 points | 24 V DC (6 mA) | Source | 16 points | 24 V DC (0.1 A/point, 1.6 A/common) |
1-wire |
