Multiple Input (Voltage/Current/Temperature) Module


Channel isolated multiple input

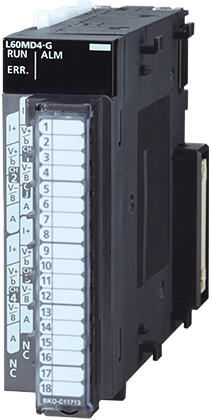

L60MD4-G
L60MD4-G Number of inputs: 4 channels
Input voltage: -10 to 10 V DC
Input current: 0 to 20 mA DC
Input micro voltage: -100 to 100 mV
Input thermocouple: K, J, T, E, N, R, S, B, U, L, PLⅡ, W5Re/W26Re
Input RTD: Pt1000, Pt100, JPt100, Pt50
Conversion speed: 50 ms/channel
Resolution
Voltage/Current/micro voltage: 1/20000Thermocouple: B, R, S, N, PLⅡ, W5Re/W26Re: 0.3℃, K, E, J, T, U, L: 0.1℃RTD: Pt100, JPt100: 0.03℃/0.1℃, Pt1000, Pt50: 0.1℃

Channel isolated multiple input

L60MD4-G

L60MD4-G

Number of inputs: 4 channels
Input voltage: -10 to 10 V DC
Input current: 0 to 20 mA DC
Input micro voltage: -100 to 100 mV
Input thermocouple: K, J, T, E, N, R, S, B, U, L, PLⅡ, W5Re/W26Re
Input RTD: Pt1000, Pt100, JPt100, Pt50
Conversion speed: 50 ms/channel
Resolution

Voltage/Current/micro voltage: 1/20000
Thermocouple: B, R, S, N, PLⅡ, W5Re/W26Re: 0.3℃, K, E, J, T, U, L: 0.1℃
RTD: Pt100, JPt100: 0.03℃/0.1℃, Pt1000, Pt50: 0.1℃
Page Top

Analog Input Modules


Analog Input
L60AD4
L60AD4 Number of inputs: 4 channels
Input voltage: -10 to 10 V DC
Input current: 0 to 20 mA DC
Conversion speed: 20 μs/channel
Resolution: 1/20000
Analog Input

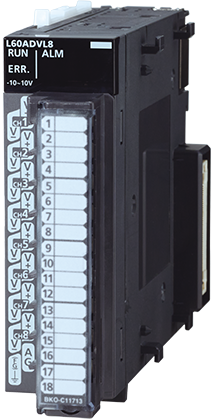

L60ADVL8
L60ADVL8 Number of inputs: 8 channels
Input voltage: -10 to 10 V DC
Conversion speed: 1 ms/channel
Resolution: 1/16000
Analog Input

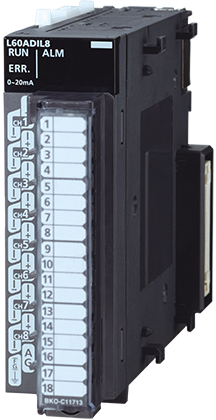

L60ADIL8
L60ADIL8 Number of inputs: 8 channels
Input current: 0 to 20 mA DC
Conversion speed: 1 ms/channel
Resolution: 1/8000

Analog Input

L60AD4

L60AD4

Number of inputs: 4 channels
Input voltage: -10 to 10 V DC
Input current: 0 to 20 mA DC
Conversion speed: 20 μs/channel
Resolution: 1/20000

L60ADVL8

L60ADVL8

Number of inputs: 8 channels
Input voltage: -10 to 10 V DC
Conversion speed: 1 ms/channel
Resolution: 1/16000

L60ADIL8

L60ADIL8

Number of inputs: 8 channels
Input current: 0 to 20 mA DC
Conversion speed: 1 ms/channel
Resolution: 1/8000

Page Top

Analog Output Modules


Analog Output

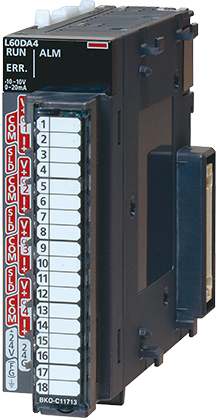

L60DA4
L60DA4 Number of outputs: 4 channels
Output voltage: -10 to 10 V DC
Output current: 0 to 20 mA DC
Conversion speed: 20 μs/channel
Resolution: 1/20000

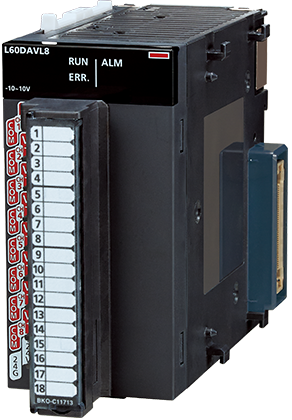

L60DAVL8
L60DAVL8 Number of outputs: 8 channels
Output voltage: -10 to 10 V DC
Conversion speed: 200 μs/channel
Resolution: 1/16000
L60DAIL8
L60DAIL8 Number of outputs: 8 channels
Output voltage: 0 to 20 mA DC
Conversion speed: 200 μs/channel
Resolution: 1/8000

Analog Output

L60DA4

L60DA4

Number of outputs: 4 channels
Output voltage: -10 to 10 V DC
Output current: 0 to 20 mA DC
Conversion speed: 20 μs/channel
Resolution: 1/20000

L60DAVL8

L60DAVL8

Number of outputs: 8 channels
Output voltage: -10 to 10 V DC
Conversion speed: 200 μs/channel
Resolution: 1/16000

L60DAIL8

L60DAIL8

Number of outputs: 8 channels
Output voltage: 0 to 20 mA DC
Conversion speed: 200 μs/channel
Resolution: 1/8000

Page Top

Analog I/O Module


Analog I/O

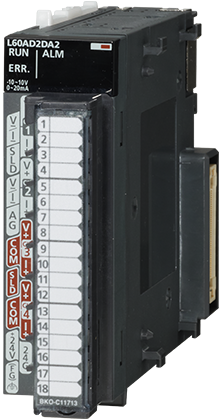

L60AD2DA2
L60AD2DA2 Analog input specifications
Number of inputs: 2 channels
Input voltage: -10 to 10 V DC
Input current: 0 to 20 mA DC
Conversion speed: 80 μs/channel
Resolution: 1/12000 Analog output specifications
Number of outputs: 2 channels
Output voltage: -10 to 10 V DC
Output current: 0 to 20 mA DC
Conversion speed: 80 μs/channel
Resolution: 1/12000

Analog I/O

L60AD2DA2

L60AD2DA2

Analog input specifications
Number of inputs: 2 channels
Input voltage: -10 to 10 V DC
Input current: 0 to 20 mA DC
Conversion speed: 80 μs/channel
Resolution: 1/12000

Analog output specifications
Number of outputs: 2 channels
Output voltage: -10 to 10 V DC
Output current: 0 to 20 mA DC
Conversion speed: 80 μs/channel
Resolution: 1/12000

Page Top

Temperature Input Module


RTD input

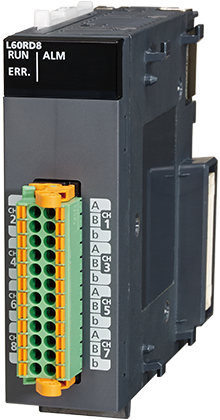

L60RD8
L60RD8 Number of inputs: 8 channels
Input RTD: Pt1000, Pt100 (JIS C 1604-2013), JPt100 (JIS C 1604-1981), Pt50 (JIS C 1604-1981), Ni500 (DIN 43760 1987), Ni120 (DIN 43760 1987), Ni100 (DIN 43760 1987), Cu100 (GOST 6651-2009, α=0.00428), Cu50 (GOST 6651-2009, α=0.00428)
Conversion speed: 40 ms/ch
Resolution: 0.1℃

RTD input

L60RD8

L60RD8

Number of inputs: 8 channels
Input RTD: Pt1000, Pt100 (JIS C 1604-2013), JPt100 (JIS C 1604-1981), Pt50 (JIS C 1604-1981), Ni500 (DIN 43760 1987), Ni120 (DIN 43760 1987), Ni100 (DIN 43760 1987), Cu100 (GOST 6651-2009, α=0.00428), Cu50 (GOST 6651-2009, α=0.00428)
Conversion speed: 40 ms/ch
Resolution: 0.1℃

■ Multiple/analog/temperature input features
FunctionMultiple input (voltage/current/temperature) module Analog input module Analog I/O moduleTemperature input module
L60MD4-G L60AD4 L60ADVL8 L60ADIL8 L60AD2DA2 L60RD8
Channel isolation●—————
AD conversion methodSampling processing●●●●●●
Averaging processingTime average●●●●●●
Count average●●●●●●
Moving average●●●●●●
Time lag filter function——————
Digital filtering function——————
Conversion speed switch function—●————
Input range extended mode function●●*1●●●—
Maximum value/minimum value hold function●●●●●●
Disconnection detection function●————●
Input signal error detection function●●●●●—
Input signal error detection extension function— ●*1●●——
Warning output functionProcess alarm●●●●—●
Rate alarm●————●
Scaling function●●●●●●
2-point sensor compensation function—————●
Shift function —*2 ●*1 —*2 —*2 —*2●
Digital clipping function —*2 ●*1 —*2 —*2 —*2—
Difference conversion function —*2 ●*1 —*2 —*2 —*2—
Logging function —*3 ●*1 —*3 —*3● —*3
Flow amount integration function— ●*1————
Trigger conversion function——————
Variable arithmetic function———— ●*4—
Variable conversion characteristics function———— ●*4—
Variable conversion characteristics function + variable arithmetic function———— ●*4—
Supported by models whose first five serial number digits are "13041" or later.
Please use function blocks (FB) for the shift function, digital clipping function, and difference conversion function. The function blocks (FB) can be downloaded for free from the MELSOFT Library on the Mitsubishi Electric FA site.
For logging, please use the data logging function of the CPU module.
Supported by models whose first five serial number digits are "17042" or later.

■ Analog output features
Function Analog output module Analog I/O module
L60DA4 L60DAVL8 L60DAIL8 L60AD2DA2
Analog output HOLD/CLEAR function ● ● ● ●
Scaling function ● ● ● ●
Warning output function Process alarm ● ● ● ●
Wave output function ●*5 ● ● ●
Wave output step action function ●*5 ● ● ●
Variable arithmetic function — — — ●*6
Variable conversion characteristics function — — — ●*6
Variable conversion characteristics function + variable arithmetic function — — — ●*6
*5: Supported by models whose first five serial number digits are "14041" or later.
*6: Supported by models whose first five serial number digits are "17042" or later.
Page Top

Temperature Control Modules


Thermocouple input

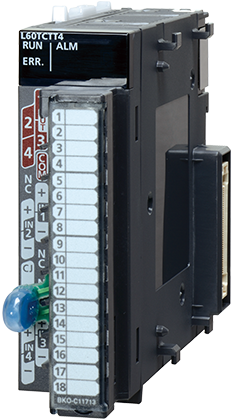

L60TCTT4
L60TCTT4 Number of inputs: 4 channels

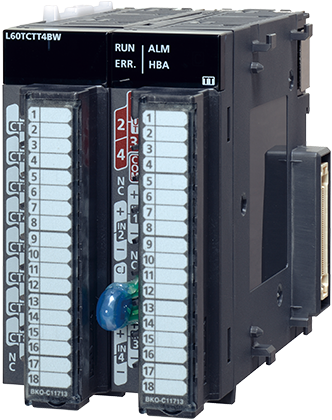

L60TCTT4BW
L60TCTT4BW Number of inputs: 4 channels
Heater disconnection detection function
RTD input

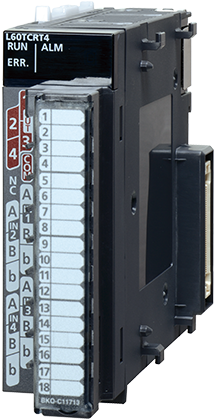

L60TCRT4
L60TCRT4 Number of inputs: 4channels

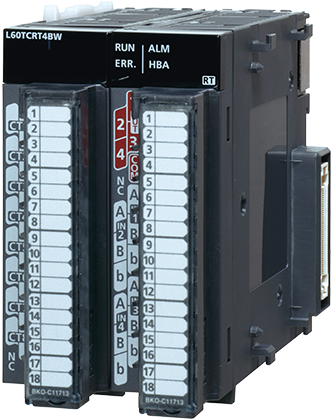

L60TCRT4BW
L60TCRT4BW Number of inputs: 4 channels
Heater disconnection detection function

Thermocouple input

L60TCTT4

L60TCTT4

Number of inputs: 4 channels

L60TCTT4BW

L60TCTT4BW

Number of inputs: 4 channels
Heater disconnection detection function

RTD input

L60TCRT4

L60TCRT4

Number of inputs: 4channels

L60TCRT4BW

L60TCRT4BW

Number of inputs: 4 channels
Heater disconnection detection function

Function L60TCTT4 L60TCTT4BW L60TCRT4 L60TCRT4BW
Thermocouple input RTD input
Standard control●●●●
Heating-cooling control●●●●
Self-tuning function●●●●
Peak current suppression function●●●●
Simultaneous temperature rise function●●●●
Selectable sampling cycle●●●●
Temperature input mode●●●●
Temperature control mode●●●●
Heater disconnection detection function—●—●
