MELSEC-L Series

L Series Built-in I/O Features

Communication interface:
RS-232

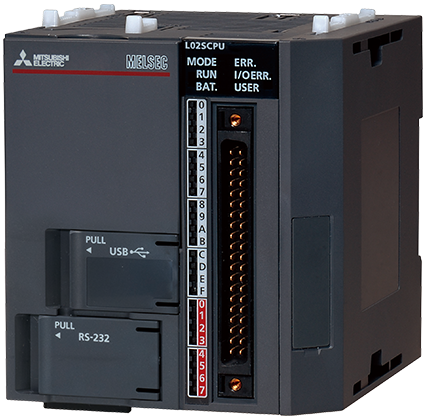

L02SCPU
L02SCPU General-purpose output: Sink type
Program capacity: 20K steps
Basic operation processing speed: 60 ns
L02SCPU-P General-purpose output: Source type
Program capacity: 20K steps
Basic operation processing speed: 60 ns
*: End cover is enclosed.
Cannot be mounted on display unit (L6DSPU), RS-232 adapter, RS-422/485 adapter.

Communication interface: RS-232

L02SCPU

L02SCPU

General-purpose output: Sink type
Program capacity: 20K steps
Basic operation processing speed: 60 ns

L02SCPU-P

General-purpose output: Source type
Program capacity: 20K steps
Basic operation processing speed: 60 ns

*: End cover is enclosed.
Cannot be mounted on display unit (L6DSPU), RS-232 adapter, RS-422/485 adapter.
Communication interface:
Ethernet
L02CPU
L02CPU General-purpose output: Sink type
Program capacity: 20K steps
Basic operation processing speed: 40 ns
L02CPU-P General-purpose output: Source type
Program capacity: 20K steps
Basic operation processing speed: 40 ns
*: End cover is enclosed.
L06CPU
L06CPU General-purpose output: Sink type
Program capacity: 60K steps
Basic operation processing speed: 9.5 ns
L06CPU-P General-purpose output: Source type
Program capacity: 60K steps
Basic operation processing speed: 9.5 ns
*: End cover is enclosed.

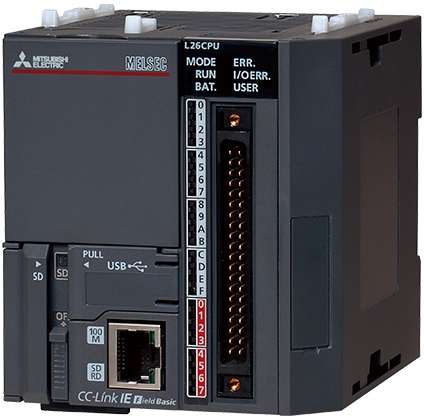

L26CPU
L26CPU General-purpose output: Sink type
Program capacity: 260K steps
Basic operation processing speed: 9.5 ns
L26CPU-P General-purpose output: Source type
Program capacity: 260K steps
Basic operation processing speed: 9.5 ns
*: End cover is enclosed.

Communication interface: Ethernet

L02CPU

L02CPU

General-purpose output: Sink type
Program capacity: 20K steps
Basic operation processing speed: 40 ns

L02CPU-P

General-purpose output: Source type
Program capacity: 20K steps
Basic operation processing speed: 40 ns

*: End cover is enclosed.
L06CPU

L06CPU

General-purpose output: Sink type
Program capacity: 60K steps
Basic operation processing speed: 9.5 ns

L06CPU-P

General-purpose output: Source type
Program capacity: 60K steps
Basic operation processing speed: 9.5 ns

*: End cover is enclosed.
L26CPU

L26CPU

General-purpose output: Sink type
Program capacity: 260K steps
Basic operation processing speed: 9.5 ns

L26CPU-P

General-purpose output: Source type
Program capacity: 260K steps
Basic operation processing speed: 9.5 ns

*: End cover is enclosed.
Communication interface:
Ethernet port and a built-in CC-Link interface
L26CPU-BT
L26CPU-BT General-purpose output: Sink type
Program capacity: 260K steps
Basic operation processing speed: 9.5 ns
L26CPU-PBT General-purpose output: Source type
Program capacity: 260K steps
Basic operation processing speed: 9.5 ns
*: End cover is enclosed.

Communication interface:
Ethernet port and a built-in CC-Link interface

L26CPU-BT

L26CPU-BT

General-purpose output: Sink type
Program capacity: 260K steps
Basic operation processing speed: 9.5 ns

L26CPU-PBT

General-purpose output: Source type
Program capacity: 260K steps
Basic operation processing speed: 9.5 ns

*: End cover is enclosed.
Model General-purpose output Number of I/O points Program capacity Basic operation processing speed (LD instruction) Peripheral connection ports Built-in network
L02SCPU Sink type 1024 points 20K steps 60ns USB/RS-232
L02CPU 40ns USB/Ethernet
L06CPU 4096 points 60K steps 9.5ns
L26CPU 260K steps
L26CPU-BT CC-Link
L02SCPU-P Source type 1024 points 20K steps 60ns USB/RS-232
L02CPU-P 40ns USB/Ethernet
L06CPU-P 4096 points 60K steps 9.5ns
L26CPU-P 260K steps
L26CPU-PBT CC-Link
CPU packages

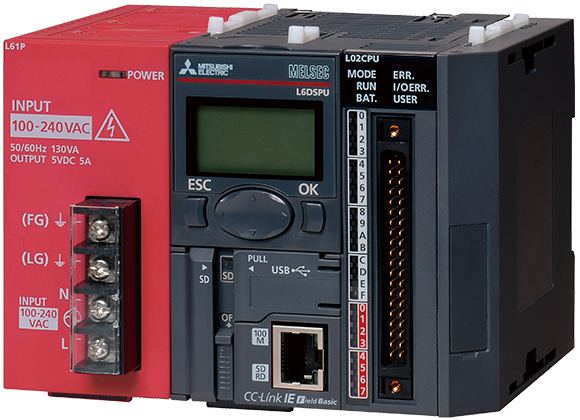

L02CPU-SET
Includes CPU (L02CPU), power supply module (L61P), and display unit (L6DSPU).
L02CPU-P-SET
Includes CPU (L02CPU-P), power supply module (L61P), and display unit (L6DSPU).
L02CPU-SET
L06CPU-SET
Includes CPU (L06CPU), power supply module (L61P), and display unit (L6DSPU).
L06CPU-P-SET
Includes CPU (L06CPU-P), power supply module (L61P), and display unit (L6DSPU).
L06CPU-SET

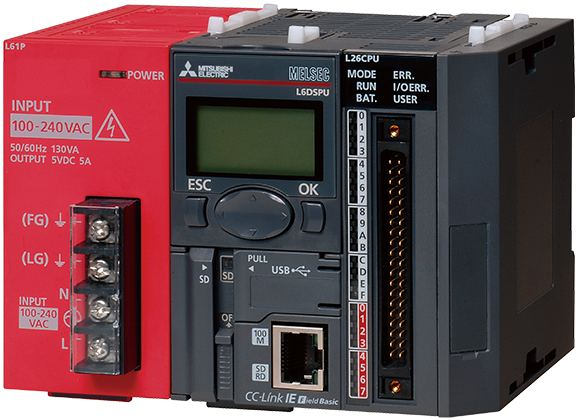

L26CPU-SET
Includes CPU (L26CPU), power supply module (L61P), and display unit (L6DSPU).
L26CPU-P-SET
Includes CPU (L26CPU-P), power supply module (L61P), and display unit (L6DSPU).
L26CPU-SET

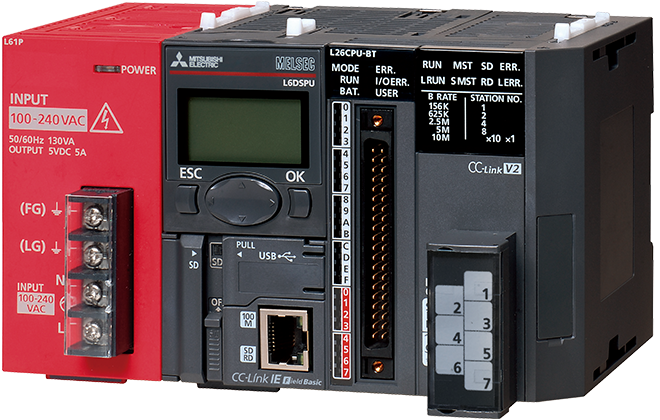

L26CPU-BT-SET
Includes CPU (L26CPU-BT), power supply module (L61P), and display unit (L6DSPU).
L26CPU-PBT-SET
Includes CPU (L26CPU-PBT), power supply module (L61P), and display unit (L6DSPU).
L26CPU-BT-SET

CPU packages

L02CPU-SET

Includes CPU (L02CPU), power supply module (L61P), and display unit (L6DSPU).

L02CPU-P-SET

Includes CPU (L02CPU-P), power supply module (L61P), and display unit (L6DSPU).

L02CPU-SET
L06CPU-SET

Includes CPU (L06CPU), power supply module (L61P), and display unit (L6DSPU).

L06CPU-P-SET

Includes CPU (L06CPU-P), power supply module (L61P), and display unit (L6DSPU).

L06CPU-SET
L26CPU-SET

Includes CPU (L26CPU), power supply module (L61P), and display unit (L6DSPU).

L26CPU-P-SET

Includes CPU (L26CPU-P), power supply module (L61P), and display unit (L6DSPU).

L26CPU-SET
L26CPU-BT-SET

Includes CPU (L26CPU-BT), power supply module (L61P), and display unit (L6DSPU).

L26CPU-PBT-SET

Includes CPU (L26CPU-PBT), power supply module (L61P), and display unit (L6DSPU).

L26CPU-BT-SET

Branch/Extension Modules


Branch and extension module
L6EXB
L6EXB branch

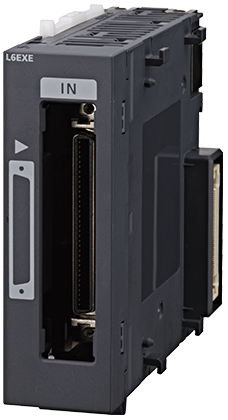

L6EXE
L6EXE extension

Branch and extension module

L6EXB

L6EXB

branch

L6EXE

L6EXE

extension

Power Supply Modules


AC input
L61P
L61P Input: 100 to 240 V AC
Output: 5 V DC, 5
DC input

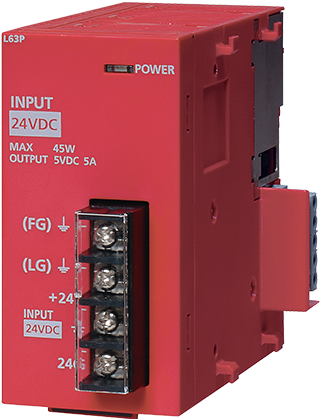

L63P
L63P Input: 24 V DC
Output: 5 V DC, 5 A
L63SP
L63SP Input: 24 V DC
Output: 5 V DC, 5 A
Slim type
No isolation

AC input

L61P

L61P

Input: 100 to 240 V AC
Output: 5 V DC, 5

DC input

L63P

L63P

Input: 24 V DC
Output: 5 V DC, 5 A

L63SP

L63SP

Input: 24 V DC
Output: 5 V DC, 5 A
Slim type
No isolation

RS-232 Adapter


RS-232
adapter
L6ADP-R2
L6ADP-R2 Transmission speed: 115.2 kbps
GOT(HMI) connection
MELSOFT *1 connection
Predefined protocol support function
Serial communication function
*1: Please refer to each MELSOFT product manual for details on the supported software.
L6ADP-R2

L6ADP-R2

Transmission speed: 115.2 kbps
GOT(HMI) connection
MELSOFT *1 connection
Predefined protocol support function
Serial communication function

MODBUS®
*1: Please refer to each MELSOFT product manual for details on the supported software.

RS-422/485 Adapter


RS-422/485
adapter

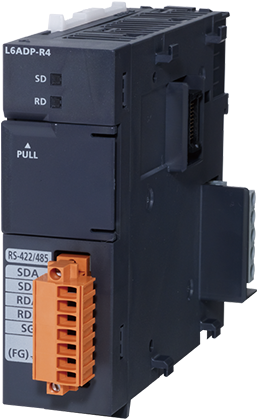

L6ADP-R4
L6ADP-R4 Transmission speed: 115.2 kbps
GOT(HMI) connection
Predefined protocol support function
Serial Communication function
L6ADP-R4

L6ADP-R4

Transmission speed: 115.2 kbps
GOT(HMI) connection
Predefined protocol support function
Serial Communication function

MODBUS®

END Cover with Error Terminal


END cover with error terminal
L6EC-ET
L6EC-ET Error output relay
L6EC-ET

L6EC-ET

Error output relay

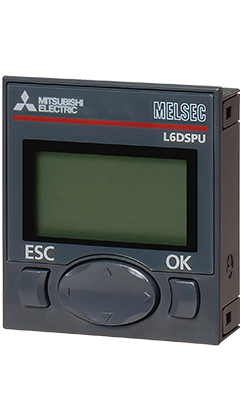

Display Unit


Display Unit
L6DSPU
L6DSPU
L6DSPU

L6DSPU
