Products

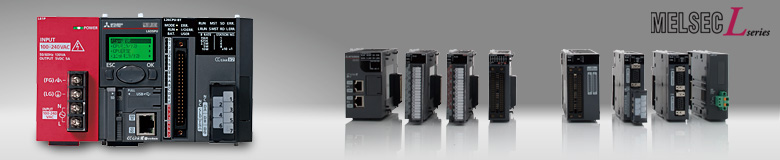

MELSEC-L Series

MELSEC-L Series: I/O

Input Modules


AC input

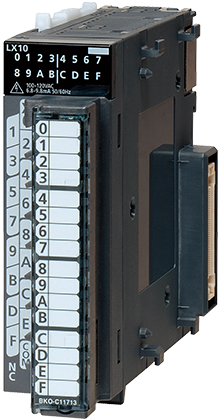

LX10
LX10 Number of inputs: 16 points
100 to 120 V AC
18-point terminal block
LX28
LX28 Number of inputs: 8 points
100 to 240 V AC
18-point terminal block

AC input

LX10

LX10

Number of inputs: 16 points
100 to 120 V AC
18-point terminal block

LX28

LX28

Number of inputs: 8 points
100 to 240 V AC
18-point terminal block

DC input

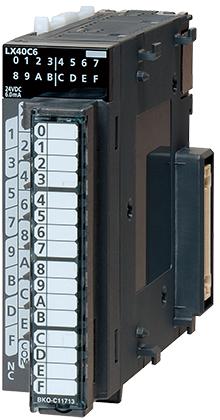

LX40C6
LX40C6 Number of inputs: 16 points
24 V DC
18-point terminal block

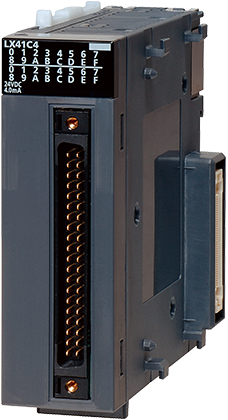

LX41C4
LX41C4 Number of inputs: 32 points
24 V DC
40-pin connector

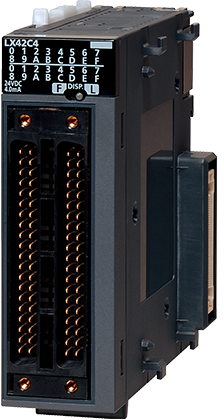

LX42C4
LX42C4 Number of inputs: 64 points
24 V DC
40-pin connector x2

DC input

LX40C6

LX40C6

Number of inputs: 16 points
24 V DC
18-point terminal block

LX41C4

LX41C4

Number of inputs: 32 points
24 V DC
40-pin connector

LX42C4

LX42C4

Number of inputs: 64 points
24 V DC
40-pin connector x2

Output Modules


Contact output

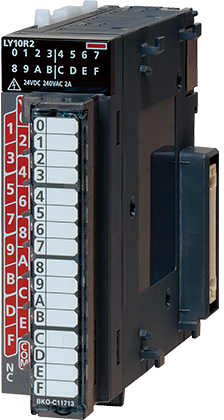

LY10R2
LY10R2 Number of outputs: 16 points
24 V DC/240 V AC
Rated switching current: 2 A/point
18-point terminal block

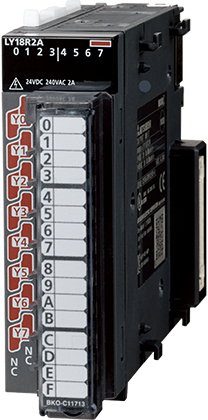

LY18R2A
LY18R2A Number of outputs: 8 points
(all points independent)
24 V DC/240 V AC
Rated switching current: 2 A/point
18-point terminal block

Contact output

LY10R2

LY10R2

Number of outputs: 16 points
24 V DC/240 V AC
Rated switching current: 2 A/point
18-point terminal block

LY18R2A

LY18R2A

Number of outputs: 8 points
(all points independent)
24 V DC/240 V AC
Rated switching current: 2 A/point
18-point terminal block

Triac output
LY20S6
LY20S6 Number of outputs: 16 points
100 to 240 V AC
Max. load current: 0.6 A/point
18-point terminal block

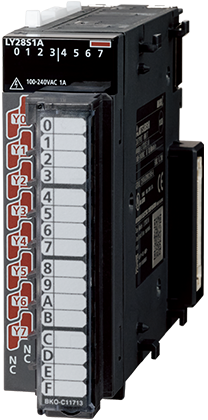

LY28S1A
LY28S1A Number of outputs: 8 points
(all points independent)
100 to 240 V AC
Max. load current: 1 A/point
18-point terminal block

Triac output

LY20S6

LY20S6

Number of outputs: 16 points
100 to 240 V AC
Max. load current: 0.6 A/point
18-point terminal block

LY28S1A

LY28S1A

Number of outputs: 8 points
(all points independent)
100 to 240 V AC
Max. load current: 1 A/point
18-point terminal block

Transistor
output
(Sink type)

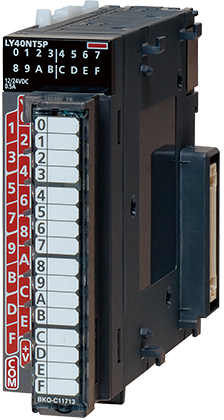

LY40NT5P
LY40NT5P Number of outputs: 16 points
12 to 24 V DC
Max. load current: 0.5 A/point
Protection function
18-point terminal block
LY41NT1P
LY41NT1P Number of outputs: 32 points
12 to 24 V DC
Max. load current: 0.1 A/point
Protection function
40-pin connector

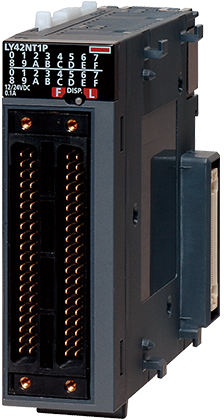

LY42NT1P
LY42NT1P Number of outputs: 64 points
12 to 24 V DC
Max. load current: 0.1 A/point
Protection function
40-pin connector x2

Transistor output (Sink type)

LY40NT5P

LY40NT5P

Number of outputs: 16 points
12 to 24 V DC
Max. load current: 0.5 A/point
Protection function
18-point terminal block

LY41NT1P

LY41NT1P

Number of outputs: 32 points
12 to 24 V DC
Max. load current: 0.1 A/point
Protection function
40-pin connector

LY42NT1P

LY42NT1P

Number of outputs: 64 points
12 to 24 V DC
Max. load current: 0.1 A/point
Protection function
40-pin connector x2

Transistor
output
(Source type)
LY40PT5P
LY40PT5P Number of outputs: 16 points
12 to 24 V DC
Max. load current: 0.5 A/point
Protection function
18-point terminal block

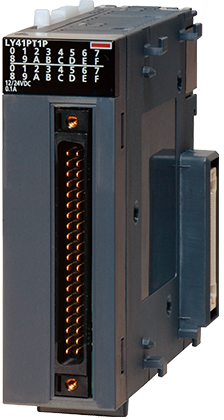

LY41PT1P
LY41PT1P Number of outputs: 32 points
12 to 24 V DC
Max. load current: 0.1 A/point
Protection function
40-pin connector
LY42PT1P Number of outputs: 64 points
12 to 24 V DC
Max. load current: 0.1 A/point
Protection function
40-pin connector x2

Transistor output (Source type)

LY40PT5P

LY40PT5P

Number of outputs: 16 points
12 to 24 V DC
Max. load current: 0.5 A/point
Protection function
18-point terminal block

LY41PT1P

LY41PT1P

Number of outputs: 32 points
12 to 24 V DC
Max. load current: 0.1 A/point
Protection function
40-pin connector

LY42PT1P

Number of outputs: 64 points
12 to 24 V DC
Max. load current: 0.1 A/point
Protection function
40-pin connector x2

I/O Combined Modules


DC input / Transistor
output
(Sink type)

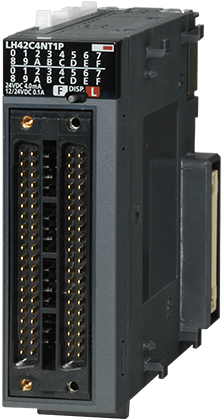

LH42C4NT1P
LH42C4NT1P Input specifications
Number of inputs: 32 points
24 V DC
40-pin connector
Output specifications
Number of outputs: 32 points
12 to 24 V DC
Max. load current: 0.1 A/point
Protection function
40-pin connector
DC input / Transistor
output
(Source type)

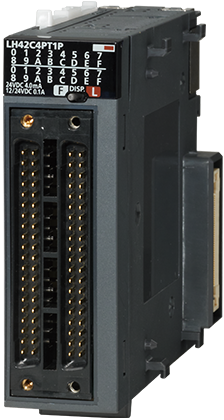

LH42C4PT1P
LH42C4PT1P Input specifications
Number of inputs: 32 points
24 V DC
40-pin connector
Output specifications
Number of outputs: 32 points
12 to 24 V DC
Max. load current: 0.1 A/point
Protection function
40-pin connector

DC input / Transistor output (Sink type)

LH42C4NT1P

LH42C4NT1P

Input specifications
Number of inputs: 32 points
24 V DC
40-pin connector

Output specifications
Number of outputs: 32 points
12 to 24 V DC
Max. load current: 0.1 A/point
Protection function
40-pin connector

DC input / Transistor output (Source type)

LH42C4PT1P

LH42C4PT1P

Input specifications
Number of inputs: 32 points
24 V DC
40-pin connector

Output specifications
Number of outputs: 32 points
12 to 24 V DC
Max. load current: 0.1 A/point
Protection function
40-pin connector

Spring clamp terminal block (push-in type): L6TE-18S
The screw terminal block of installed modules can be replaced with a push-in type spring clamp terminal block.
This terminal block type helps to reduce the amount of wiring and maintenance time.
L02CPU-SET

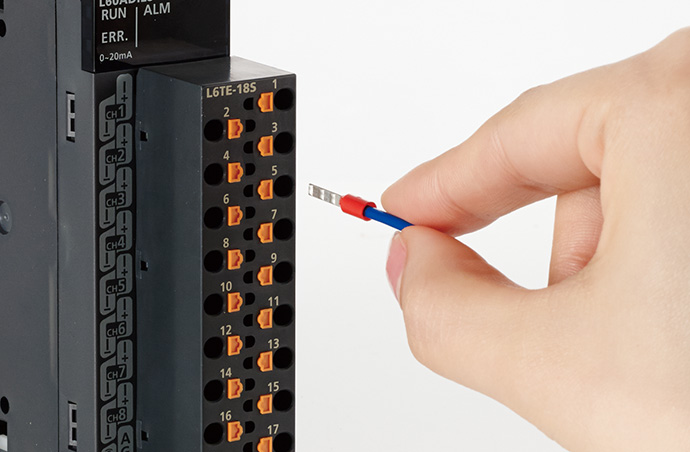

■ Push-in type for reduced wiring
Easier to wire just by inserting into the terminal block.
L06CPU-SET

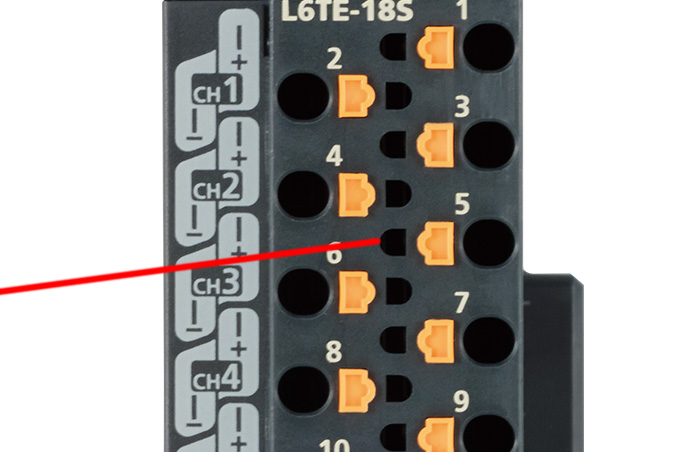

■ Simple to confirm signal integrity
Includes dedicated terminals for insertion of a test probe, for example.
Spring clamp terminal block (push-in type): L6TE-18S

The screw terminal block of installed modules can be replaced with a push-in type spring clamp terminal block.
This terminal block type helps to reduce the amount of wiring and maintenance time.

L02CPU-SET

Push-in type for reduced wiring
Easier to wire just by inserting into the terminal block.

L06CPU-SET

■ Simple to confirm signal integrity
Includes dedicated terminals for insertion of a test probe, for example.
