Products



MELSEC-L Series

MELSEC-L Series: Network

CC-Link IE Field Network Master/Local Module


CC-Link IE Field

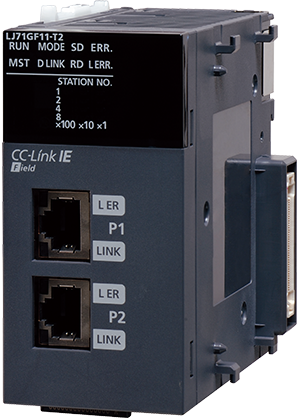

LJ71GF11-T2
LJ71GF11-T2 CC-Link IE Field Master/local station
Communication speed: 1 Gbps
Remote I/O: 16384 points
Remote register: 8192 words
*: Supported by CPUs whose first five serial number digits are "13012" or later.

CC-Link IE Field

LJ71GF11-T2

LJ71GF11-T2

CC-Link IE Field Master/local station
Communication speed: 1 Gbps
Remote I/O: 16384 points
Remote register: 8192 words

*: Supported by CPUs whose first five serial number digits are "13012" or later.
Page Top

CC-Link IE Field Network Head Module


CC-Link IE Field

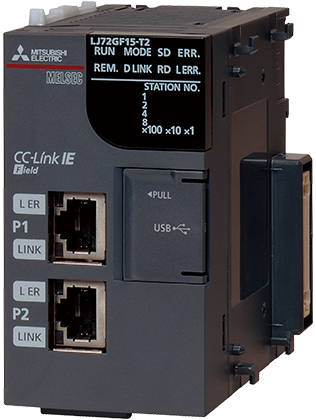

LJ72GF15-T2
LJ72GF15-T2 CC-Link IE Field Intelligent device station
Communication speed: 1 Gbps
Remote I/O: 2048 points
Remote register: 1024 words
RAS function
*: END cover is included.

CC-Link IE Field

LJ72GF15-T2

LJ72GF15-T2

CC-Link IE Field Intelligent device station
Communication speed: 1 Gbps
Remote I/O: 2048 points
Remote register: 1024 words
RAS function

*: END cover is included.
Page Top

CC-Link Master/Local Module


CC-Link

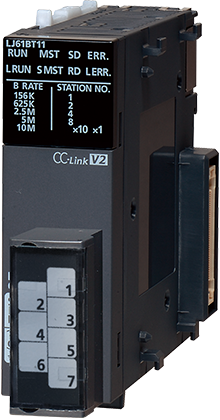

LJ61BT11
LJ61BT11 CC-Link master/local station
Max. communication speed: 10 Mbps
Remote I/O: 8192 points*1
Remote register: 2048 words*1
*1: Link points for CC-Link Ver.2.0 master station

CC-Link

LJ61BT11

LJ61BT11

CC-Link master/local station
Max. communication speed: 10 Mbps
Remote I/O: 8192 points*1
Remote register: 2048 words*1

*1: Link points for CC-Link Ver.2.0 master station
Page Top

AnyWireASLINK Master Module


AnyWireASLINK

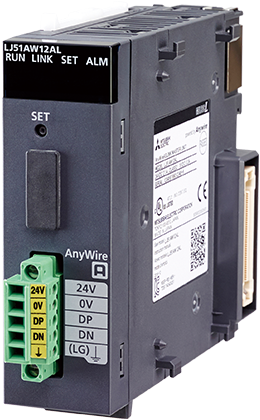

LJ51AW12AL
LJ51AW12AL DB
AnyWireASLINK master station
Transmission distance: Max. 200 m
Data I/O: Max. 512 points*3
Number of connected stations: Max. 128 modules
*3: 256 input points/256 output points
Double brand product Double brand product
General specifications and product guarantee conditions of jointly developed products are different from those of MELSEC products.
For more information, please refer to the product manuals or contact your local Mitsubishi representative for details.

AnyWireASLINK

LJ51AW12AL

LJ51AW12AL

DB
AnyWireASLINK master station
Transmission distance: Max. 200 m
Data I/O: Max. 512 points*3
Number of connected stations: Max. 128 modules

*3: 256 input points/256 output points
Double brand product：Double brand product
General specifications and product guarantee conditions of jointly developed products are different from those of MELSEC products.
For more information, please refer to the product manuals or contact your local Mitsubishi representative for details.
Page Top

SSCNETⅢ/H Head Module


SSCNETⅢ/H

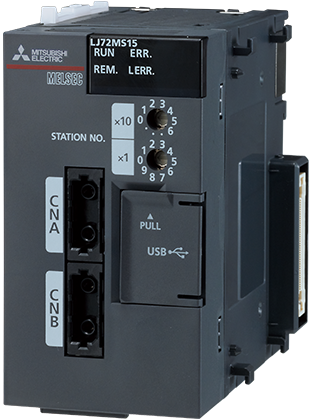

LJ72MS15
LJ72MS15 SSCNETⅢ/H remote station
Communication speed: 150 Mbps
*: END cover is included.

SSCNETⅢ/H

LJ72MS15

LJ72MS15

SSCNETⅢ/H remote station
Communication speed: 150 Mbps

*: END cover is included.
Page Top

Ethernet Interface Module


Ethernet

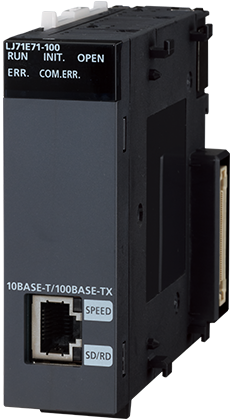

LJ71E71-100
LJ71E71-100 Communication speed: 100 Mbps/10 Mbps
MELSOFT connection
SLMP communication (MC protocol)
Predefined protocol support function
E-mail function
Web function

Ethernet

LJ71E71-100

LJ71E71-100

Communication speed: 100 Mbps/10 Mbps
MELSOFT connection
SLMP communication (MC protocol)
Predefined protocol support function
E-mail function
Web function

Page Top

Serial Communication Modules


RS-232,
RS-422/485
LJ71C24
LJ71C24 Max. communication speed: 230.4 kbps*4
MC protocol communications
Predefined protocol support function
*4: Available for only channel 1
RS-232

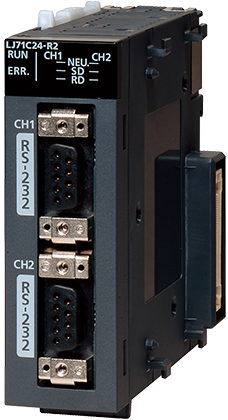

LJ71C24-R2
LJ71C24-R2 Max. communication speed: 230.4 kbps*5
MC protocol communications
Predefined protocol support function
*5: Available for only channel 1

RS-232, RS-422/485

LJ71C24

LJ71C24

Max. communication speed: 230.4 kbps*4
MC protocol communications
Predefined protocol support function

*4: Available for only channel 1

RS-232

LJ71C24-R2

LJ71C24-R2

Max. communication speed: 230.4 kbps*5
MC protocol communications
Predefined protocol support function

*5: Available for only channel 1
Page Top
