Remote IO-Link module

CC-Link IE Field Network remote IO-Link modules

CC-Link IE Field NetworkCC-Link IE Control Network twisted-pair cableCC-Link IE Control Network optical cable

  • Support CC-Link IE Field Network
  • Control IO-Link standard devices as the IO-Link master module
  • Water proof types do not require a control panel, saving on hardware cost and space

Spring clamp terminal block type

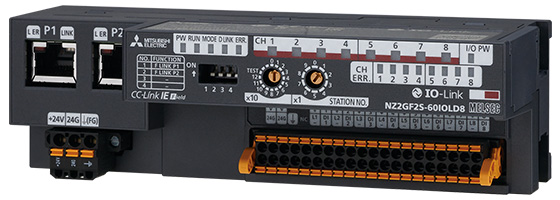

NZ2GF2S-60IOLD8

NZ2GF2S-60IOLD8

Model Number of IO-Link channels Rated load voltage/
Rated load current (L+)*1
Transmission speed*2 IO-Link compatible
protocol
Waterproof (IP67)
NZ2GF2S-60IOLD8 8 ch 24 V DC (1.6 A) 4.8 kbaud (COM1)
38.4 kbaud (COM2)
230.4 kbaud (COM3)
v1.1.2

Waterproof connector

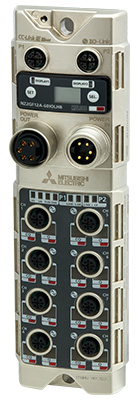

NZ2GF12A-60IOLH8

NZ2GF12A-60IOLH8

Model Number of IO-Link channels Rated load voltage/
Max. load current (L+)*1
Transmission speed*2 IO-Link compatible
protocol
Waterproof (IP67)
NZ2GF12A-60IOLH8 8 ch 24 V DC (1.3 A) 4.8 kbaud (COM1)
38.4 kbaud (COM2)
230.4 kbaud (COM3)
v1.1.2

*1: Power supply line to IO-Link device.

*2: Transmission speed differs according to the connected IO-Link device.
