Programmable Controllers MELSEC CC-Link IE TSN Products

Master stations

The MELSEC MX Controller is Mitsubishi Electric's most advanced CPU module. It integrates sequence, motion, and network controls into a single module. It takes control speed and accuracy to new heights. It also incorporates a CC-Link IE TSN master. In addition to motion control, the MELSEC MX Controller supports communication between controllers when used with MELSEC iQ-R or iQ-F Series master/local modules. This enables the network to be unified with CC-Link IE TSN.

MELSEC iQ-R or iQ-F Series master/local modules can be used as CC-Link IE TSN master stations or local stations.
Control communications that require real-time performance can be mixed with TCP/IP communications, maximizing the performance and functionality of CC-Link IE TSN. Large-scale systems can be constructed using long-distance wiring with optical fiber cables and high-speed, high-capacity communication between controllers.

The motion module provides a variety of control functions, such as positioning, synchronization, cam, velocity, and torque control when used with servo amplifiers that support CC-Link IE TSN. High-speed, high-accuracy motion control can also be achieved in industrial computer environments with motion software or a motion control board.

Programmable automation controllers MELSEC MX ControllerClass B

Mitsubishi Electric's highest-performance CPU module, the first to be equipped with a built-in CC-Link IE TSN master

  • The MELSEC MX Controller integrates sequence control, motion control, and network control into a single module, taking control speed and accuracy to the next level
  • Can be used as a CC-Link IE TSN master station
  • Up to 253 stations*1 can be connected to MX-R, and up to 46 stations can be connected to MX-F. It offers Mitsubishi Electric's highest level of motion control performance, supporting multi-axis control for up to 256 axes
  • In addition to motion control, it supports communication between controllers when used with MELSEC iQ-R or iQ-F Series master/local modules. This enables the network to be unified with CC-Link IE TSN
  • A wide range of devices are supported, including third-party drive units that are compatible with CC-Link IE TSN
  • *1.Device stations supporting 253-station connections will be expanded.
    For details, please refer to Technical Bulletin (FA-A-0451).
MELSEC MX Controller MX-R model, MX-F model

Master/local moduleClass B

Network management module maximizes CC-Link IE TSN performance and functionality

  • Can be used as a CC-Link IE TSN master or local station
  • Enables mixing of real-time control communication and TCP/IP communication
  • Automatic detection of network devices and parameter distribution realizes easy network configuration
  • RJ71GN11-T2 can be used as a safety master or local station when paired with the MELSEC iQ-R Series safety CPU module
  • RJ71GN11-T2 and RJ71GN11-EIP can control servo motors by using the profile mode of servo amplifiers
  • RJ71GN11-EIP can connect CC-Link IE TSN devices to port 1 and EtherNet/IP™ devices to port 2 without affecting CC-Link IE TSN communication performance
  • RJ71GN11-SX enables the construction of systems with long-distance wiring using optical fiber cables. It also allows the construction of large-scale systems through high-speed, high‑capacity communication between controllers

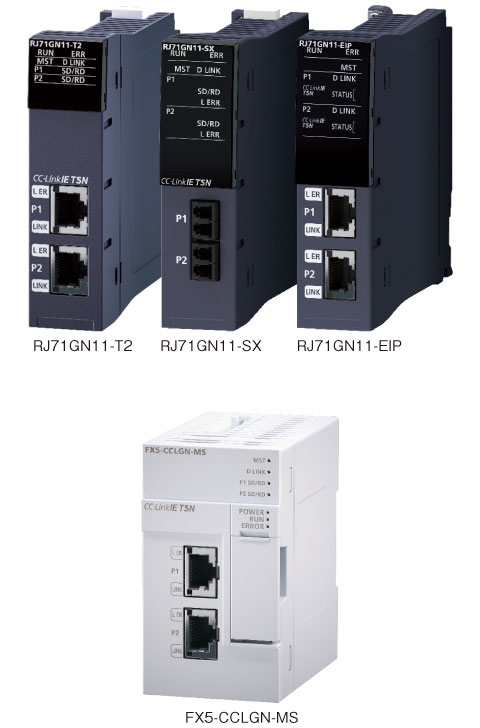

RJ71GN11-T2 / RJ71GN11-SX / RJ71GN11-EIP / FX5-CCLGN-MS

Motion moduleClass B

Unlock new system capabilities together with CC-Link IE TSN

  • PLCopen® Motion Control function blocks can easily perform various motion control functions such as, positioning, synchronization, cam, speed, and torque control
  • Advanced motion control system realized by mixing servo amplifiers and I/O modules on one network
  • Supports safety communication when paired with the MELSEC iQ-R Series safety CPU module
  • FX5-□SSC-G utilizes the existing projects of the MELSEC iQ-F Series simple motion module (previous model)
  • Operation mode of RD78G can be selected between “Simple Motion mode” and “PLCopen® motion control FB mode” considering the programming language and project

Motion control softwareClass B

Create new value together in a PC-based environment

  • Supports a CC-Link IE TSN servo control system where RTX64 (real-time extension) is installed on a PC (RTX64 is included with SWM-G)
  • Meets various application needs by offering various types of motion control, such as positioning, synchronous, cam, speed, and torque control using API libraries
  • Utilizes network control to connect and set various remote devices (remote I/O modules, etc.) and TCP/IP devices

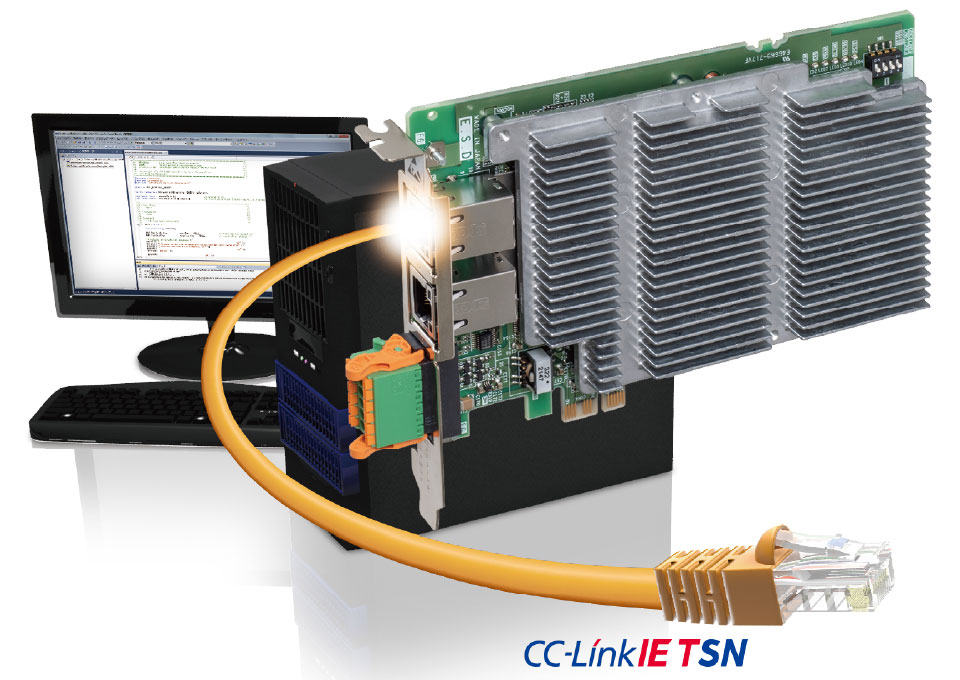

Motion control boardClass B

Achieve high-speed motion control in industrial computer environments

  • Connects to the PCI Express® expansion slot of the industrial computer to achieve high-speed, high-accuracy motion control
  • The built-in CPU handles motion and network control. High-speed, high-accuracy positioning is achieved without affecting the performance of the motor drive, even when the computer CPU is heavily loaded due to massive data processing.
  • Interrupts to the industrial computer allow for the creation of event-driven user applications
