MELSEC iQ-R Series

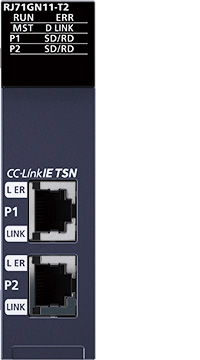

CC-Link IE TSN master/local module

  • Control communication requiring real-time performance and TCP/IP communication can be mixed, maximizing CC-Link IE TSN performance and functionality.

  • RJ71GN11-T2
    • RJ71GN11-T2

    CC-Link IE TSN

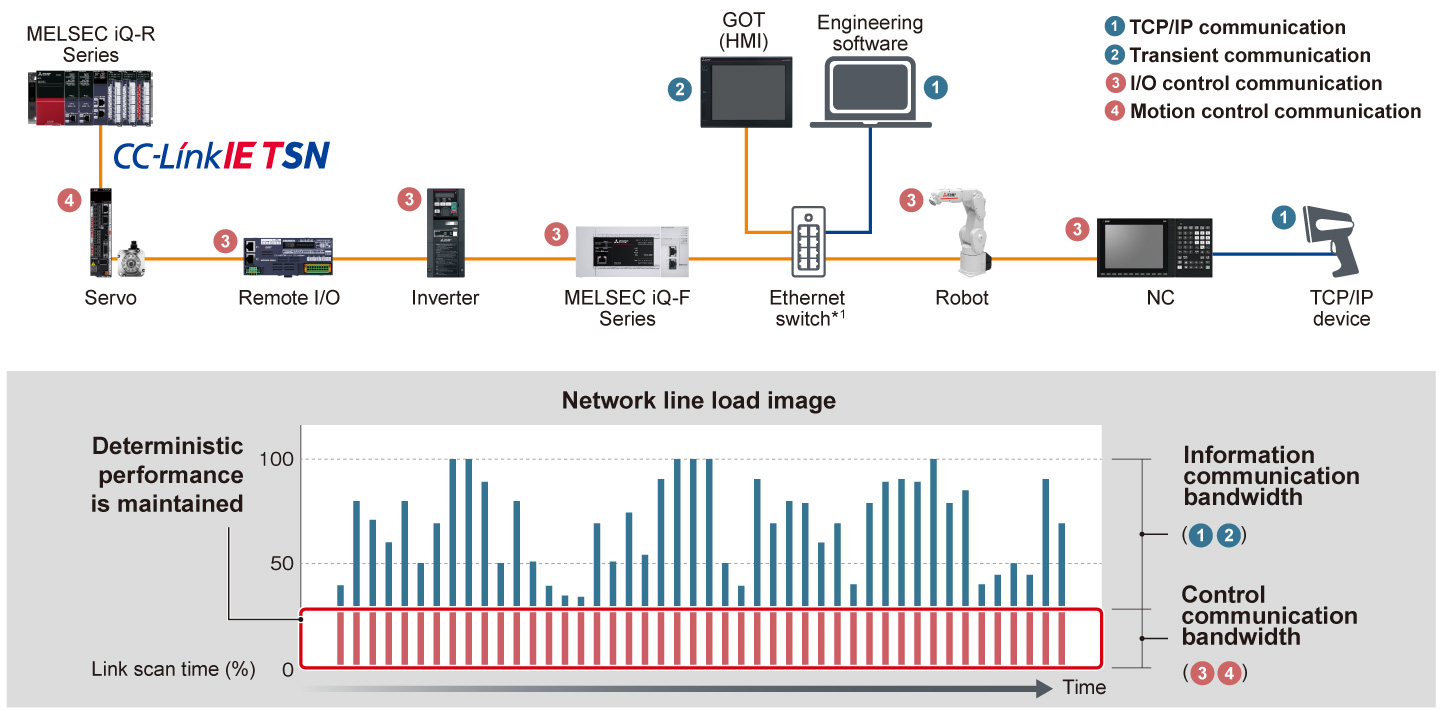

Deterministic control even when mixed with TCP/IP communication

  • Mixed TCP/IP communication
  • IIoT system
  • Deterministic performance of cyclic communication is maintained even when mixed with slower information data (non real-time)
  • TCP/IP communication devices can be used without affecting overall control

*Some devices cannot be connected to CC-Link IE TSN depending on the system configuration.

Deterministic control even when mixed with TCP/IP communication

*1.Class B managed Ethernet switch supporting CC-Link IE TSN recommended by the CC-Link Partner Association

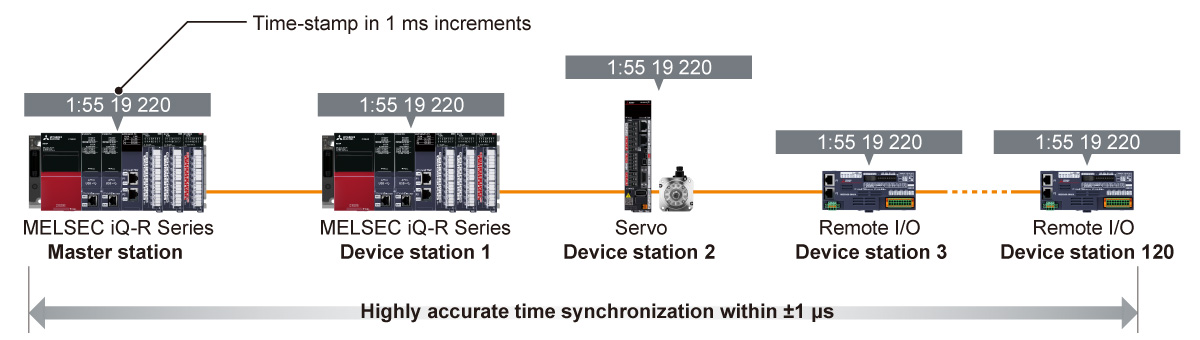

Error cause analysis with highly precise time synchronization

  • Time-series analysis
  • Synchronized communication
  • Highly accurate time synchronization accuracy within ±1 µs and each station connected to the network sharing time-stamp information in 1 ms increments improves system diagnostics and troubleshooting by enabling sequential analysis of stations in the network
  • The error history is displayed consecutively based on time-stamp data, enabling accurate analysis of the cause of error using the actual time the event occurred

Error cause analysis with highly precise time synchronization

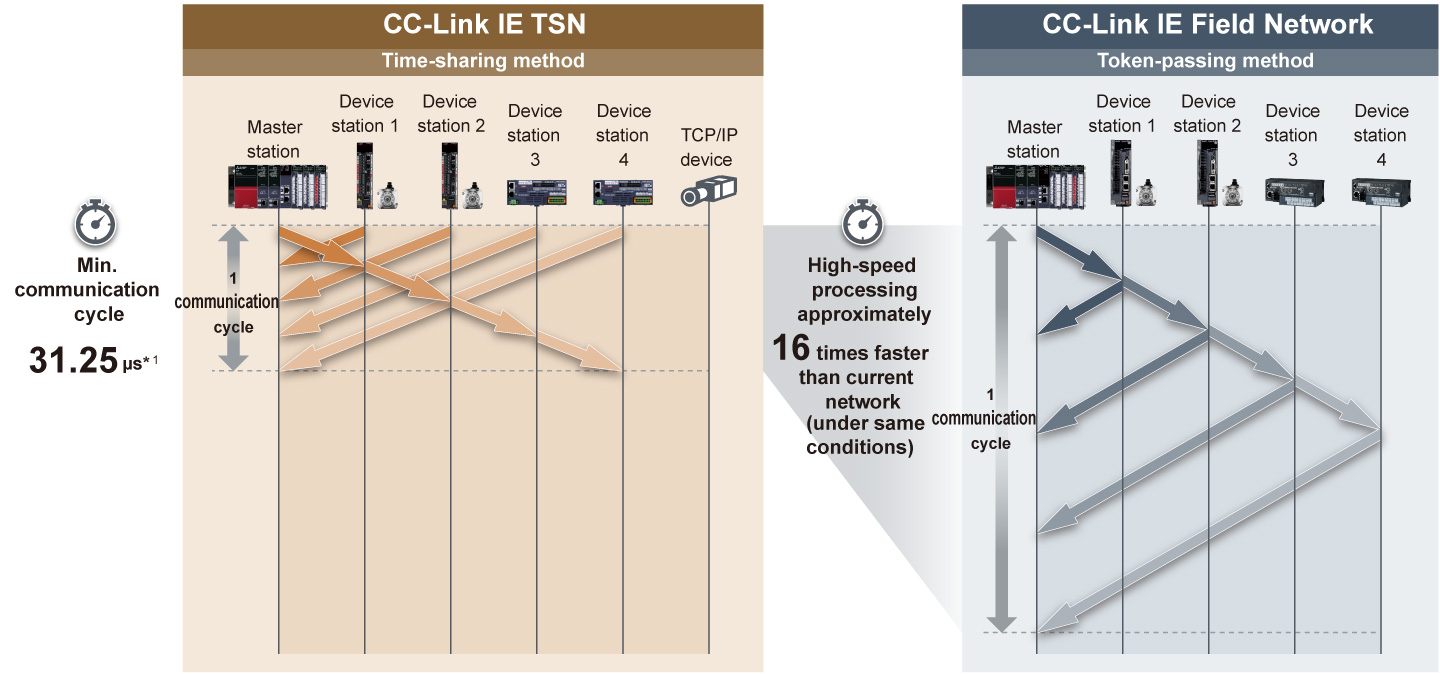

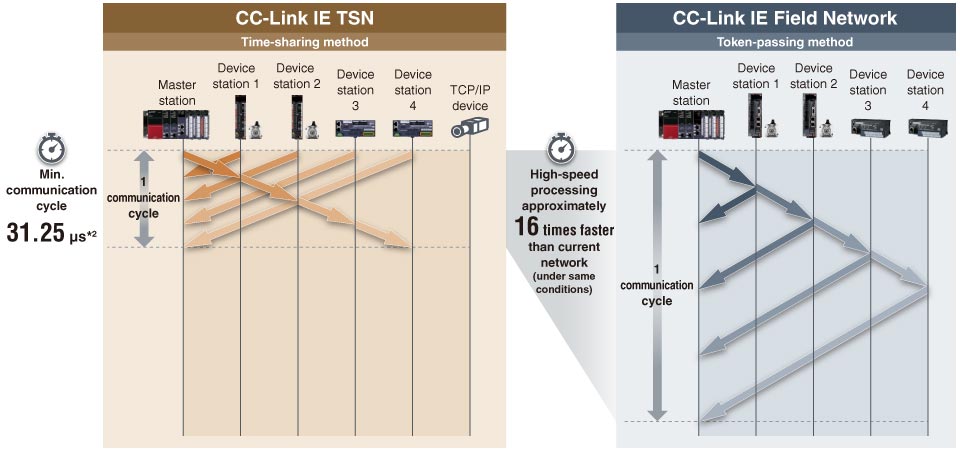

Reducing overall operating time with high-speed link scan

  • Min. communication cycle 31.25 µs *2
  • High-speed processing 16 x *3 faster
  • Link points 2 x *4
  • The advanced protocol built into CC-Link IE TSN is complemented by the time-sharing method functionality that enables simultaneous communications between network stations
  • Fast communication cycle time of just 31.25 µs*2 and high-speed processing approximately 16 times faster than current network performance are achieved, resulting in high-speed and high-accuracy motion control
  • Productivity is simultaneously improved owing to a substantial increase in control performance, which reduces overall operating time and enables high-speed and large capacity data communication

Reducing overall operating time with high-speed link scan

*2.This value is achieved when fast operation mode of the motion module (RD78GH) is used. Click here for details on MELSEC iQ-R Motion Module User's Manual (Application)

*3.Comparison with CC-Link IE Field Network Motion

*4.Comparison with CC-Link IE Field Network

CC-Link IE TSN master/local module specifications

Item RJ71GN11-T2*5
Compatible network CC-Link IE TSN
Communication speed (bps) 1G/100M
Maximum stations per network*6 121
Network topology*7 Line, star*8, ring
Connection cable Ethernet cable (Category 5e or higher)
Max. station-to-station distance (m) 100
Overall cable distance (m) Line: 12000
Ring: 12100
Others: depends on the system configuration
Maximum link points per network
Remote input (RX), remote output (RY) 16384 points, 2KB
Remote register (RWr, RWw) 8192 points, 16KB
Link relay (LB) 32768 points, 4KB
Link register (LW) 16384 points, 32KB

*5.For restrictions on the system configuration, please refer to the "MELSEC iQ-R CC-Link IE TSN User's Manual (Startup) (SH-082127ENG)."

*6.Includes a master station.

*7.Please use a managed Ethernet switch supporting CC-Link IE TSN (class B) recommended by the CC-Link Partner Association for the CC-Link IE TSN master/local module (RJ71GN11-T2) and CC-Link IE TSN Plus master/local module (RJ71GN11-EIP).

*8.Line topology and star topology can be mixed.

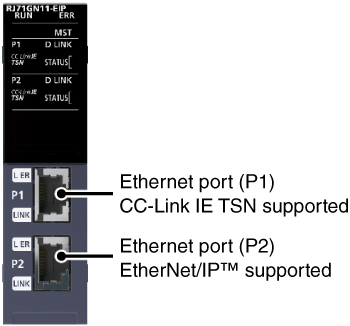

CC-Link IE TSN Plus master/local module

  • EtherNet/IP™ devices can be utilized without affecting CC-Link IE TSN performance.

  • RJ71GN11-EIP
    • RJ71GN11-EIP

    CC-Link IE TSN

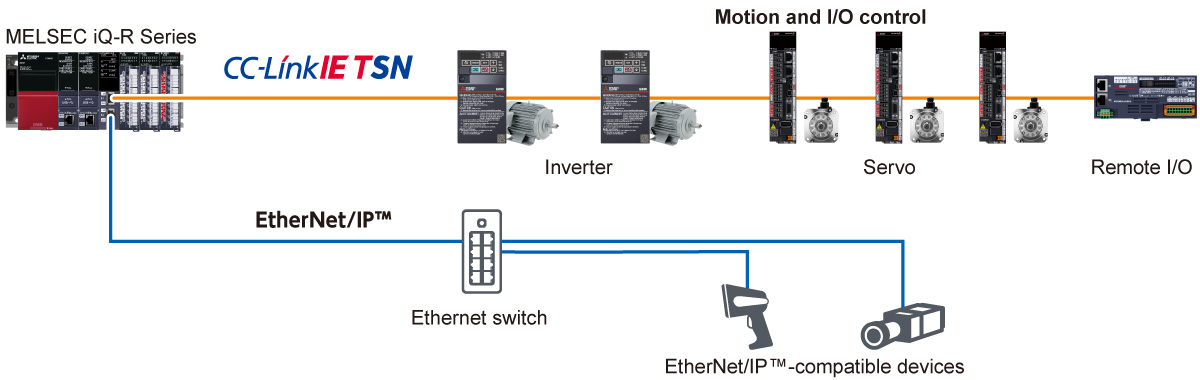

Utilize other network devices

  • Utilize EtherNet/IP™ devices
  • Utilize EtherNet/IP™ devices while maintaining high-speed/high-accuracy CC-Link IE TSN communication
  • Both networks are easily settable within the engineering software GX Works3
  • Socket communication is supported, allowing devices that do not support SLMP via general Ethernet to be connected

Utilize other network devices

CC-Link IE TSN Plus master/local module specifications

Item RJ71GN11-EIP
Compatible network CC-Link IE TSN
EtherNet/IP™
Communication speed (bps) 1G/100M
Maximum stations per network*9 121
Network topology*10 Line*11, star*12
Connection cable Ethernet cable (Category 5e or higher)
Max. station-to-station distance (m) 100
Overall cable distance (m) Line: 12000
Others: depends on the system configuration
Maximum link points per network
Remote input (RX), remote output (RY) 16384 points, 2KB
Remote register (RWr, RWw) 8192 points, 16KB
Link relay (LB) 32768 points, 4KB
Link register (LW) 16384 points, 32KB
EtherNet/IP™ communications
Data transmission speed (bps) 1G/100M
Class 1
communications
Number of connections
  • Instance communications: 256*13
  • Tag communications: 256*13
Communication data size (byte) 1444 (per connection)*14
RPI (communication cycle) (ms) 0.5…60000 (in increments of 0.5 ms)
PPS (communication processing performance)*15 (pps) 12000
UCMM
communications
Number of connections
(number of simultaneous executions)
  • Server: 96*13*16
  • Client: 32
Communication data size (byte)
  • Message communications: 504 (including headers)
  • Tag communications: 498
Class 3
communications
Number of connections
  • Server: 96*13*16
  • Client: 256*13
Communication data size (byte)
  • Message communications: 1404 (per connection)
  • Tag communications: 496 (per connection)

*9.Includes a master station.

*10.Please use a managed Ethernet switch supporting CC-Link IE TSN (class B) recommended by the CC-Link Partner Association for the CC-Link IE TSN master/local module (RJ71GN11-T2) and CC-Link IE TSN Plus master/local module (RJ71GN11-EIP).

*11.The CC-Link IE TSN Plus master/local module (RJ71GN11-EIP) can only be connected at the end of the network.

*12.Line topology and star topology can be mixed.

*13.The total number of connections for Class 1 communications, UCMM tag communications (server function), and Class 3 communications is 256. Therefore, the number of each connection varies depending on the number and size of separate communications.

*14.If the external device does not support Large Forward Open (CIP option specifications), the communication data size is up to 504 bytes.

*15.PPS: Number of frames that can be processed per second

*16.The maximum number of simultaneous executions (the number of connections that can be received simultaneously) for the server function is 96 for the total of UCMM and Class 3 communications server functions.
