Position Board System Configuration
MR-MC341/MR-MC200 Series

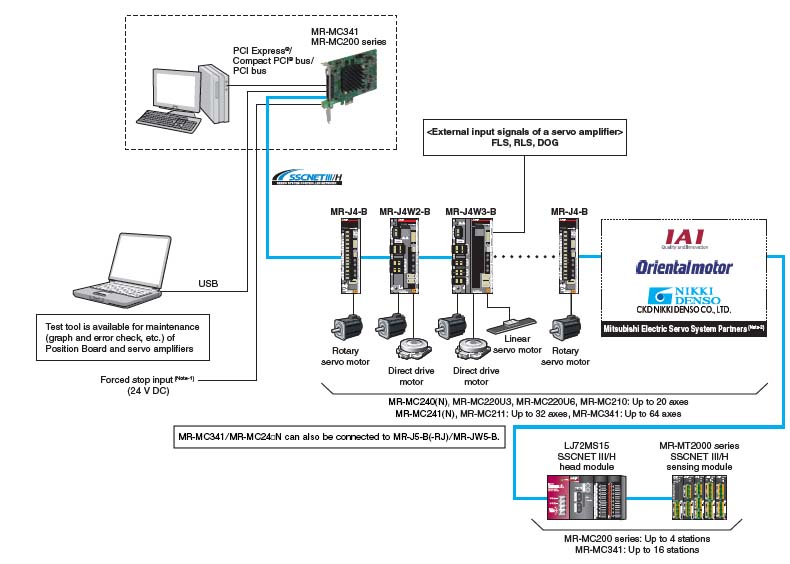

System Configuration
- (Note-1): When using an external forced stop with MR-MC200 series, prepare the forced stop input connector separately.
- (Note-2): Contact your local Mitsubishi Electric office for details.
