Simple Motion module System Configuration
QD77GF

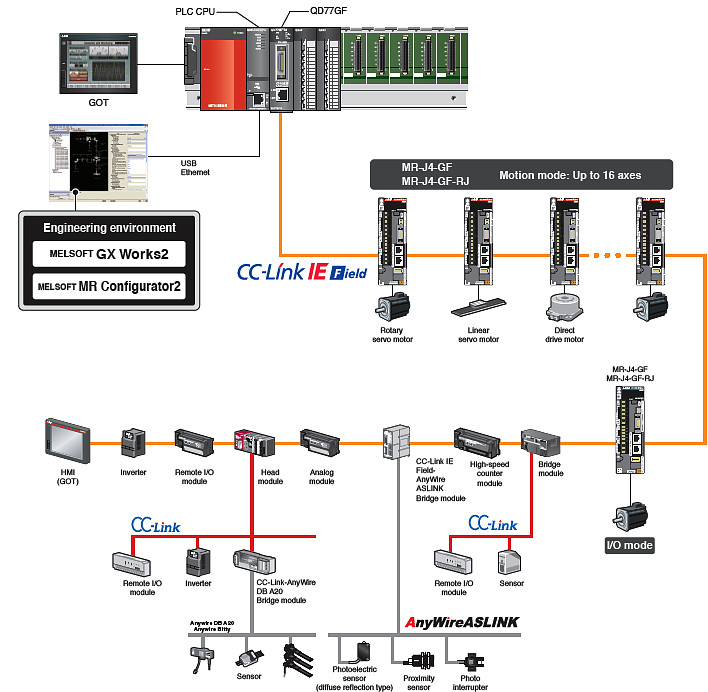

System Configuration
Device station: Up to 120 stations (16 motion mode compatible servo amplifiers + 104 I/O devices)
(Note): A switching hub is required for star topology.
