Motion Control Software SWM-G System Configuration

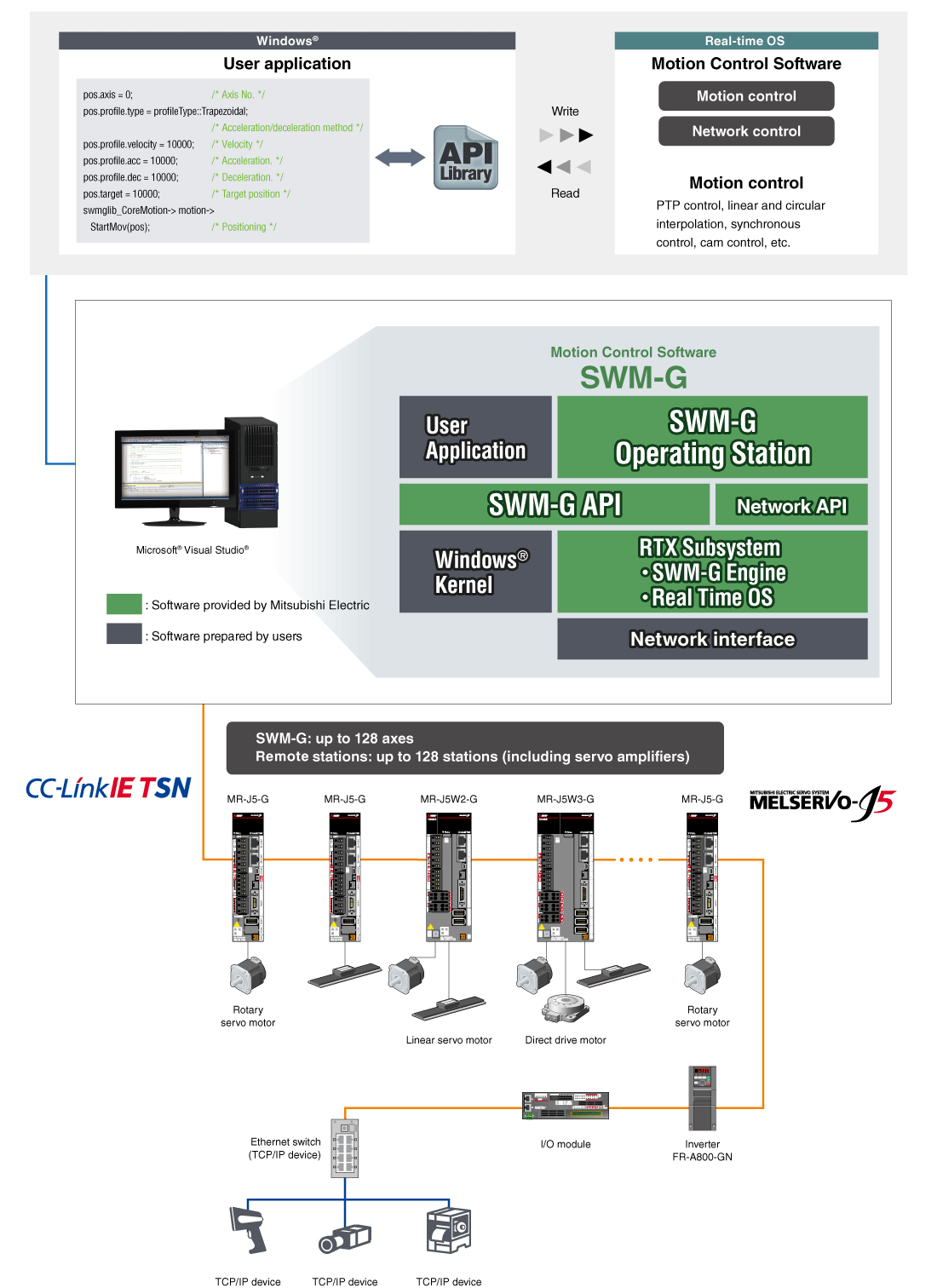

System Configuration
SWM-G Motion Control Software executes motion control while functioning as a master station of CC-Link IE TSN. *1
This feature enables users to create a system more flexibly by connecting various devices, such as servo amplifiers, remote I/O
modules, and TCP/IP devices, to SWM-G.
High-speed control is achieved even when control at low- and high-speed communication cycles is mixed within the same control
communication.
- *1The following functions are not provided: sub-master station, local station, multi-master configuration, backup/restore function, data communication function with standard stations, and safety communication.
- *2The multi-axis servo amplifier can control multiple axes with one station occupied. (The number of virtual axes is not included in the number of controllable axes.)
