MELSERVO-J5 Series Rotary Servo Motor Model Designation

HK-KT Series (Low Inertia, Small Capacity) (Note 2)

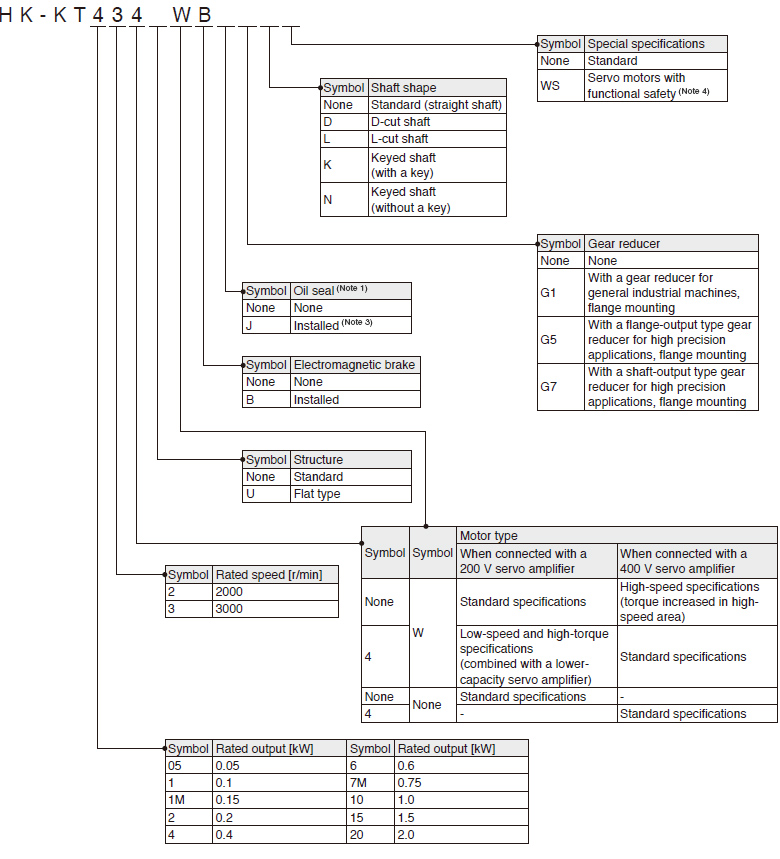

Model Designation HK-KT Series

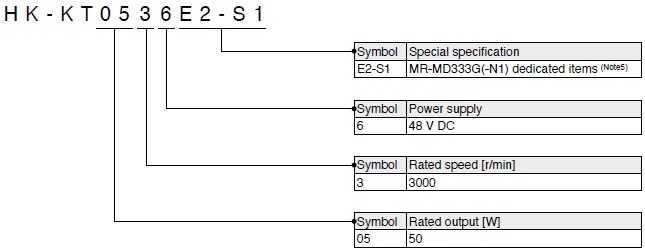

Model Designation HK-KT0 Series
  • Notes:
  • 1.  The dimensions are the same regardless of whether or not an oil seal is installed.
  • 2.  This section describes what each symbol in a model name indicates. Some combinations of symbols are not available.
  • 3.  A geared servo motor with an oil seal installed is not available.
  • 4.  The dimensions of the servo motors with functional safety are the same as those of the standard servo motors.
  • 5.  The servo motors compatible with MR-MD333G(-N1) also include HG-AK series. For details, refer to MELSERVO-J4 .

HK-MT Series (Ultra-Low Inertia, Small Capacity) (Note 2)

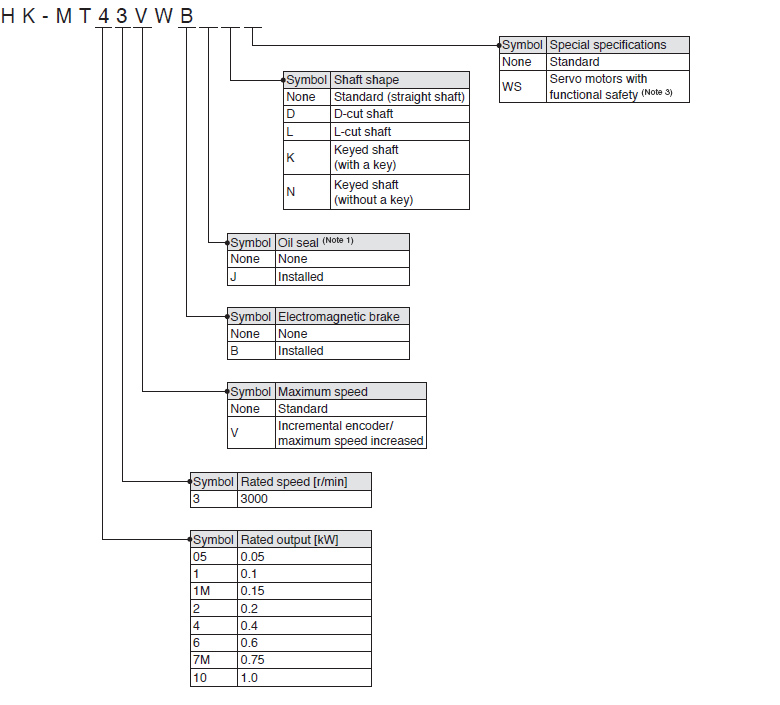

Model Designation HK-MT Series
Notes:
  1. 1.  The dimensions are the same regardless of whether or not an oil seal is installed.
  2. 2.  This section describes what each symbol in a model name indicates. Some combinations of symbols are not available.
  3. 3.  The dimensions of the servo motors with functional safety are the same as those of the standard servo motors.

HK-ST Series (Medium Inertia, Medium Capacity) (Note 2)

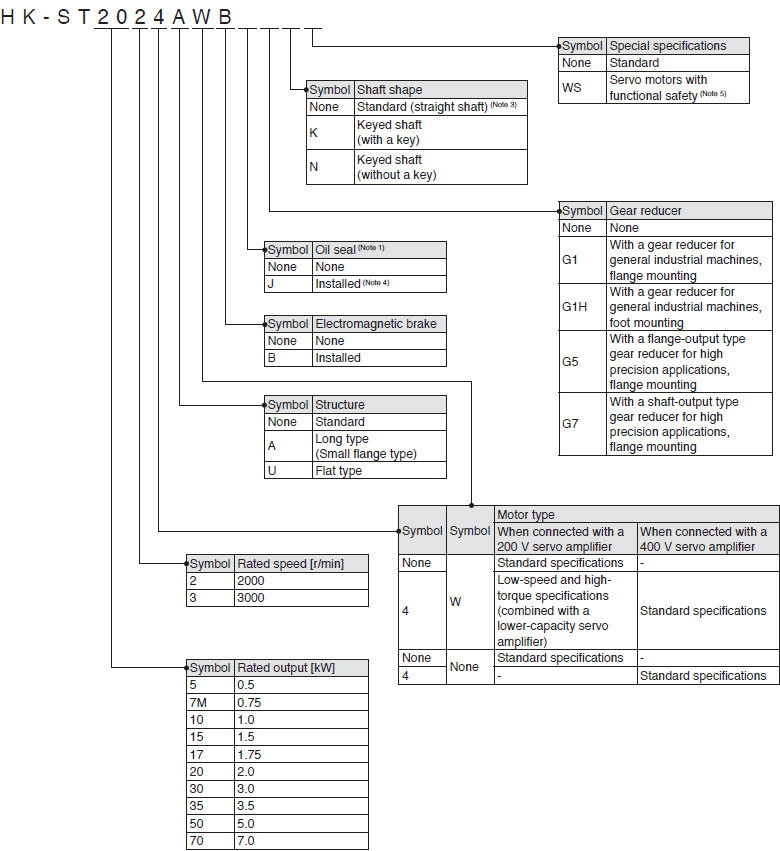

Model Designation HK-ST Series
  • Notes:
  • 1.  The dimensions are the same regardless of whether or not an oil seal is installed.
  • 2.  This section describes what each symbol in a model name indicates. Some combinations of symbols are not available.
  • 3.  The standard HK-ST G1/G1H servo motors have a keyed shaft (with a key).
  • 4.  A geared servo motor with an oil seal installed is not available.
  • 5.  The dimensions of the servo motors with functional safety are the same as those of the standard servo motors.

HK-RT Series (Ultra-Low Inertia, Medium Capacity) (Note 2)

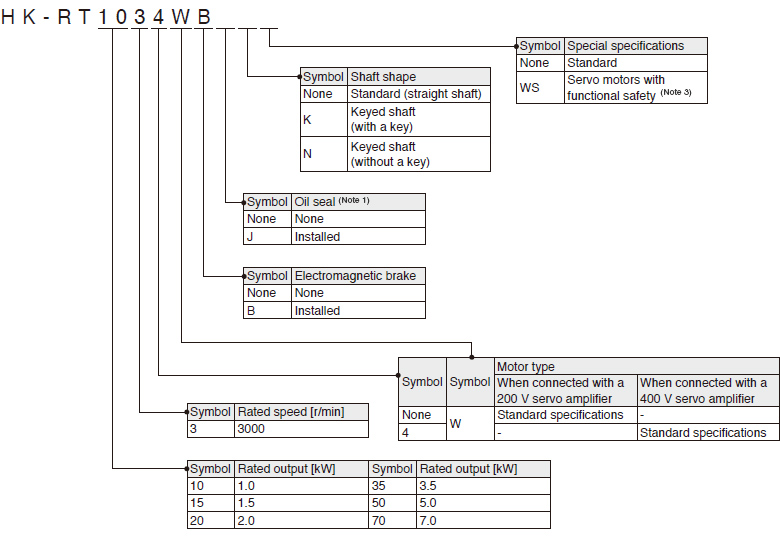

Model Designation HK-RT Series
  • Notes:
  • 1.  The dimensions are the same regardless of whether or not an oil seal is installed.
  • 2.  This section describes what each symbol in a model name indicates. Some combinations of symbols are not available.
  • 3.  The dimensions of the servo motors with functional safety are the same as those of the standard servo motors.

HK-JT series (Low Inertia, Medium/Large Capacity) (Note 1)

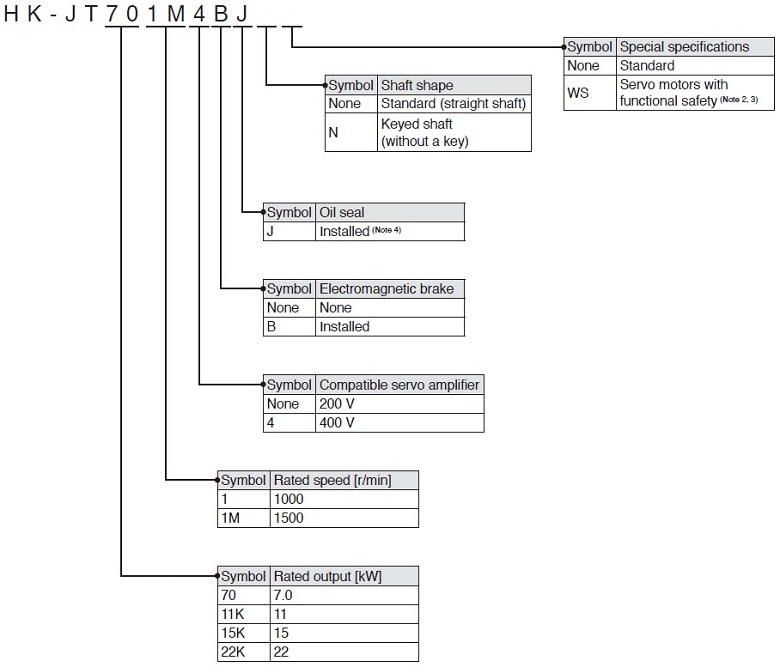

Model Designation HK-JT Series
  • Notes:
  • 1.  This section describes what each symbol in a model name indicates. Some combinations of symbols are not available.
  • 2.  The dimensions of the servo motors with functional safety are the same as those of the standard servo motors.
  • 3.  Available only with the servo motors with the rated speed of 1500 r/min.
  • 4.  Oil seal is installed in HK-JT series as standard.
