MELSERVO-JET Series Linear Servo Motor Thrust Characteristics

LM-H3 Series

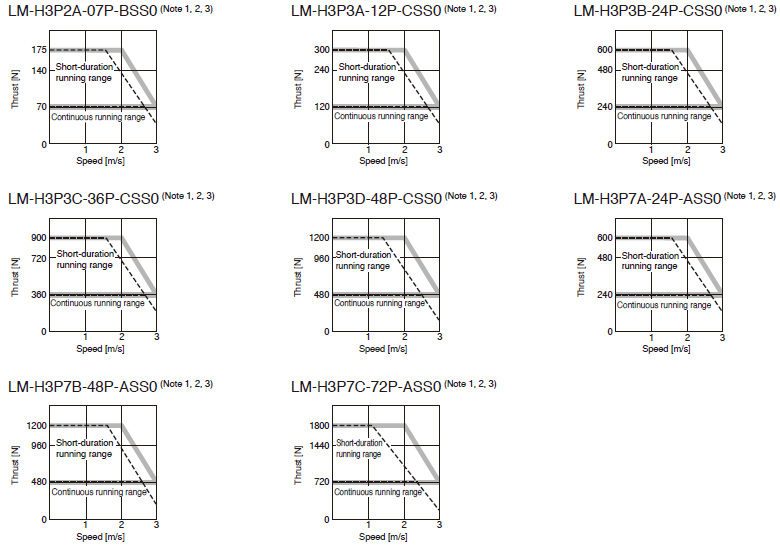

LM-H3 Series Thrust Characteristics
  • Notes:
  • 1.  3-phase 200 V AC : For 3-phase 200 V AC.
  • 2.  1-phase 200 V AC : For 1-phase 200 V AC.
  • 3.  Thrust drops when the power supply voltage is below the specified value.

LM-AJ Series

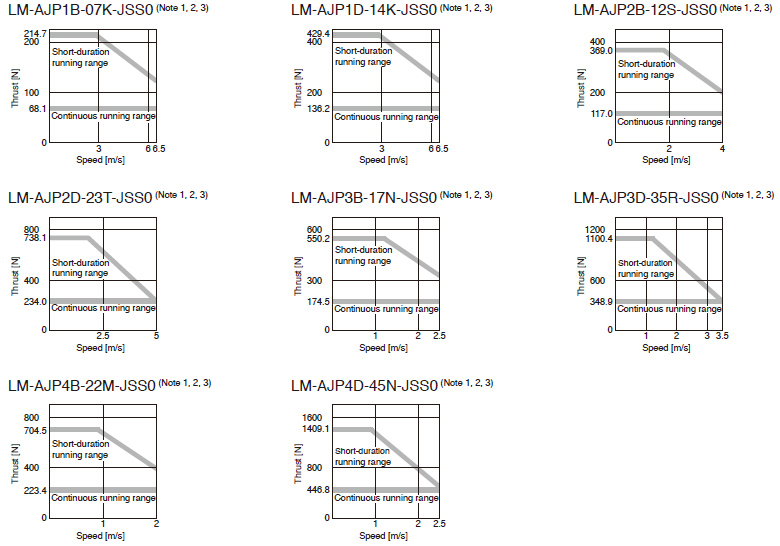

LM-AJ Series Thrust Characteristics
  • Notes:
  • 1.  3-phase 200 V AC : For 3-phase 200 V AC.
  • 2.  Contact your local sales office for the thrust characteristics for 1-phase 200 V AC.
  • 3.  Thrust drops when the power supply voltage is below the specified value.

LM-AU Series

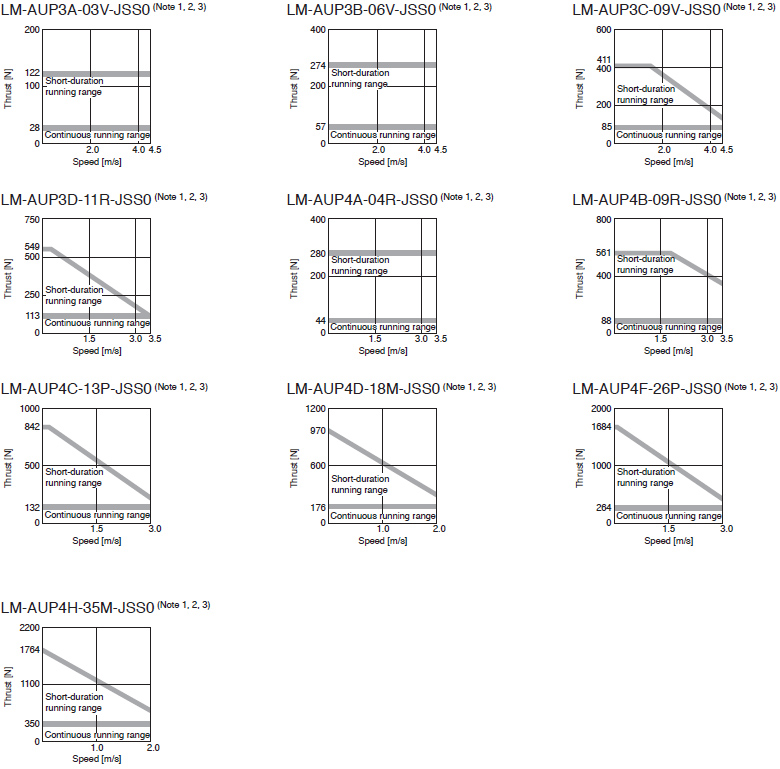

LM-AU Series Thrust Characteristics
  • Notes:
  • 1.  3-phase 200 V AC : For 3-phase 200 V AC.
  • 2.  Contact your local sales office for the thrust characteristics for 1-phase 200 V AC.
  • 3.  Thrust drops when the power supply voltage is below the specified value.

* The characteristics and numerical values without tolerances are representative values.
