MELSEC iQ-F SeriesFX5-CCL-MS   Specifications

FX5UJ CPU module (From the first)
FX5U CPU module (Ver.1.050 or later)
FX5UC CPU module* (Ver.1.050 or later)
* Connection with FX5UC CPU module requires FX5-CNV-IFC or FX5-C1PS-5V.

FX5UJ CPU module: GX Works3 (Ver.1.060N or later)
FX5U/FX5UC CPU module: GX Works3 (Ver.1.035M or later)

8 points

Approx. 0.3 kg

Broadcast polling method

Bus (RS-485)

・Master station: Selected from 156 kbps/625 kbps/2.5 Mbps/5 Mbps/10 Mbps
・Intelligent device station: Selected from 156 kbps/625 kbps/2.5 Mbps/5 Mbps/10 Mbps/Auto-tracking

1200 m maximum (varies depending on the transmission speed.)

HDLC compliant

Frame synchronization method

NRZI method

CRC (X¹⁶+X¹²+X⁵+1)

Master station or intelligent device station

・Master station: 0
・Intelligent device station: 1 to 64

Remote I/O station, remote device station and intelligent device station (local station and standby master station cannot be connected)

One unit of each station type can be connected to a CPU module.
・Master station: 1*1
・Intelligent device station: 1*2
*1 When FX5-CCL-MS is being used as the master station, FX3U-16CCL-M cannot be used.
*2 When FX5-CCL-MS is being used as the intelligent device station, FX3U-64CCL cannot be used.

FX5UJ CPU module:
・Remote I/O stations: 6 maximum
(The total number of I/O points of remote I/O station is 192 or less.)
・The total number of remote device stations +intelligent device stations: 8 maximum
(For each remote device station + intelligent device station, the total number of I/O points are 256 points or less)
FX5U/FX5UC CPU module:
・Remote I/O stations: 14 maximum
(The total number of I/O points of remote I/O station is 448 or less.)
・The total number of remote device stations +intelligent device stations: 14 maximum
(For each remote device station + intelligent device station, the total number of I/O points are 448 points or less)
The number of stations and points that can be used differs depending on the version of the CPU module used.

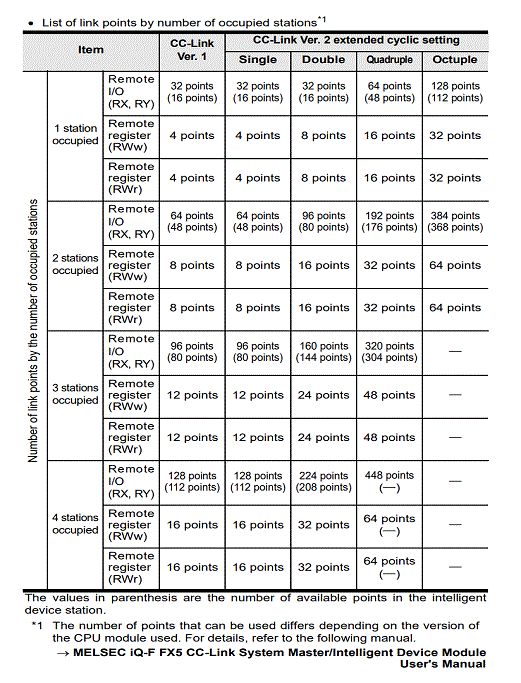

1 to 4 stations (The number of stations can be changed using the engineering tool.)

FX5UJ CPU module:
・Remote I/O (RX, RY): 448 points (Remote I/O station: 192 points* + remote device station + intelligent device station: 256 points)
・Remote register (RWw): 32 points
・Remote register (RWr): 32 points
FX5U/FX5UC CPU module:
・Remote I/O (RX, RY): 896 points (Remote I/O station: 448 points* + remote device station + intelligent device station: 448 points)
・Remote register (RWw): 56 points
・Remote register (RWr): 56 points
The number of stations and points that can be used differs depending on the version of the CPU module used
*The number of available remote I/O points per system varies depending on the number of I/O points of the extension devices.

FX5UJ CPU module:
・Remote I/O (RX, RY): 448 points (Remote I/O station: 192 points*4 + remote device station + intelligent device station: 256 points)
・Remote register (RWw): 64 points
・Remote register (RWr): 64 points
FX5U/FX5UC CPU module:
・Remote I/O (RX, RY): 896 points (Remote I/O station: 448 points*4 + remote device station + intelligent device station: 448 points)
・Remote register (RWw): 112 points
・Remote register (RWr): 112 points
The number of stations and points that can be used differs depending on the version of the CPU module used
*The number of available remote I/O points per system varies depending on the number of I/O points of the extension devices.

Ver. 1.10 compatible CC-Link dedicated cable

Ver. 2.00 (Ver. 1.10 also supported.)

24 V DC +20%, -15%

Operation continues for an instantaneous power failure of 1 ms or less.

100 mA

500 V AC for one minute

10 MΩ or higher by 500 V DC insulation resistance tester
