MELSEC iQ-F SeriesFX5-32ER/DS Specifications
Performance specifications
| Applicable CPU module | |
| Mass (weight) | |
| Power supply specifications | |
| Rated voltage | |
| Voltage fluctuation range | |
| Allowable instantaneous power failure time | |
| Power fuse | |
| Rush current | |
| Power consumption | |
| 24 V DC built-in power supply capacity | |
| 5 V DC built-in power supply capacity | |
| Input specifications | |
| No. of input points | |
| Input connection type | |
| Input type | |
| Input signal voltage | |
| Input signal current | |
| Input impedance | |
| Input sensitivity current | ON |
| OFF | |
| Input response time | |
| Input signal format (Input sensor form) | |
| Input circuit insulation | |
| Indication of input operation | |

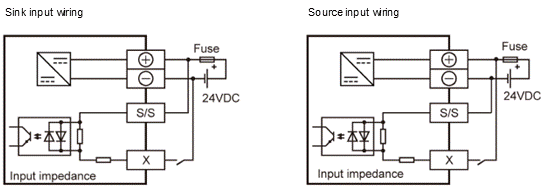

| Input circuit configuration | |
| Output specifications | |
| No. of output points | |
| Output connection type | |
| Output type | |
| External power supply | |
| Max. load | |
| Min. load | |
| Open circuit leakage current | |
| Response time | OFF→ON |
| ON→OFF | |
| Output circuit insulation | |
| Indication of output operation | |
| Output circuit configuration | |
FX5UJ CPU module (DC power supply type) FX5U CPU module (DC power supply type), FX5UC CPU module* * FX5-CNV-IFC or FX5-C1PS-5V is necessary to connect to the FX5UC CPU module. |
Approx. 0.65 kg |
24 V DC |
-30%, +20% |
Operation can be continued upon occurrence of instantaneous power failure for 5 ms or less. |
250 V, 3.15 A time-lag fuse |
50 A max. 0.5 ms or less/24 V DC |
25 W This item shows value when all 24 V DC built-in power supplies are used in the maximum configuration connectable to the powered input/output module. (The current of the input circuit is included.) |
310 mA When input modules are connected, they consume current from the 24 V DC built-in power supply. |
965 mA |
16 points |
Screw terminal block (M3 screws) |
Sink/source |
24 V DC +20%, -15% |
4.0 mA/24 V DC |
5.6 kΩ |
3.0 mA or more |
1.5 mA or less |
ON: 50 μs or less OFF: 150 μs or less |
No-voltage contact input Sink: NPN open collector transistor Source: PNP open collector transistor |
Photo-coupler insulation |
LED is lit when input is on |
16 points |
Screw terminal block (M3 screws) |
Relay output |
30 V DC or less 240 V AC or less (250 V AC or less when the module does not comply with CE UL, cUL standards) |
2 A/point The total load current of resistance loads per common terminal should be the following value. • 4 output points/common terminal: 8 A or less |
5 V DC, 2 mA (reference values) |
－ |
Approx. 10 ms |
Approx. 10 ms |
Mechanical insulation |
LED is lit when output is on |
General specifications
| The generic specifications are the same as those for the CPU module. |
