FA Application Package iQ Monozukuri ANDON

iQ Monozukuri ANDON　ANDON system achieves visualization of production sites

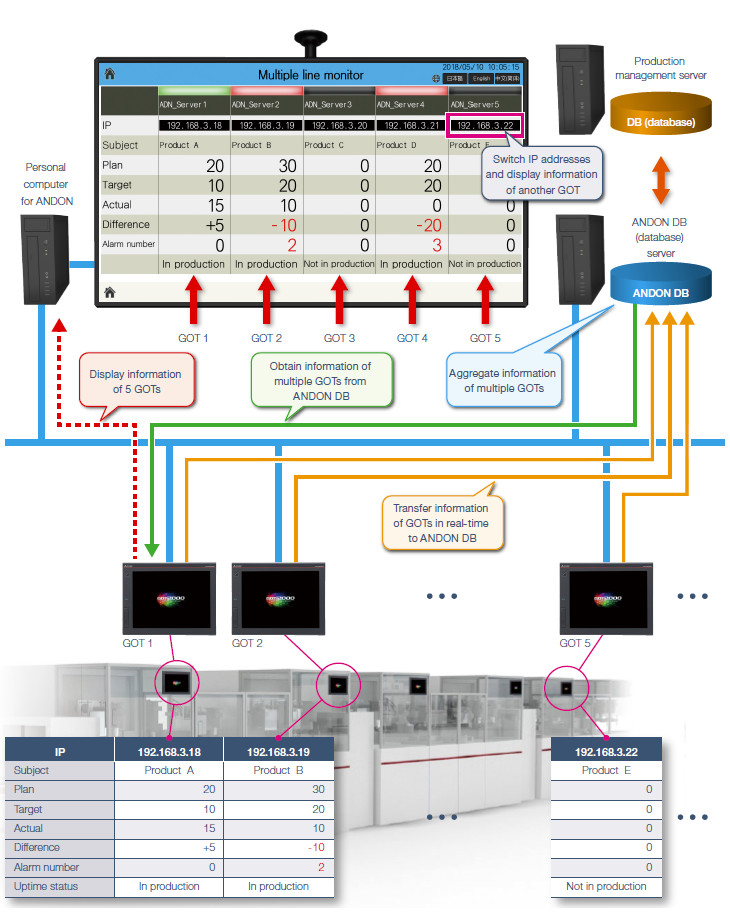

Monitor multiple devices with ANDON DB (database)
NEW

The production information of multiple lines is collected in real-time in ANDON DB (database), and displayed on the ANDON monitor by transferring the data via GOT. By using the stored procedure function of ANDON DB (database), the data can be linked* with the production management server.

  • * For how to obtain and customize the production information from the production management server, it is recommended to consult with the system designer of the server.
Monitor multiple devices with ANDON DB (database)
  • * To use DB (database) mode, iQ Monozukuri ANDON version 1.002C or later and the MES Interface function license are required for each GOT.
page top

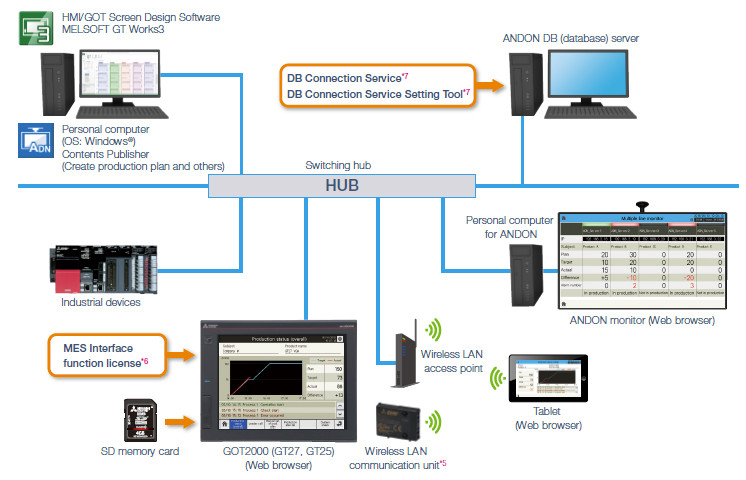

System configuration example <DB (database) mode*1 [NEW]>

iQ Monozukuri ANDON
iQ Monozukuri ANDON*1*2*3
1. Contents Publisher
2. Project file of the GOT for iQ Monozukuri ANDON (template screens)
3. ANDON DB creation tool*4
4. GOT Mobile Function License
5. License for iQ Monozukuri ANDON
  • *1 To use DB (database) mode, iQ Monozukuri ANDON version 1.002C or later is required.
  • *2 Used by transferring to a personal computer, GOT2000 or an SD memory card.
  • *3 1 license is required for 1 GOT unit.
  • *4 Included with iQ Monozukuri ANDON version 1.002C or later.
System configuration exampl<DB (database) mode>
Items required for using DB (database) mode
1. ANDON DB (database) server
2. MES Interface function license*6
3. DB Connection Service*7
4. DB Connection Service Setting Tool*7
  • *5 Cannot be used with GT2505 or GT25 handy models.
  • *6 1 license is required for 1 GOT unit.
  • *7 DB Connection Service and DB Connection Service Setting Tool can be installed from MES DB Connection Service (for GT Works3) that is included in HMI/GOT Screen Design Software MELSOFT GT Works3.

Operating environment of ANDON DB (database) server

Item Description
Personal computer Microsoft® SQL Server® Personal computer to operate 2016 Service Pack 1 Express With Advanced Services (64-bit version only)
CPU Intel® Core™ 4 Core, 2 GHz or more recommended
Required memory 4 GB or more
Hard disk space 20 GB or more
OS (64-bit)
(English version, Simplified Chinese
version, Japanese version)		 Microsoft® SQL Server® OS that supports 2016 Service Pack 1 Express With Advanced Services
