GOT Drive Control (Servo) Interactive Solutions
Support startup and adjustment of servo systems
Servo amplifier monitor function
Having problems?
How can I check the status of servo amplifier easily?
GOT will solve your problems!

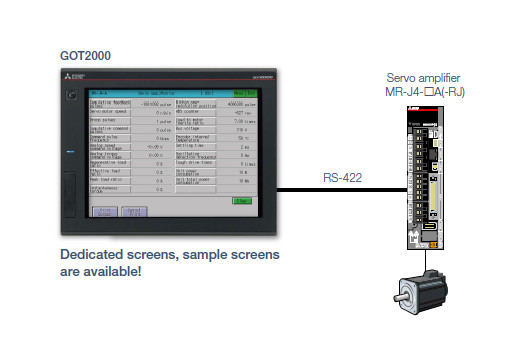

In a system which outputs pulse trains, the GOT can be connected to a servo amplifier in a serial connection to perform the following operations: set up, monitoring, alarm display, diagnosis, parameter setting, and test operations.
Function features
Various monitoring functions, changes to the parameter settings, and test operations can be performed on the servo amplifier connected to the GOT.
Dedicated screens*1
Without creating screens, parameters can be monitored and written from dedicated screens.
*1Not supported by GT21.
Sample screens (VGA) *2
Various sample screens such as monitoring, parameter settings, test operations are available and they are all customizable.
*2Sample screens for GT21 are available for GT2104-RTBD.
Specification details and restrictions
●Target models
MELSERVO-J4 Series (MR-J4-A(-RJ))
*Supported functions of the servo amplifier monitor vary depending on the servo amplifier model.
●Supported connection types
Direct connection with a servo amplifier
●How to obtain sample screens
Sample screens are included in GT Works3. For the details, please contact your local sales office.
The sample screens are supported by the following GT Works3 versions.
MR-J4-A(-RJ): Ver.1.126G or later.
Recommended industries
Supported GOT types
- *Restrictions apply to some functions. For the details, refer to the function descriptions above.
Supported devices
