GOT2000 Series

Maintenance, Troubleshooting and Diagnostics Features

Easy debugging

FA transparent function

Having problems?
Having problems?

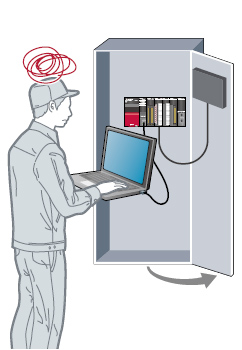

It's bothersome to open the cabinet every time I setup or adjust the device. For the safety reason, I don't want to open the cabinet and change cable connections.

GOT will solve your problems!
GOT will solve your problems!

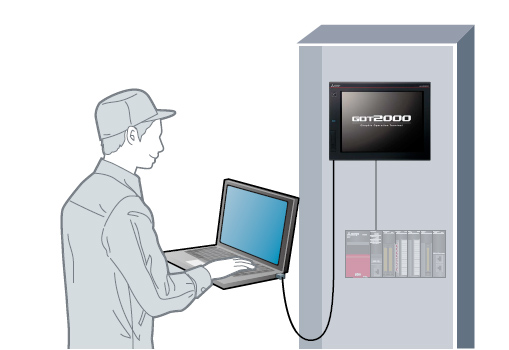

Without opening the cabinet and by only connecting a personal computer to the front USB interface on the GOT, you can use the GOT as a transparent gateway to enable programming, startup, and adjustment of industrial devices.

Function features

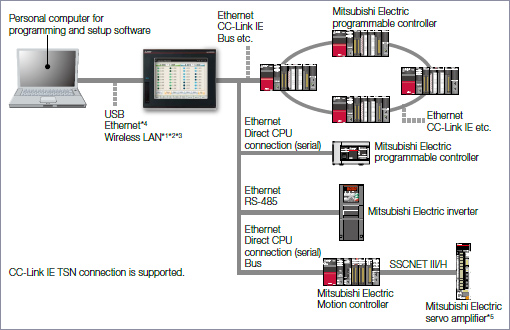

By connecting a personal computer to the front USB interface on the GOT, you can use the GOT as a transparent gateway to enable programming, startup, and adjustment of industrial devices.
Users do not have to bother with opening the electrical cabinet or changing cable connections.

Function features
  • *1 Not supported by GT2505, GT25 handy, GT23, GT21, and GS21.
  • *2 Installation of the wireless LAN communication unit (GT25-WLAN) is required on the GOT.
  • *3 For the countries where the wireless LAN communication unit can be used and other details, please see here.
  • *4 Not supported by GT2505, GT25 handy, GT23, GT21, and GS21 when the GOT is connected to controllers via Ethernet connection.
  • *5 GT21 and GS21 do not support connection to Mitsubishi Electric servo amplifiers.

Transferring data via a programmable controller

Transfer data from a personal computer to the GOT2000 with a programmable controller acting as a gateway.
Changing project data during startup or maintenance is now easier than ever.

  • * Not supported by GT21 and GS21.
Transferring data via a programmable controller

Specification details and restrictions

● Supported devices, connection types, and compatible software
For the details, please refer to the relevant product manual.
Recommended industries
Automotive
SEMICON, LCD
Electronics
F & B
Pharma
Plant
Supported GOT types * Restrictions apply to some functions. For the details, refer to the function descriptions above.
GT27
GT25*
GT23*
GT21*
GS21*
SoftGOT
Supported devices
PLC
Servo
Inverter
Robot
CNC
