GOT2000 Series

GOT Easy Drive Control (Servo) Interactive Solutions

Graphically monitor servo systems GOT Drive

System launcher (servo network) function

Having problems?
Having problems?

How can I check the status of servo systems on GOT?

GOT will solve your problems!
GOT will solve your problems!

A graphical configuration diagram indicates the status of servo amplifier.

Function features

GOT generates the servo network configuration diagram for the number of used axes so that the servo system can be checked in a graphical screen. By starting the drive recorder from the servo network configuration diagram, you can quickly identify the error cause and solve the problem.

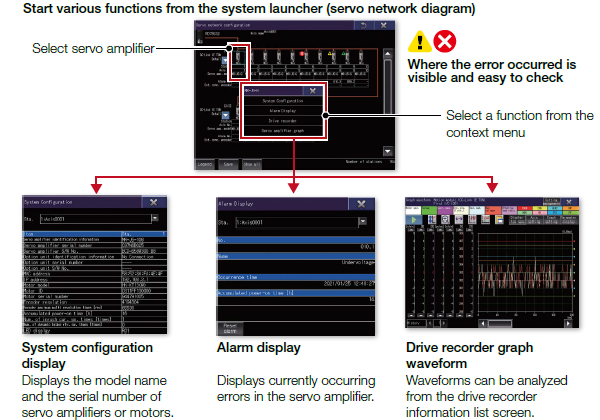

Start various functions from the system launcher (servo network diagram)

Function features

Specification details and restrictions

● Target models
MELSERVO-J4 Series (MR-J4-□B(-RJ), MR-J4W2-□B, MR-J4W3-□B)
● Supported connection types*1
Connection via motion controller/Simple Motion module
  • *1 For the details of connectable models of each connection type, please refer to the "Connectable model list" (page 152).
● Extended functions that can be started from the system launcher (servo network)
System launcher, drive recorder, servo amplifier graph
Recommended industries
Automotive
SEMICON, LCD
Electronics
F & B
Pharma
Plant
Supported GOT types
GT27
GT25
GT23
GT21
GS21
SoftGOT
Supported devices
PLC
Servo
Inverter
Sensorless
Robot
CNC
