GOT2000 Series

Support startup and adjustment of inverters

Batch monitor

Having problems?

We want to monitor the inverter status without opening the control panel!

GOT will solve your problems!

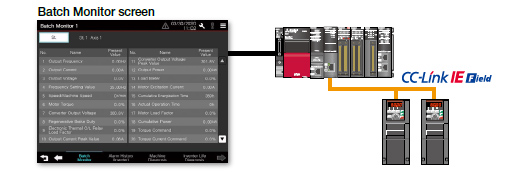

The inverter's current values such as the output frequency, output current, and output voltage can be monitored with the GOT without preparing the personal computer or directly confirming the inverter.

Specification details and restrictions

● Target models

FR-E800(-E), FR-A800(-E), FR-A800(-E)-CRN, FR-A800(-E)-R2R, FR-A800(-E)-AWH, FR-A800(-E)-LC, FR-F800(-E), FR-A800-GF, FR-A800-GN, FR-E700(-NE), FR-D700

● Supported connection types^*1

Direct connection with an inverter, connection via a programmable controller, connection via CC-Link IE Field Network master or local station module, connection via CC-Link IE TSN master or local station module

• *1 For the details of connectable models of each connection type, please refer to the “Connectable model list” (page 152).

● How to obtain sample screens

Sample screens are included in GT Works3. For the details, please contact your local sales office. The sample screens are supported by the following GT Works3 versions. FR-E800(-E): Ver.1.235V or later, FR-F800(-E): Ver.1.205P or later, FR-A800(-E), FR-A800-GF, FR-E700(-NE), FR-D700: Ver.1.200J or later.

Recommended industries

Automotive

SEMICON, LCD

Electronics

F & B

Pharma

Plant

Supported GOT types

GT27

GT25

GT23

GT21

GS21

SoftGOT

Supported devices

PLC

Servo

Inverter

Robot

CNC
