GOT2000 Series

Security & Additional System Features

Quickly change comments

Changing comments without using GT Designer3 [NEW]

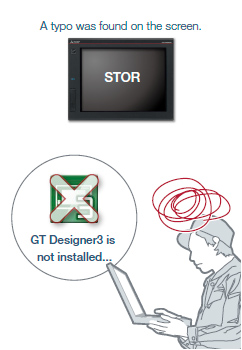

Having problems?

After starting operation, a typo was found on the screen. I need to correct it but there is no personal computer here that has GT Designer3 installed.

GOT will solve your problems!

Even if GT Designer3 is not installed on the personal computer, comments can be edited and the changes can be reflected to GOT immediately. It helps to apply minor changes to comments without editing the project data.

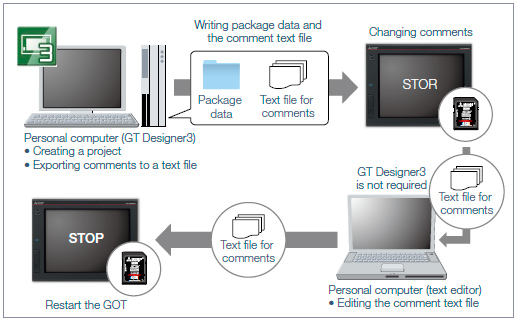

Function features

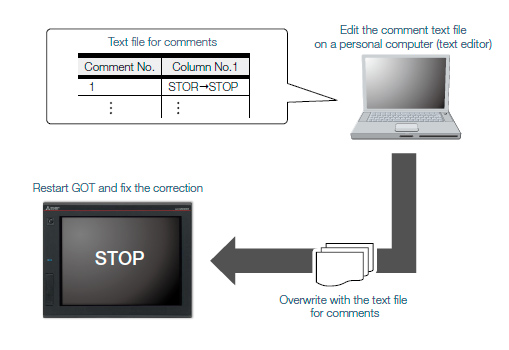

The GOT can display comments by reading a comment text file from the installed data storage. After changing a comment, overwrite the comment text file in the data storage and restart the GOT to display the new comment.

* To display comments from a text file, configure the relevant settings in the project data. For the details, please refer to the GT Designer3 (GOT2000) Screen Design Manual.
* USB memory or SD memory card is required.

Specification details and restrictions

● Influence on the GOT startup time: When this function is used, the GOT reads a comment text file at startup, resulting in a longer startup time. To minimize the increase of the startup time, enable this function only for the comment group in which comments may be changed.
● Font restrictions: Windows^® fonts and HQ fonts are not usable to display the comments of a text file. Even if a Windows^® font or HQ font is specified in the object setting dialog, the GOT displays the comments in a standard font.

Recommended industries: Automotive; SEMICON, LCD; Electronics; F & B; Pharma; Plant
Supported GOT types: GT27; GT25; GT23; GT21; GS21; SoftGOT
Supported devices: PLC; Servo; Inverter; Robot; CNC
