Human-Machine Interfaces (HMIs)-GOT GOT2000 Series

A new style of GOT2000

GT25 model Open frame model
Item Specifications
Display 8.4"/10.4"/12.1", TFT color LCD, 65536 colors
Resolution SVGA, VGA
Backlight White LED
User memory Memory for storage (ROM): 32 MB
Memory for operation (RAM): 80 MB
Standard interface Ethernet, RS-232, RS-422/485
USB host (USB-A): 1 channel (USB 2.0 (High-Speed 480 Mbps))
USB device (USB Mini-B): 1 channel (USB 2.0 (High-Speed 480 Mbps))
SD memory card interface
Extension interface CC-Link IE TSN [NEW], CC-Link IE Control, CC-Link IE Field, CC-Link, bus, MELSECNET/H
Side interface For installing a wireless LAN communication unit

GOT complements machine design

Installing the GOT2000 from the back side of the control panel complements the machine-design surface.
Using a stainless-look environmental protection sheet allows the touch panel to blend into the production machines for the pharmaceutical and food industries.

GOT complements machine design

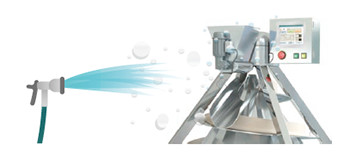

IP67F protection

To conform to IP67F, attach an environmental protection sheet*.
GOT can be operated with wet hands, wiped with a damp cloth, and washed with water.

  • *Note that the structure does not guarantee protection in all users' environments. The GOT may not be used in certain environments where it is subjected to splashing oil or chemicals for a long period of time or soaked in oil mist.
IP67F protection

Suitable for pharmaceutical and food industries

Flush surface without any gaps and grooves prevents dust, dirt, and debris from accumulated on the edge.

Suitable for pharmaceutical and food industries

GT25 open frame model external appearance [front face/rear face]

Open frame model: front face
Open frame model: rear face
①Touch panel Using an environmental protection sheet (optional or prepared by the users) is required.
②Unit installation fitting Fittings to install GOT to a panel are included.
③Extension interface Communication and option units can be installed.
④Ethernet interface Use Ethernet to simultaneously connect up to four types of industrial devices from different manufacturers.
CC-Link IE Field Network Basic compatible devices can also be connected.
⑤RS-232 interface Connect to various industrial devices, barcode readers and serial printers.
⑥RS-422/485 interface Connect to various industrial devices and barcode readers.
⑦Side interface Install a wireless LAN communication unit.
⑧SD memory card interface Save large volumes of data, including alarms and logging data.
⑨USB interface:
device (USB Mini-B)
Connect to a personal computer and transfer data.
⑩USB interface: host (USB-A) Transfer project data or read the data (logging data, etc.) to or from the GOT using the USB memory.
A USB mouse, keyboard, barcode reader*, or RFID reader* can also be connected.

*USB keyboard (HID) compatible model only

⑪POWER LED Check the power supply status.

Easy installation

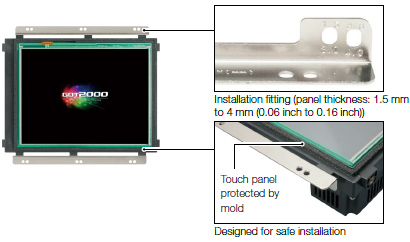

Adjustable to various panels

The installation fitting is adjustable from 1.5 mm to 4 mm of the control panel thickness.
GOT can adjust the difference of the control panel thickness. Vertical installation is also available.

Designed for safe installation

The edge of the touch panel is protected to prevent damage to the touch panel or injury by touching the sharp edge. It is possible to safely install the GOT.

Adjustable to various panels/Designed for safe installation

Dedicated installation fittings

Attach appropriate installation fittings (vertical/horizontal) depending on the installation orientation.

Dedicated installation fittings
  • *An environmental protection sheet (optional or prepared by the users), studs and screws (prepared by the users) are required separately.

GT25 open frame model model product map
