GOT3000 Series　GT37 model Remote Solutions

Remote Solutions

Improve work efficiency from startup to maintenance with remote monitoring.

Monitor according to your requirements

Monitor the site with remote visualization solutions suited for your application.

Application examples

Startup and Adjustment

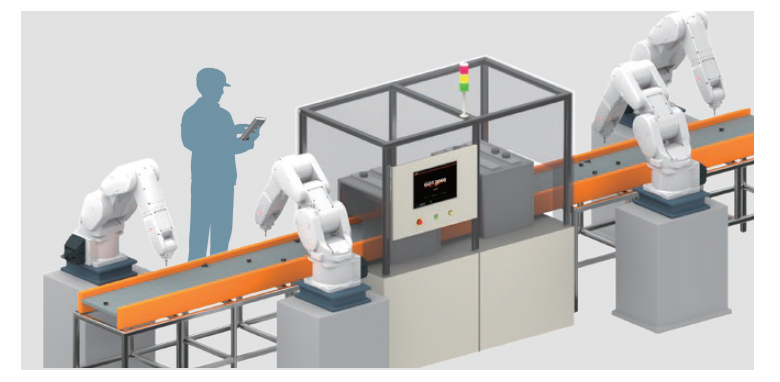

Adjusting the equipment remotely, away from the control panel

Multiple people working simultaneously

Operation

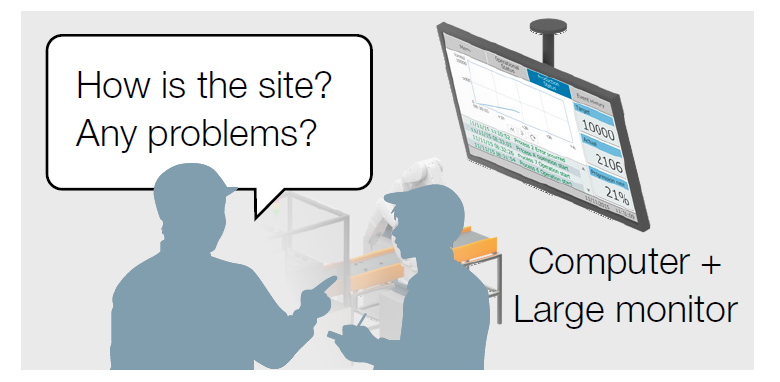

Visualizing with a large screen

Checking from the office

Maintenance

Checking from remote locations

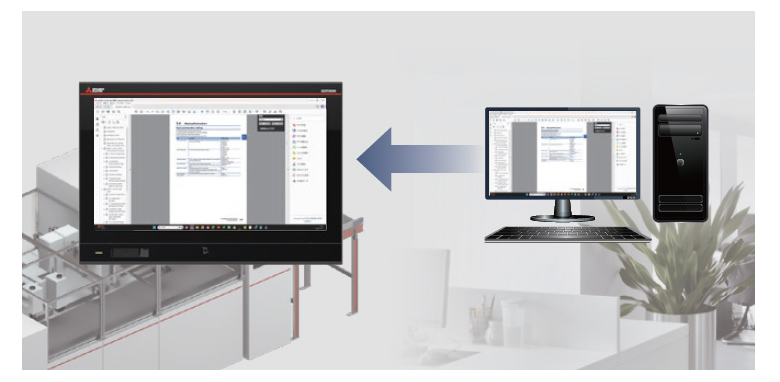

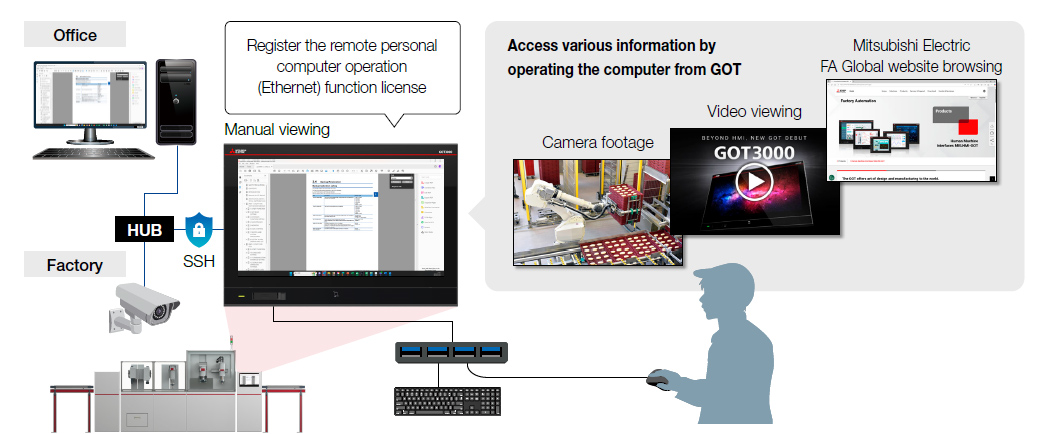

Equipment recovery while consulting the manual on the computer

Remote monitoring comparison

●: Supported -: Not supported

Item	Monitor and Operate GOT3000 or GT SoftGOT3000 from a Computer or a Mobile Device
	GOT Mobile Function		VNC Server Function
	GOT	SoftGOT	VNC Server Function
Simultaneous Client Connections	Max. 5	Max. 15	1
Display Different Screens for each Client	●		- Display GOT screen as is
Simultaneous Operation Prevention (Exclusive Control of Operational Authority)	●		●
Screen Creation for Remote Monitoring	Required^*1		Not required
Viewing Application	Web browser		VNC viewer^*2
License	Register to GOT	Register to SoftGOT	Register to GOT

*1The screen is created using GT Works3 (GT Designer3). Screens designed for GOT are reusable.
*2Regarding the VNC client software that has been operation-verified, please refer to the technical bulletin .

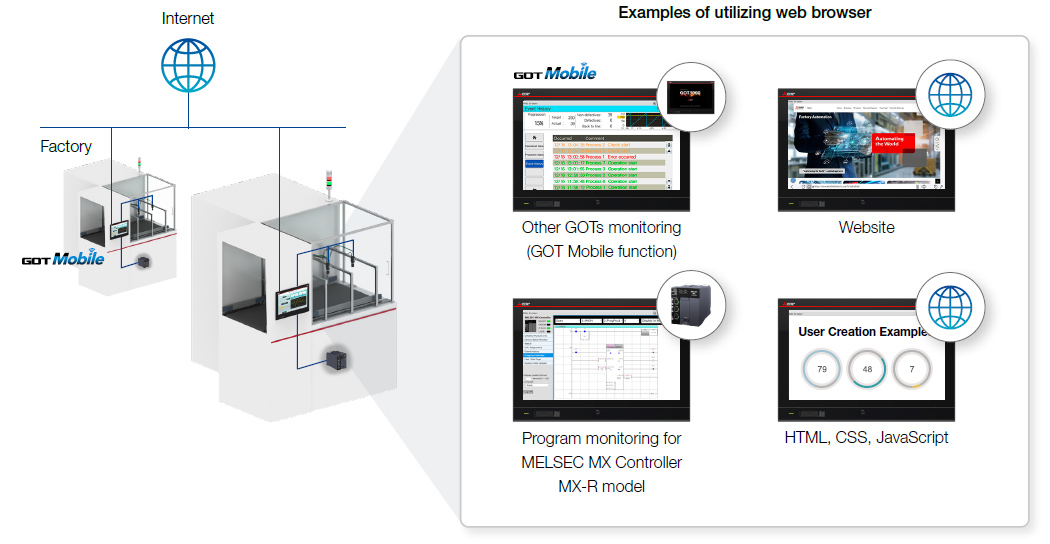

The equipment can be monitored and operated through a web browser on a computer or a mobile device.
Monitoring the equipment through a web browser eliminates the need for specific software applications or hardware. This allows the system to be built without incurring additional costs.

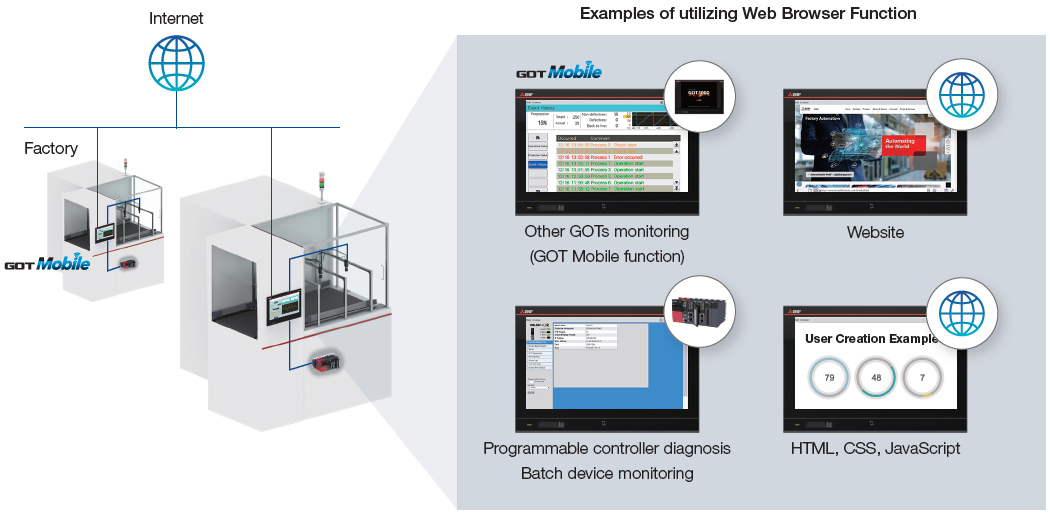

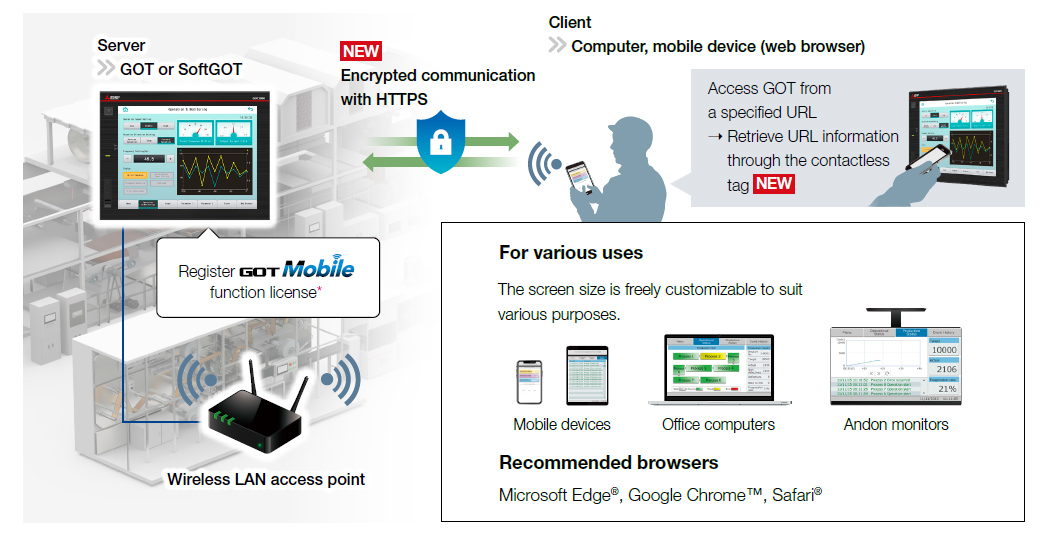

System configuration

*1By registering one license on GOT or SoftGOT, GOT can be simultaneously connected by up to 5 clients, and SoftGOT can be simultaneously connected by up to 15 clients.

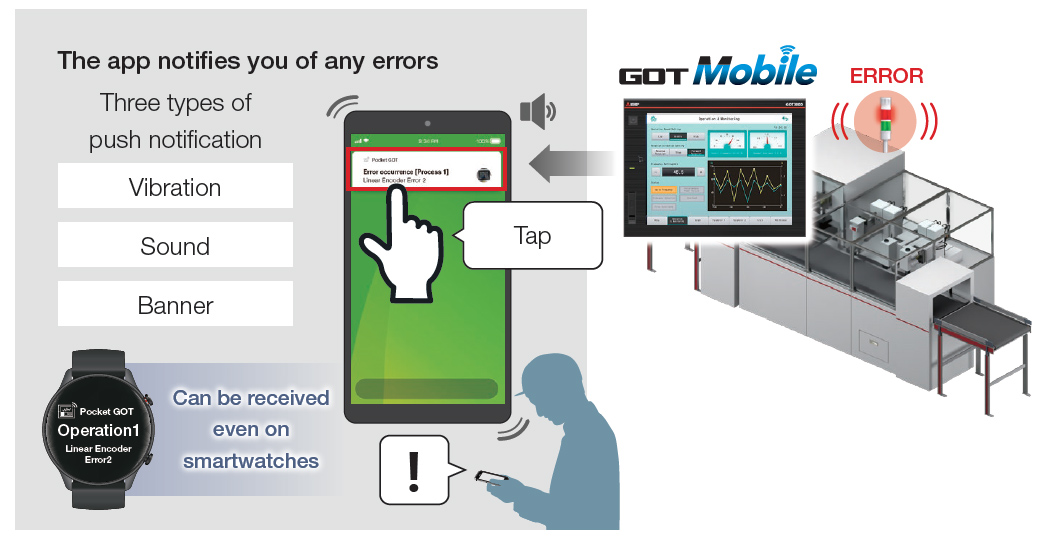

Notifications by Sound and Vibration

This is a mobile app for GOT. When installed on a mobile device, the app sends push notifications with sound or vibration if an error occurs in the monitored GOT. Important information won’t be missed.
With GOT, you can easily build a system that notifies of errors.
In the mobile app Pocket GOT, you can register up to 20 GOTs to be monitored.

Achieved at no cost by using the free app

[Free]
Download the mobile app here

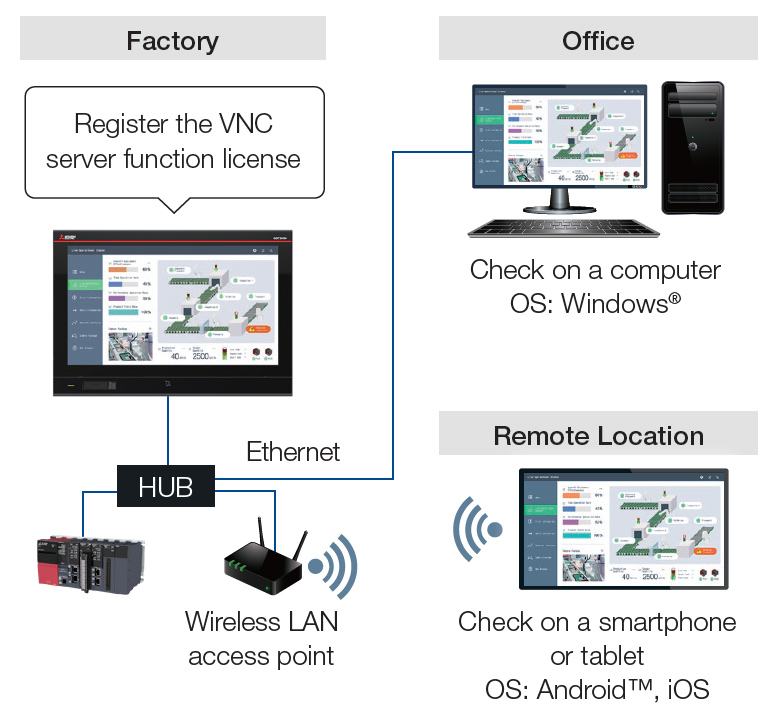

The GOT screen at a remote site can be displayed and operated as it is on a computer or a mobile device.
There is no need to create a separate display screen.

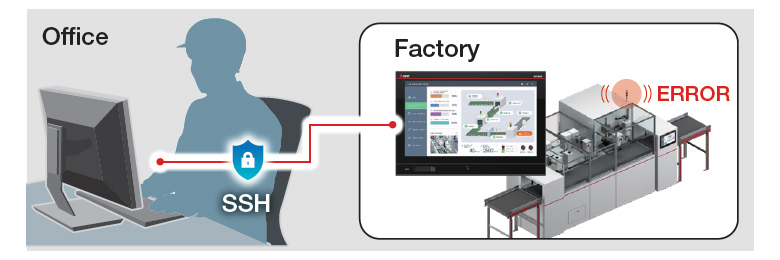

The GOT screen can be checked directly from the office when a problem occurs, allowing the on-site situation to be quickly understood and promptly addressed.

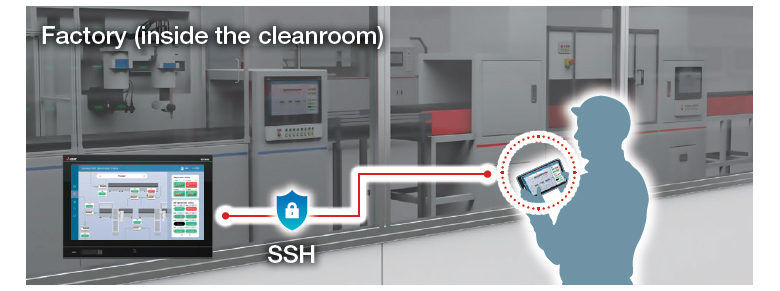

SSH port forwarding communication is supported, enabling more secure remote access through an encrypted communication route.
NEWGOT3000 Series only

Remote monitoring from the office
