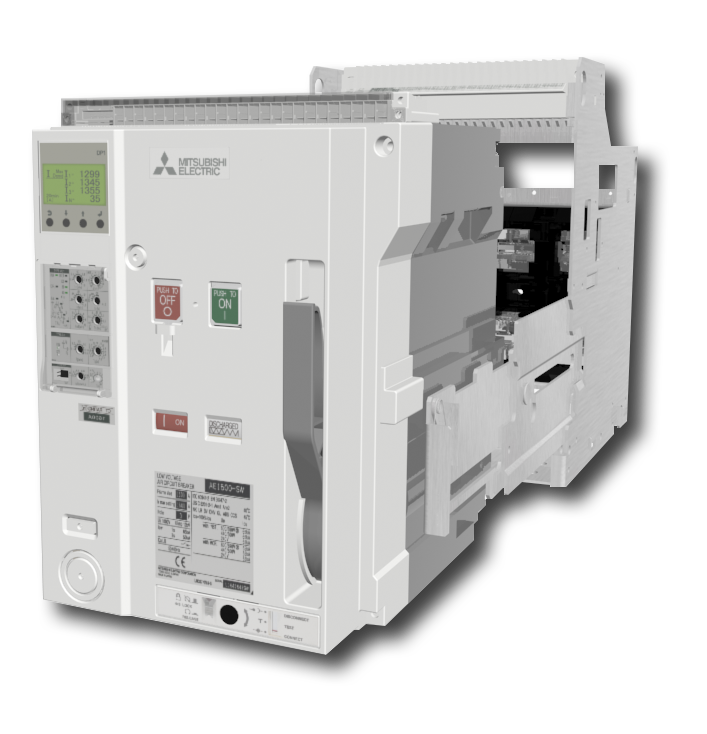

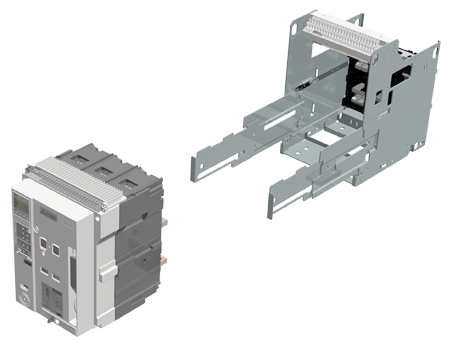

• "AE-SW" is the single series of Mitsubishi Electric's ACB for easy choice of quality products.
• Rating from 630A to 6300A with three compact frames.
• Frame1: AE630-SW to AE2000-SWA, Frame2: AE2000-SW to AE4000-SWA, Frame3: AE4000-SW to AE6300-SW
• Fixed or Drawout mounted with 3 or 4 pole versions are available.
• Compliance with IEC 60947-2, JIS C 8201-2-1. CCC certification for GB 14048.2.
• With Third party IEC 60947-2 certification from KEMA for all range of ACB.
• Various Marine standards Lloyd's Register of Shipping, Bureau Veritas, American Bureau of Shipping and etc.
• Uniform accessories for every frame size of ACB.
• Stable switching operation thanks to Double spring switching mechanism.


  movie

  01_Product featurers

  close

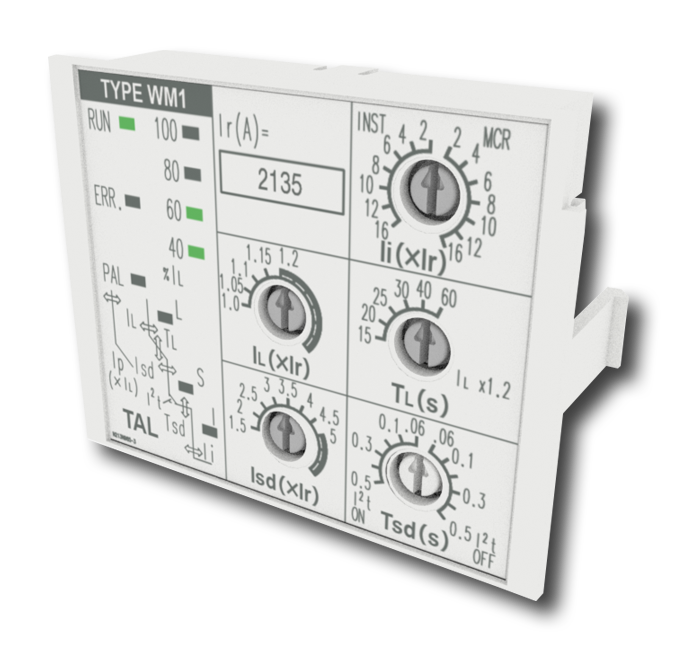

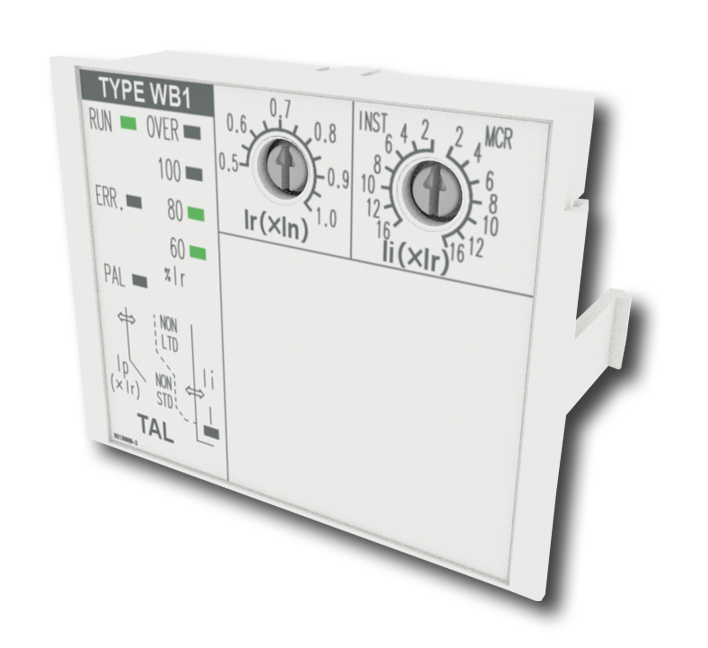

• Modular trip unit with Protection and Metering based modules for easy upgradability.


  movie

  03_Modular trip unit

  close
• Color changing LCD backlight on trip unit for easy notification in the event of Pre-alarm and Fault.


  movie

  03_Trip unit display (DP1)

  close
• Double multiplication setting on Rated current and Pre-alarm for more precise value setting.
• Icu = Ics = Icw = Min. 65kA (1sec) / Icw = Min. 50kA (3sec) for better discrimination with branch circuit breakers.

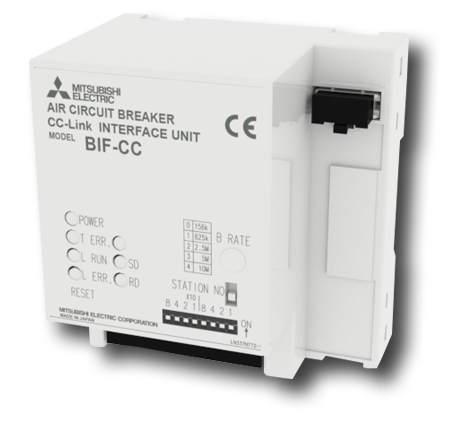

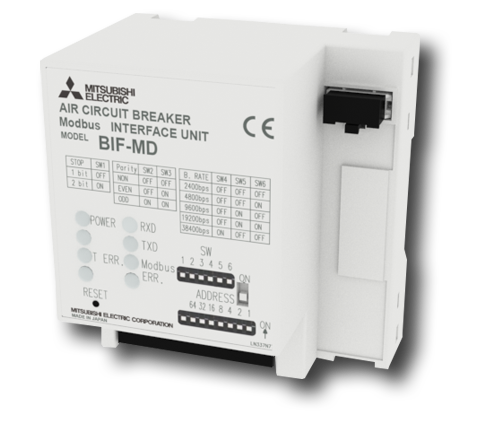

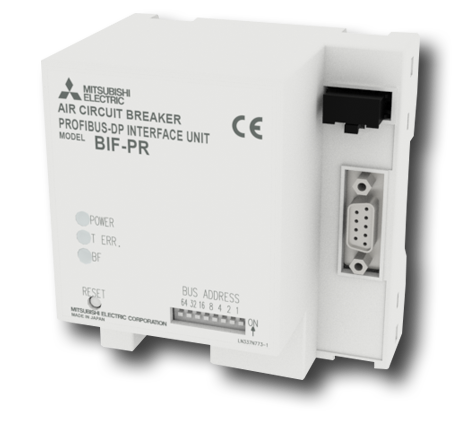

• Communication through CC-link, Modbus-RTU and Profibus-DP available for remote control and energy monitoring.
• Lower watt loss ACB contribute to reducing temperature rise inside panel and waste of energy flow.
• Zero arc space provides more reliable and safety operation for AE630-SW to AE4000-SWA at 600VAC or less.

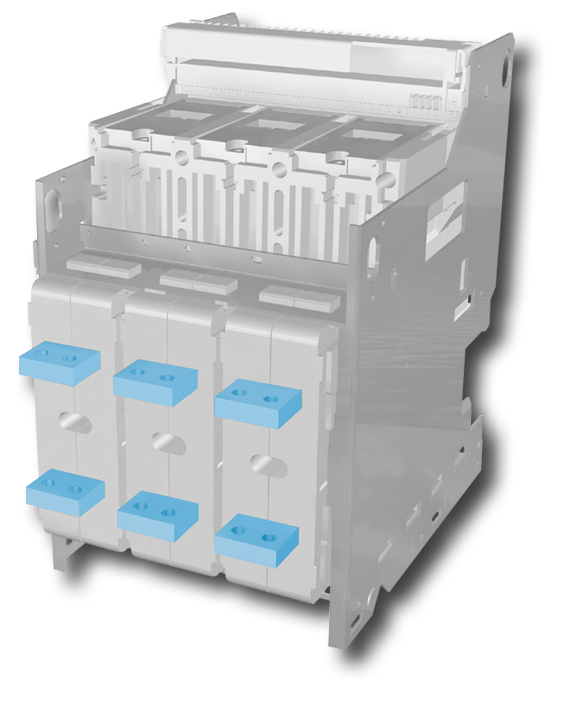

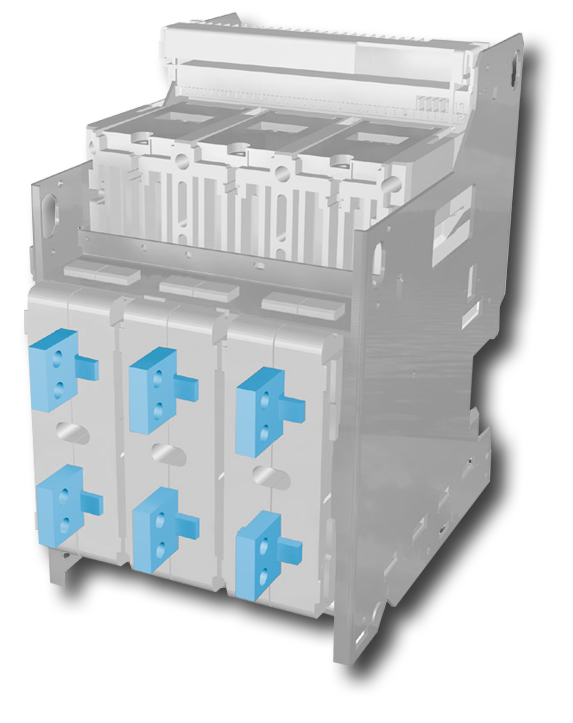

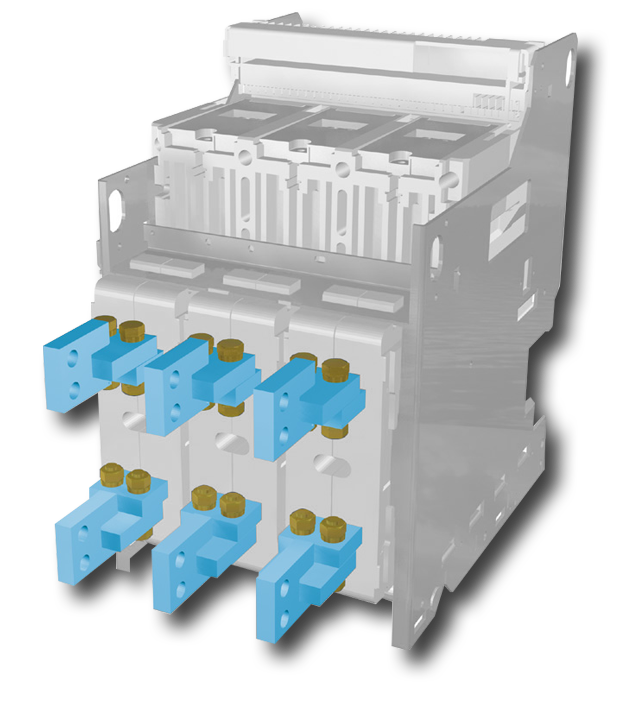

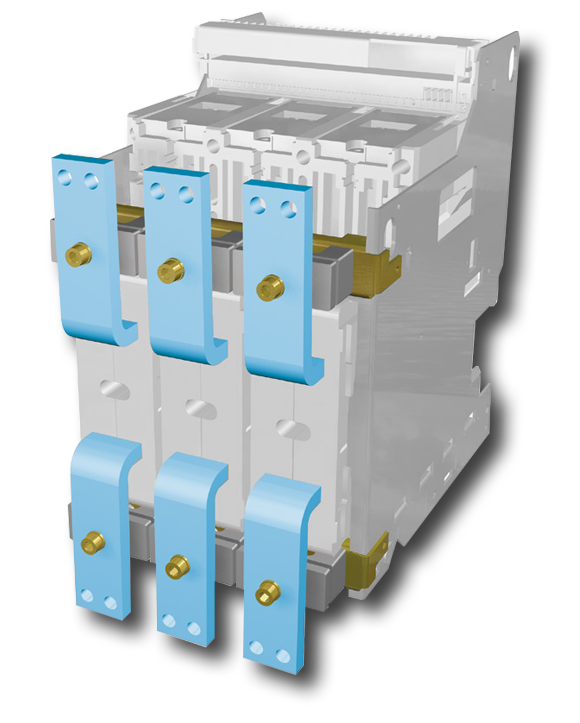

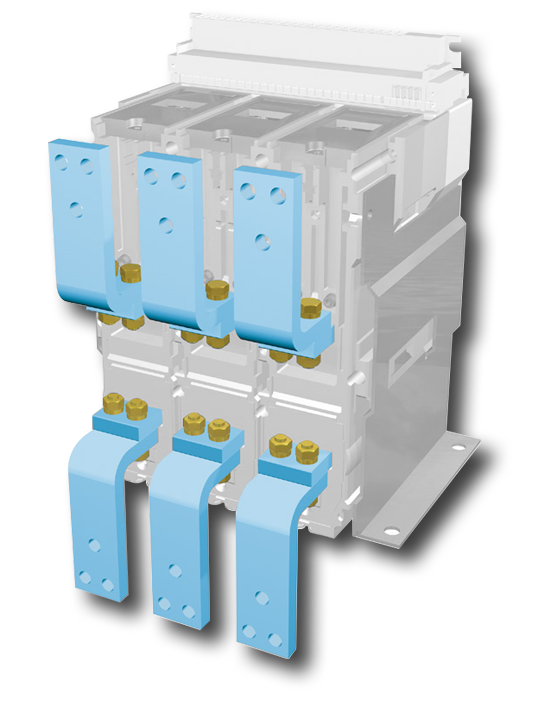

• Reverse connection is available without any limitation.

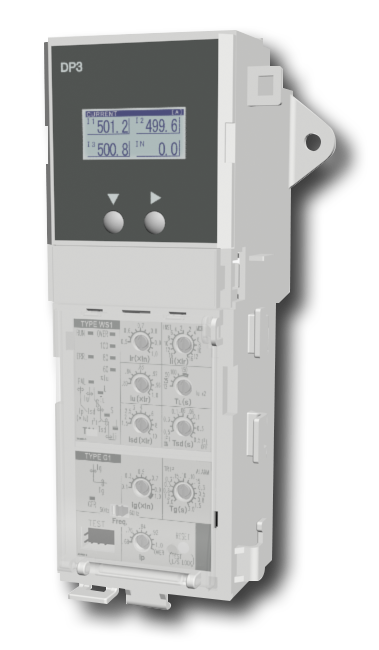

Integrated trip unit (DP3)

• Integrated trip unit with monitoring display for current and harmonics along with Fault memory function.
• Color changing LCD backlight on trip unit for easy notification in the event of Pre-alarm and Fault.
• Current level (60/80/100% of rating), Pre-alarm, Overload and Trip cause are indicated with different color of LED.
• Adjustable Pre-alarm (68%-100% of rated current) and Overload alarm (115% of rated current) as standard.
• Self-diagnose and Error indication LED for Trip Unit as standard
  (Self-diagnose on Malfunction of Microprocessor and Hardware, Miswiring related to Trip unit and etc)


  movie

  03_Integrated trip unit

  close

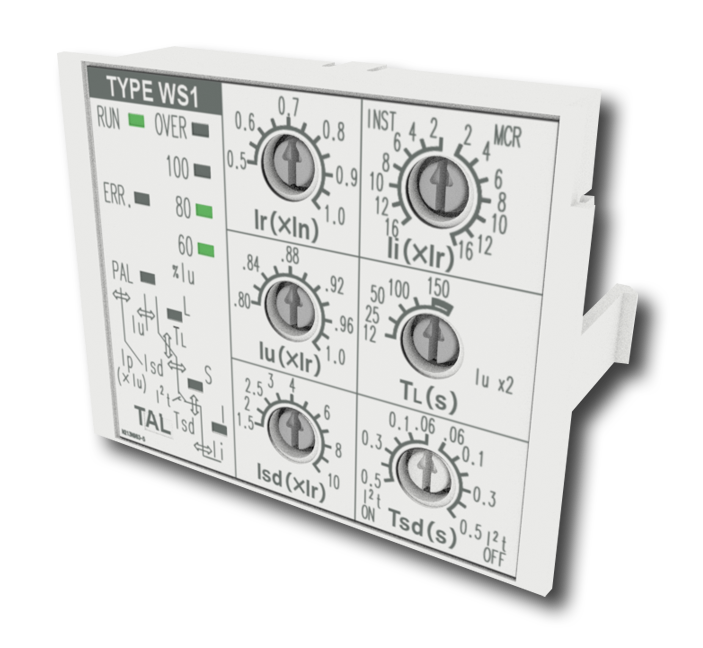

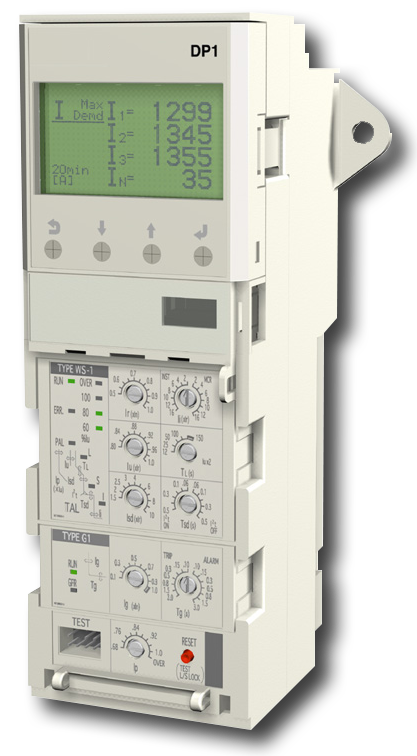

Modular trip unit

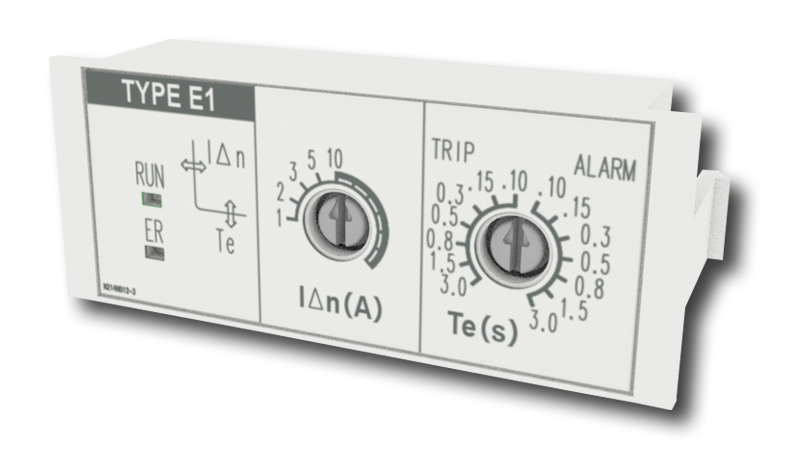

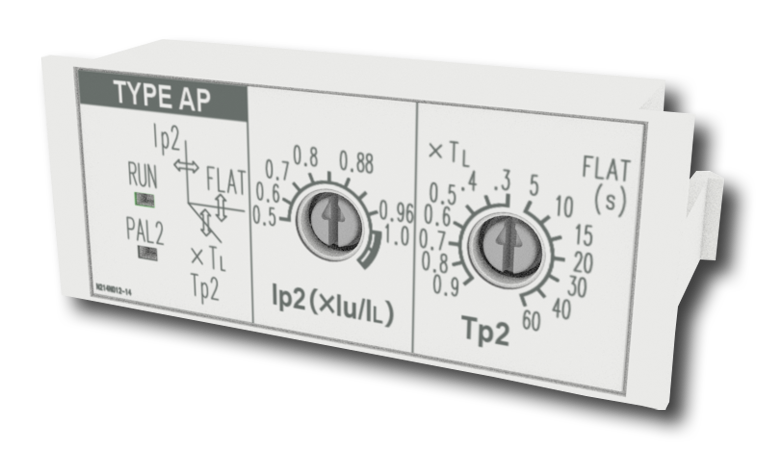

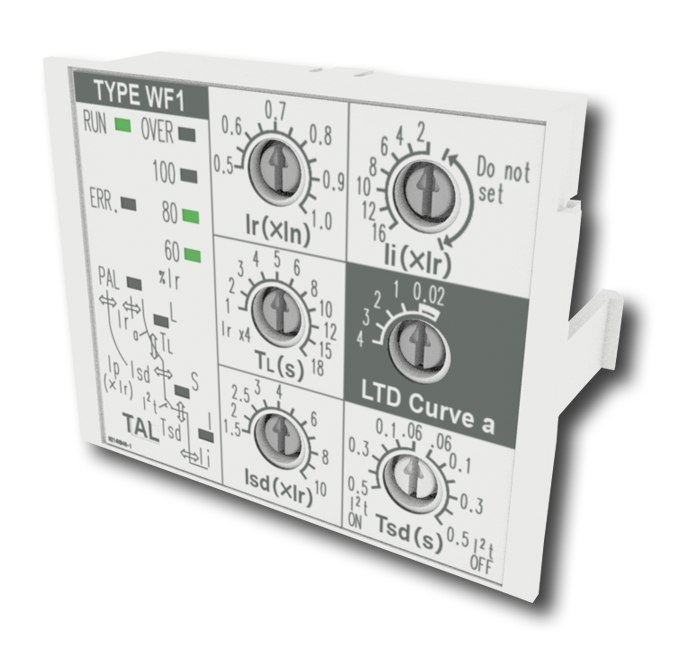

• Modular trip unit with Protection and Metering based modules for easy upgradability as well as communication.

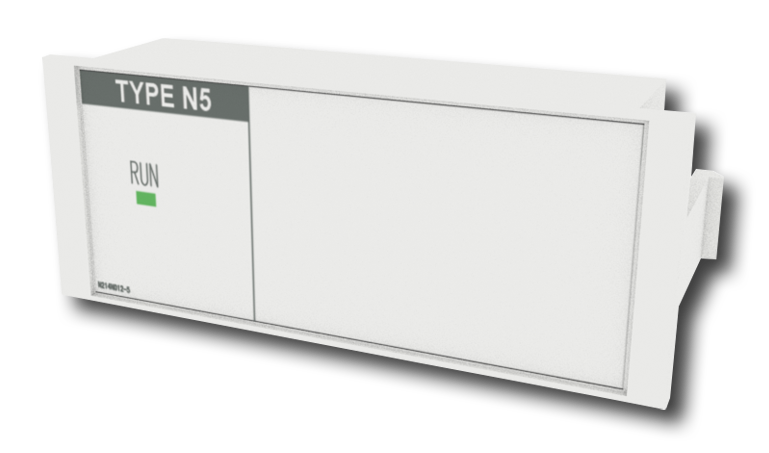

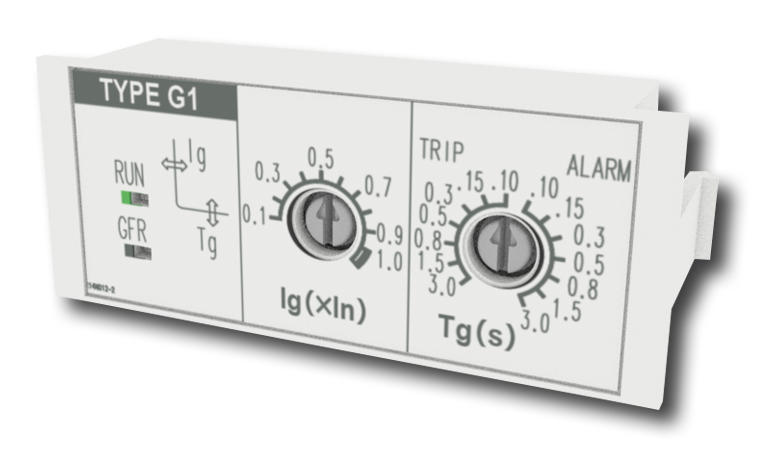

• Color changing LCD and optional protection units such as Ground fault, Earth leakage, 2nd Pre-alarm are modular.
• Color changing LCD backlight on trip unit for easy notification in the event of Pre-alarm and Fault.
• Current level (60/80/100% of rating), Pre-alarm, Overload and Trip cause are indicated with different color of LED.
• Adjustable Pre-alarm (68%-100% of rated current) and Overload alarm (115% of rated current) as standard.
• Self-diagnose and Error indication LED for Trip Unit as standard.
  (Self-diagnose on Malfunction of Microprocessor and Hardware, Miswiring related to Trip unit and etc)


  movie

  03_Modular trip unit

  close

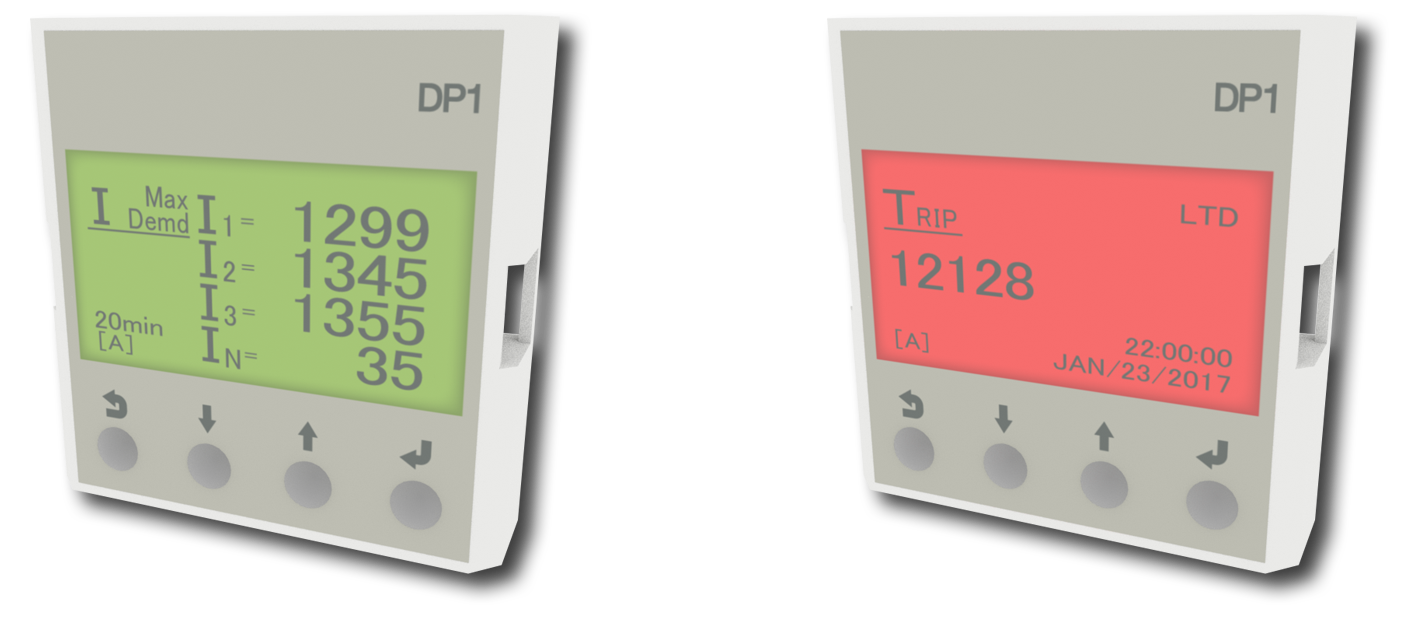

Trip unit display (DP1)

• Color changing LCD backlight for Modular trip unit is available.
• Record 10 trip history inclusive the types of protection cause (LSIGE, Under voltage, Temperature alarm).
• At the time of trip and alarming, the backlight color automatically change for easy notification.


  movie

  03_Trip unit display (DP1)

  close

Panel board display (DP2)

• Color changing LCD backlight for Panel board mounted type is also available.
• Record 10 trip history inclusive the types of protection cause (LSIGE, Under voltage, Temperature alarm).
• At the time of trip and alarming, the backlight color automatically change for easy notification.


  movie

  03_Panel board display (DP2)

  close

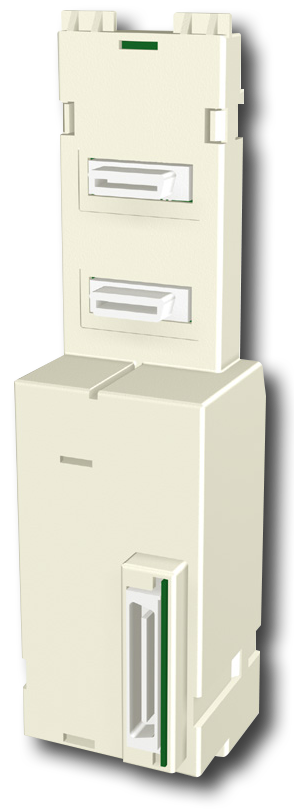

Extension module (EX1)

• Expansion module is required for metering and display function.


  movie

  03_Extension module

  close

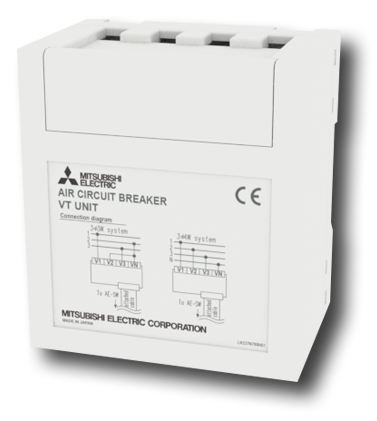

VT unit

• VT unit is required to measure voltages, powers, energy, harmonics current.


  movie

  03_VT unit

  close

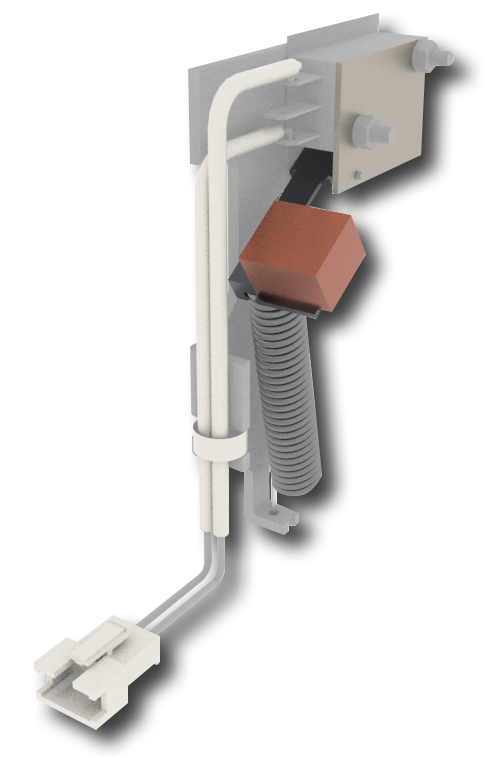

Making current release switch

• This switch makes Instantaneous operation (INST) ineffective once after the breaker is closed.
• This is used for expanding the selective combination with branch circuit breakers.


  movie

  03_Making current release switch

  close

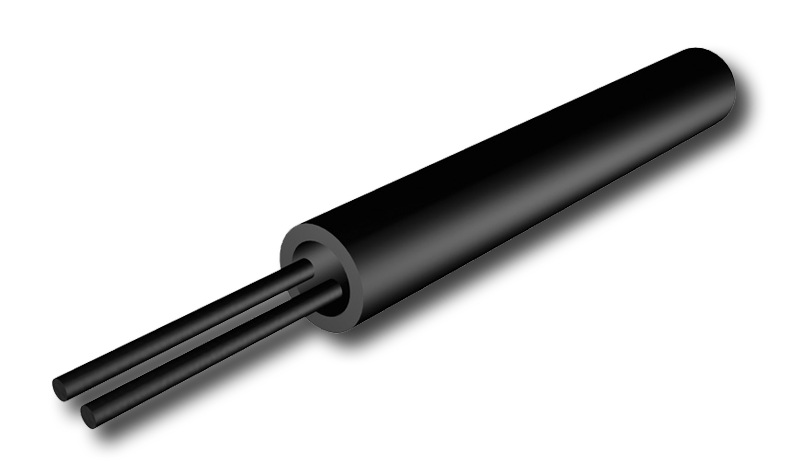

Temperature alarm

• Temperature alarm is available to identify the abnormal heat with main contacts of the breaker.

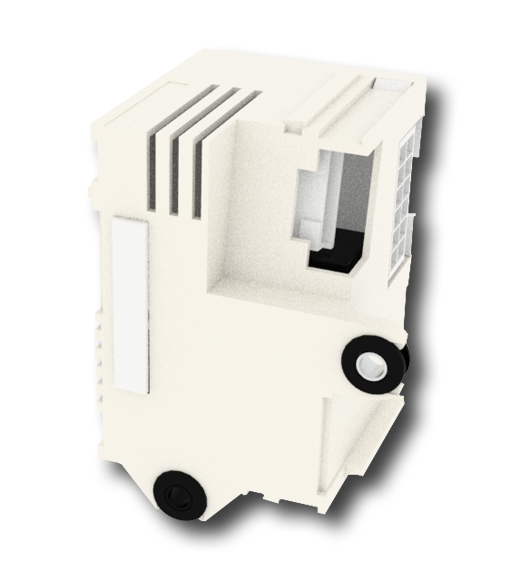

• The alarm is indicated by LED on Trip unit and it can also output signal in case Power supply module with alarm contacts (P3/P4/P5) is used.
• It makes it easy to notify the time of maintenance or replacement of the breaker.


  movie

  03_Temperature alarm

  close

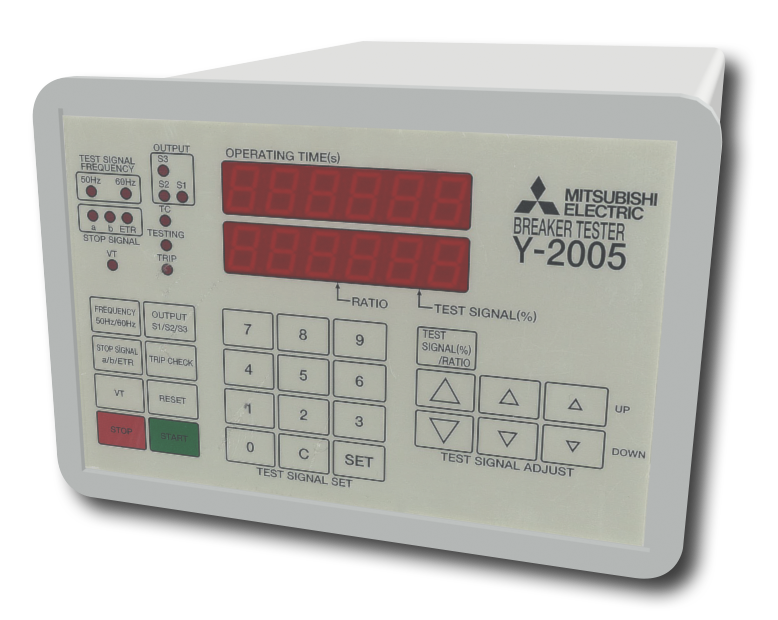

Field test device (Y-2005)

• The operation of Electronic trip unit can be tested with this Field test device (Y-2005).


  movie

  04_Field test device

  close

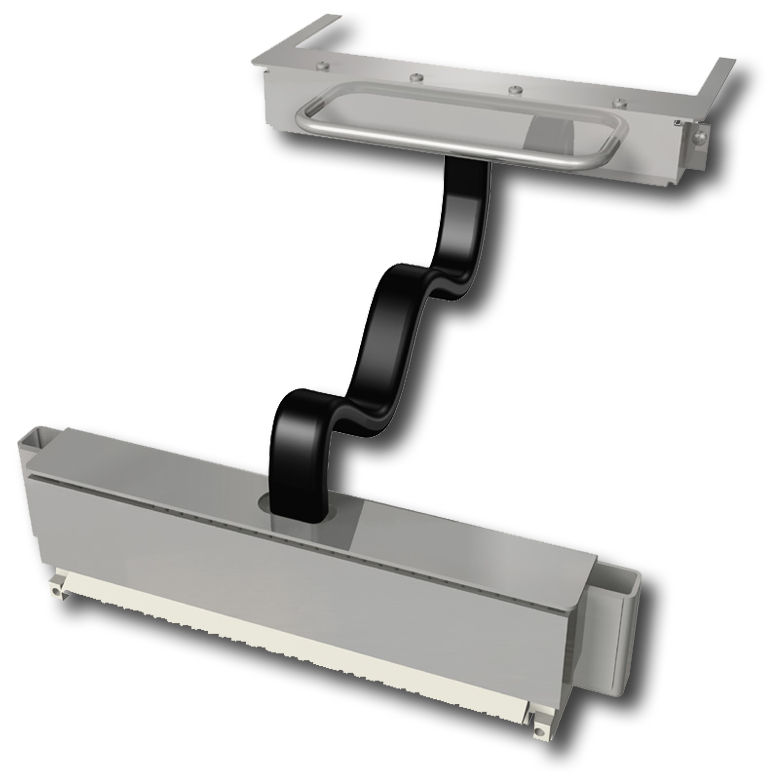

Test jumper

• While the breaker taken out of its cradle, the Test jumper enables the breaker to be electrically open and closed.
• The operating sequence of the breaker also can be checked.


  movie

  04_Test jumper

  close

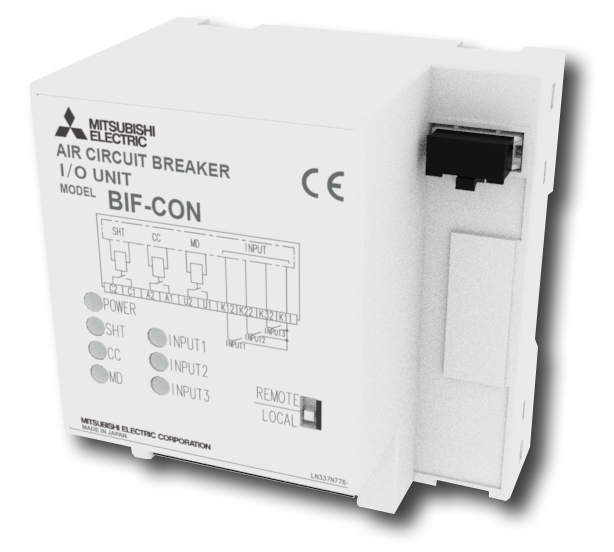

I/O unit

• For remote control of the breaker via communication system, this Input and output unit is required.
  With this, it become possible to control the breaker remotely, like open and close operation or Spring charging.
• This makes it easy to enhance communication for local applications.


  movie

  05_IO unit

  close

Motor charging device

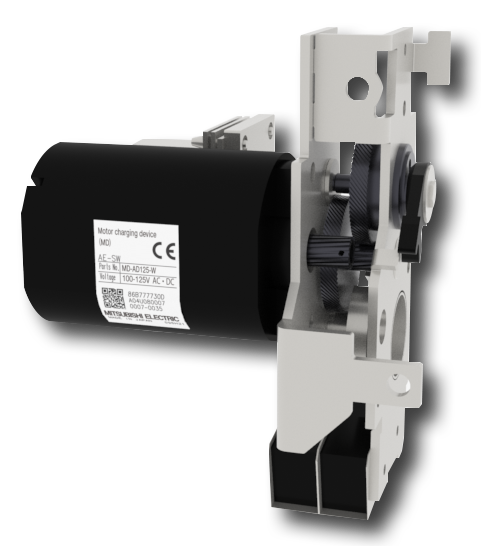

• The breaker is remotely charged by the Motor charging device.
• When the breaker is closed, the double springs inside the breaker are charged automatically.


  movie

  06_Motor charging device

  close

Closing coil

• The breaker is remotely closed by the Closing coil.
• It is one-pulse driven to prevent pumping and burnout of coil as standard.


  movie

  06_Closing coil

  close

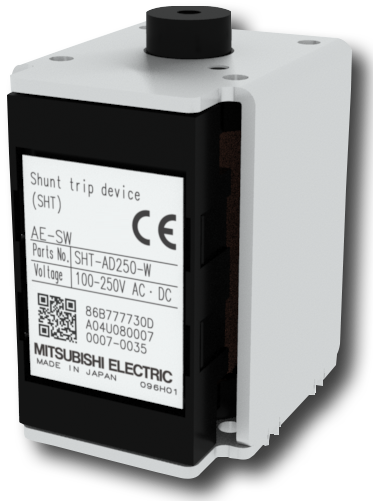

Shunt trip device

• The Shunt trip device turns the breaker opened immediately when the operational voltage is applied.
• A cut off switch is equipped as standard to prevent burnout of coil as standard.


  movie

  06_Shunt trip device

  close

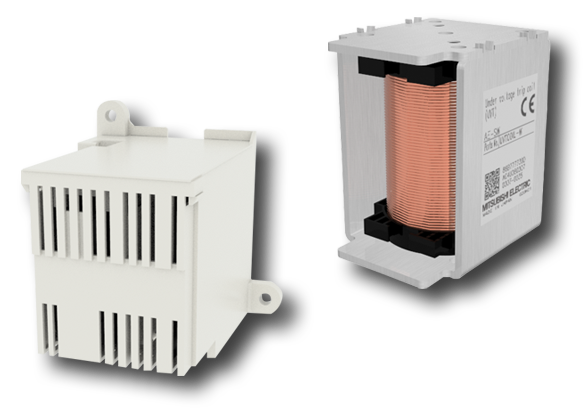

Under voltage trip device

• This device automatically open the breaker if the operational voltage is not applied or drops below specific value.
• This protect electrical equipments against voltage fluctuation and also can be used for remote control of the breaker.
• There are three types of operating time. Instantaneous (0.2 sec), 0.5 sec and 3.0 sec.


  movie

  06_Under voltage trip device

  close

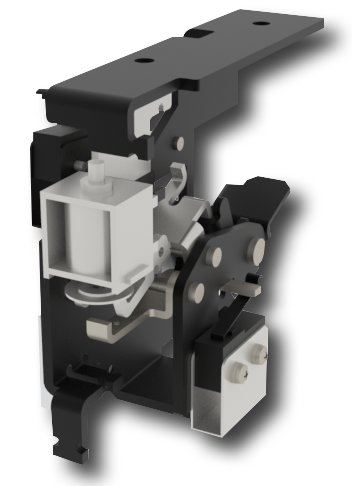

OCR alarm

• OCR alarm is provided with Electrical trip unit as standard.
• Automatic reset type and Manual reset type are available.
• For Automatic reset type, alarm is 1 NO contact of short-time operation (30ms), being output when the breaker trip.


  movie

  07_OCR alarm

  close

Auxiliary switch

• Auxiliary switches make a signal for the switching (open/closed) status of the breaker.


  movie

  07_Auxiliary switch

  close

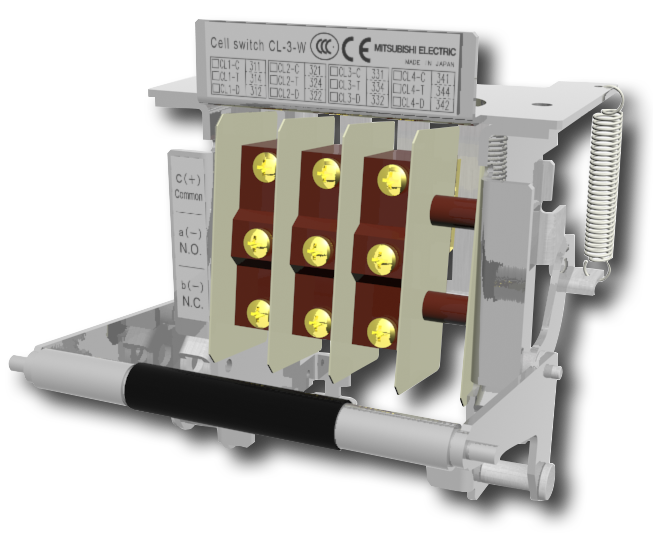

Cell switch

• This switches (NO/NC contact) indicate the drawout position (CONNECTED, TEST, and DISCONNECTED) of the breaker.
• The arbitrary combination up to 4 pieces is available.


  movie

  07_Cell switch

  close

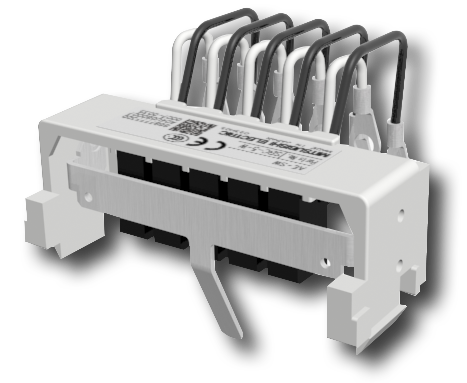

Shorting NC (b) contact

• When drawout ACB from "CONNECT" to "TEST" position, this contact is used to short the auxiliary switch (NC contact).
  Thus, maintaining the correct sequence of operation of the external control circuit.


  movie

  07_Shorting NC (b) contact

  close

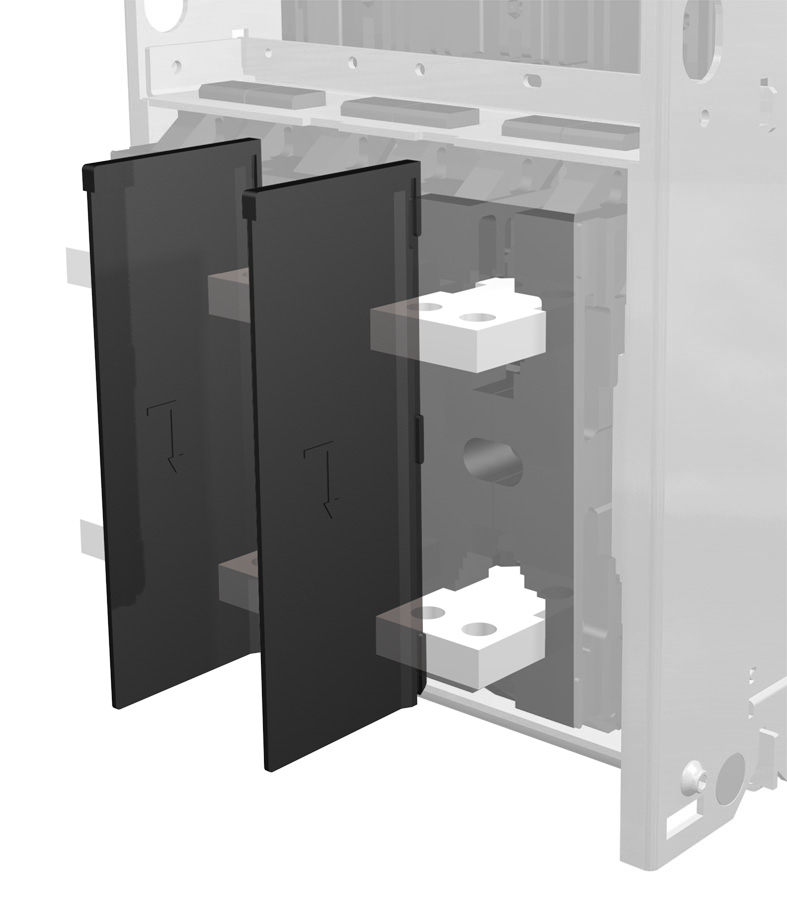

Interphase barrier

• This barrier enhance the interphase insulation between the terminal portions of the breaker, and prevents short-circuit due to conductive inclusion or dust.


  movie

  08_Interphase barrier

  close

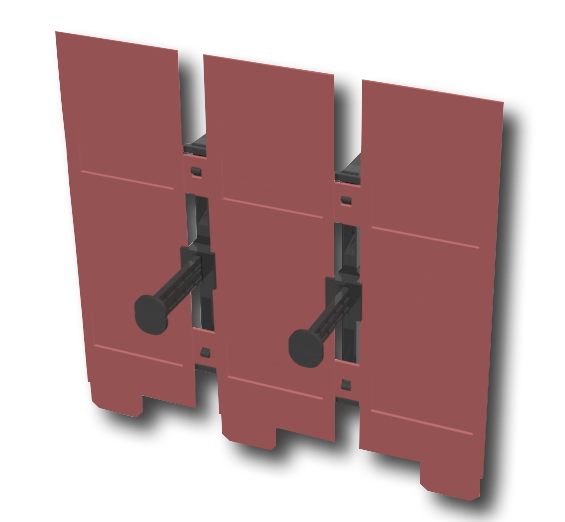

Safety shutters

• The Safety shutters cover the cradle side of conductors and prevent contact with them when ACB is drawn out.
• The shutter lock is also available as an option.


  movie

  08_Safety shutters

  close

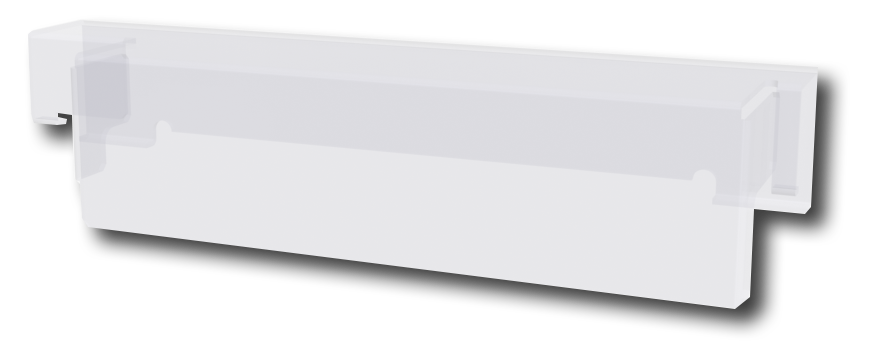

Terminal cover

• The Terminal cover prevents from careless touching to the live part of control terminals.
• Protection degree is IP20.


  movie

  08_Terminal cover

  close

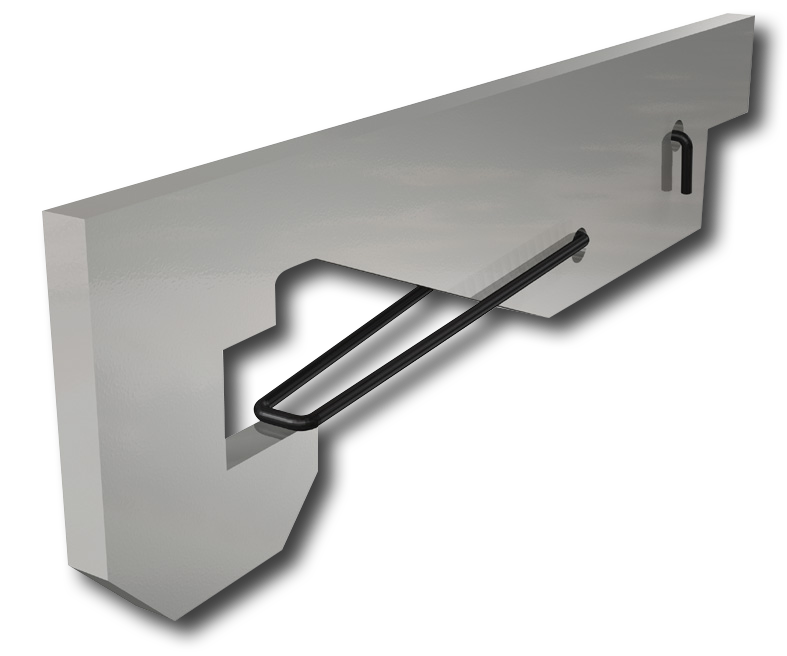

Mis-insertion preventer

• Mis-insertion preventer allow only specified circuit breakers can be inserted into the cradle.
• Five patterns of Mis-insertion preventers are available.
  (Not available for AE4000-SW~AE6300-SW.)


  movie

  08_Mis-insertion preventer

  close

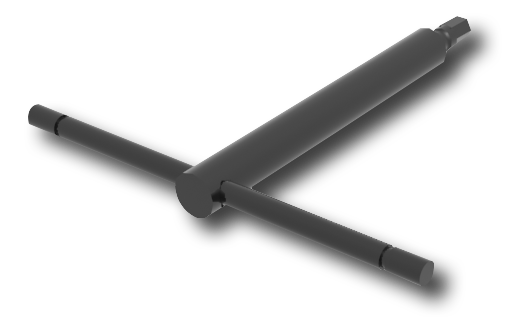

Drawout interlock

• When the breaker is ON, the drawout handle cannot be inserted into the breaker.
• The insertion and drawout operation of the breaker cannot be done unless the OFF button is pressed.


  movie

  09_Drawout interlock

  close

Position lock

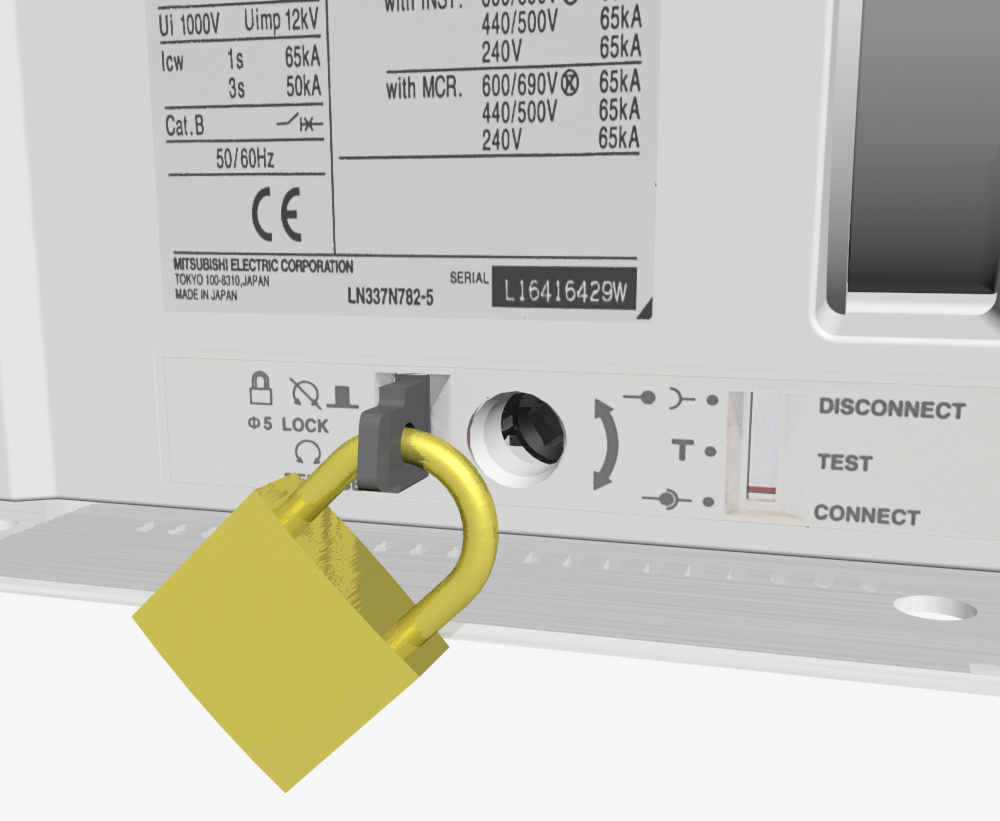

• During insertion and drawout operation, the drawout mechanism of the breaker is automatically locked at "TEST" and "Connect" position as standard.
• Once the lock plate is pushed in, the lock is released and the operation can be continued.


  movie

  09_Position lock

  close

Push button cover

• The Push button cover prevents unintentional manual switching operation by the push button.
• The Push button cover can be locked by the padlock.


  movie

  09_Push button cover

  close

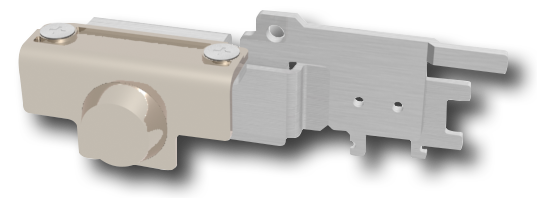

Cylinder lock

• The breaker can be locked in the open position with the Cylinder lock.
• It provide reliable protection for personal during maintenance activities.
  Also, it can be used for interlocking two or more breakers which only allows the key to be removed when the breaker is in the open position.


  movie

  09_Cylinder lock

  close

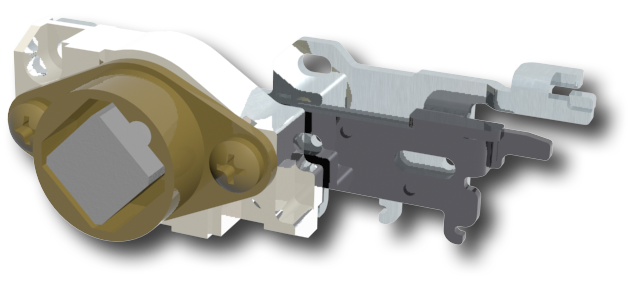

Cylinder lock

• The breaker can be locked in the open position with the Castel lock.
• In this lock, only the key lock set-up for Castel lock is available and the key must be supplied by the customers.


  movie

  09_Castel lock

  close

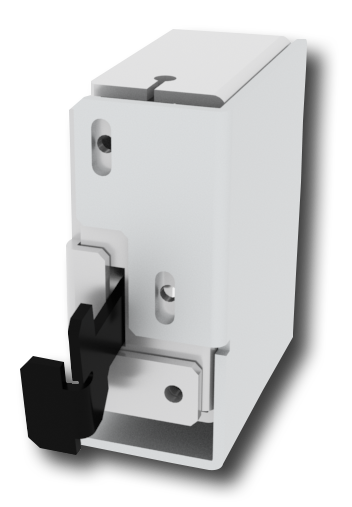

Door interlock

• With Door interlock, the panel door cannot be opened unless the breaker is in open position.
• A wire type mechanical interlock allows flexibility of the circuit breakers' position inside the panel.


  movie

  09_Door interlock

  close

Mechanical interlock

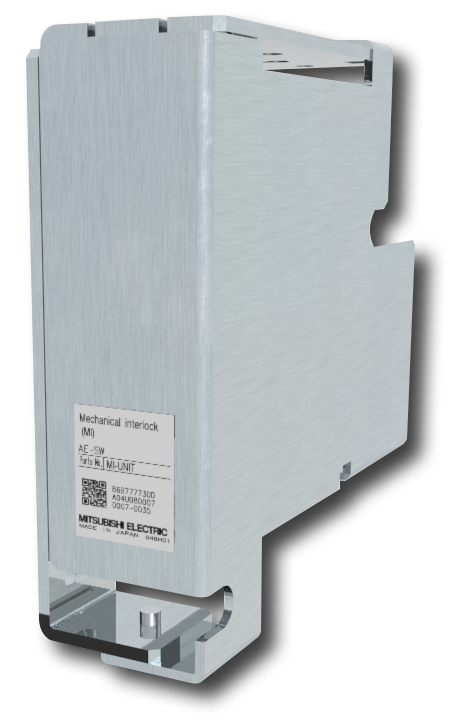

• Mechanical interlock is the device to prevent parallel closing operation of 2 or 3 units of breakers.
• It assure the interlock mechanically between the breakers.


  movie

  09_Mechanical interlock

  close

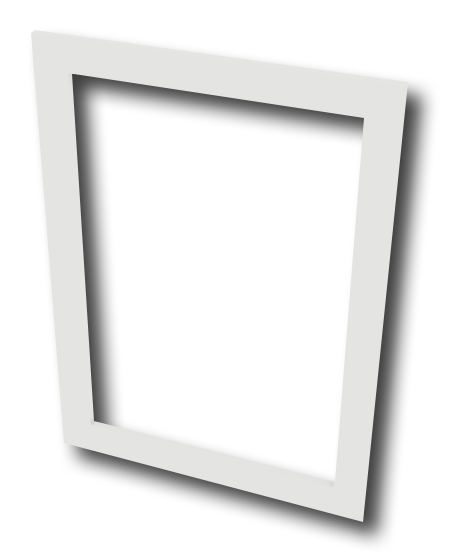

Door frame

• The Door frame improves the appearance. It is installed after cutting out the panel door.


  movie

  10_Door frame

  close

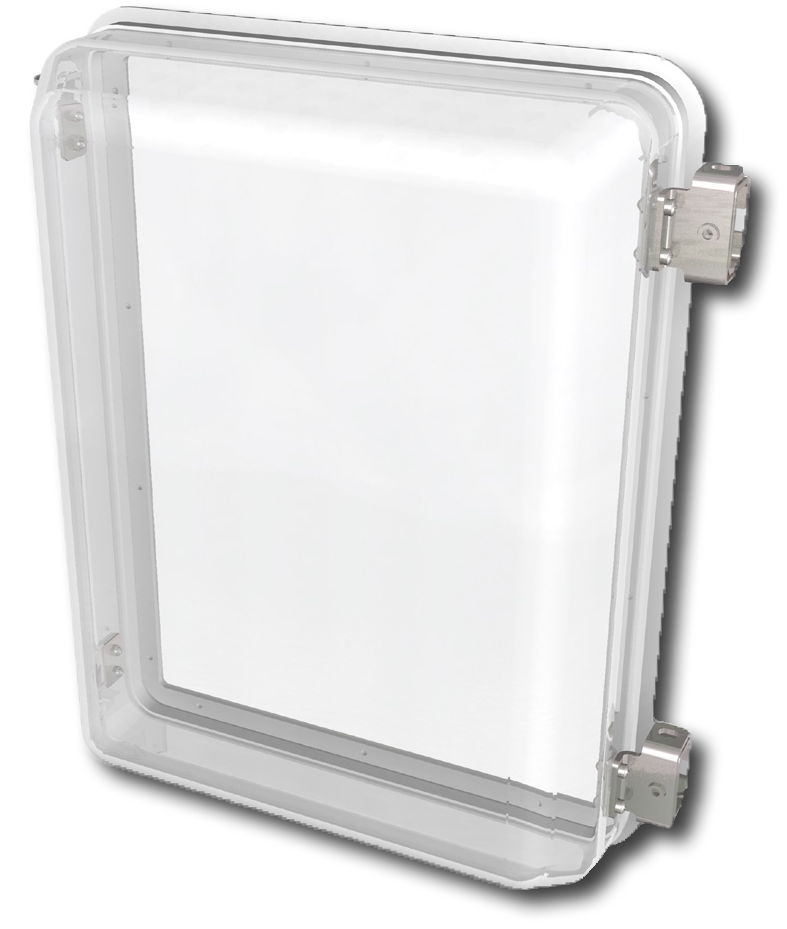

Dust cover

• Dust cover prevents the dust or water entering into the panel board when ACB is used with the front cut panel.
• Protection degree is IP54.


  movie

  10_Dust cover

  close

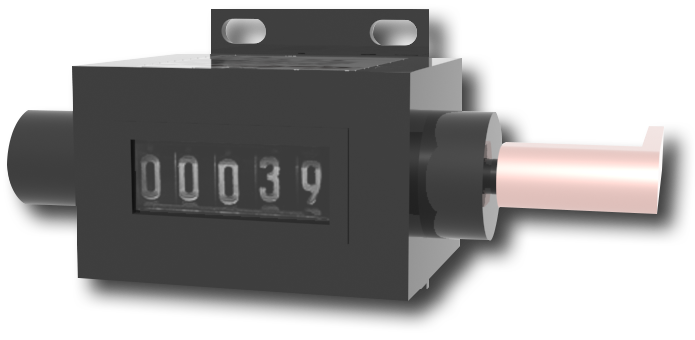

Counter

• The open/close operations of the breaker can be recorded by a 5 digit counter.


  movie

  10_Counter

  close

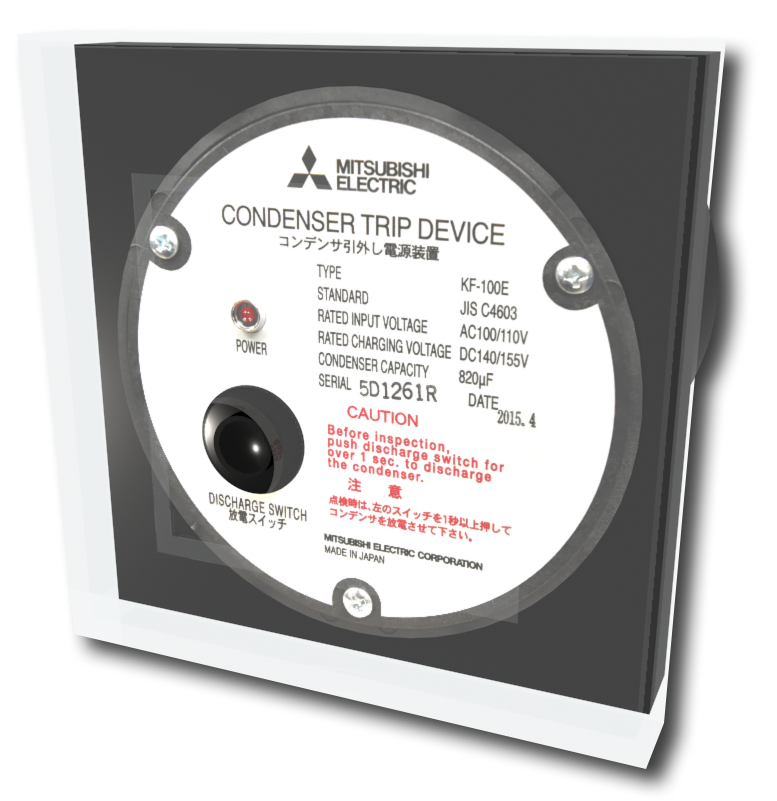

Condenser trip device

• Even if the power supply fails, the breaker can be electrically opened in the combination with the Condenser trip device and the Shunt trip device within a definite time.


  movie

  10_Condenser trip device

  close

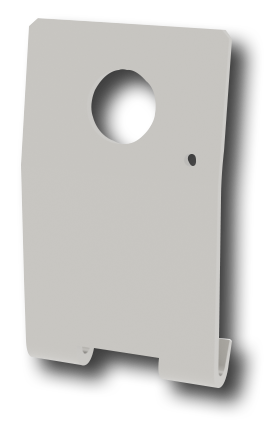

Lifting hook

• Lifting hook is the metal fitting to suspend the breaker main body when it is removed from the cradle.


  movie

  10_Lifting hook

  close

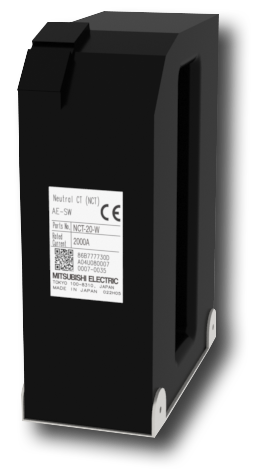

Neutral CT

• For 3 pole circuit breakers used in 3 phase 4 wire systems, the Neutral CT is used for ground fault protection and over current protection of Neutral phase.


  movie

  10_Neutral CT

  close

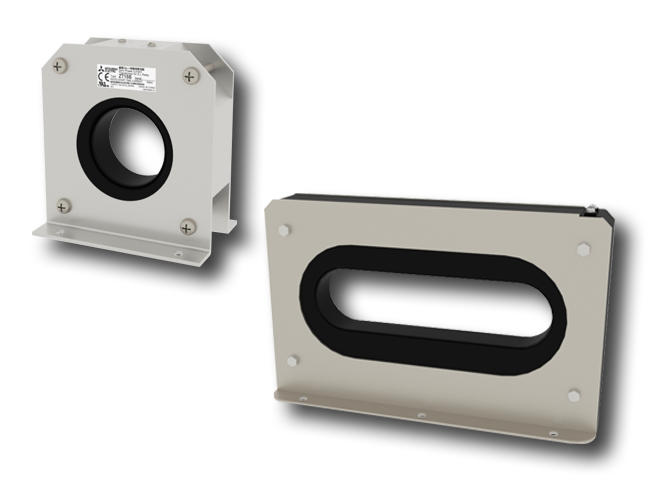

ZCT

• ZCT is used to detect earth leakage current in the combination with earth leakage protection module (E1).
• ZCT of ACB's load circuit conductors type or Transformer grounding wire type are available.


  movie

  10_ZCT

  close

ZCT

• ZCT is used to detect earth leakage current in the combination with earth leakage protection module (E1).
• ZCT of ACB's load circuit conductors type or Transformer grounding wire type are available.


  movie

  10_ZCT

  close
