Industrial robot MELFA / Collaborative robot MELFA North American safety certifications (NRTL,CSA) specification

About North American safety certifications

In the United States, OSHA (Occupational Safety and Health Administration) is responsible for safety certification of factory equipment, and NRTL (Nationally Recognized Testing Laboratory) approved by OSHA certifies the safety of electrical and electronic products. For this reason, we have obtained NRTL certification for our products sold in the United States. And for the same reason, we have obtained CSA certification for the products sold in Canada. NRTL certification and CSA certification are required in each state and municipality of the United States and Canada.

In the United States and Canada, standard product certification systems are established by state and municipal law. NRTL product safety certification in the United States and CSA (Canadian Standards Association) in Canada are standard product certification systems. Products that meet the requirement of North American certifications display certification marks.

Example of Certification Mark

Page top

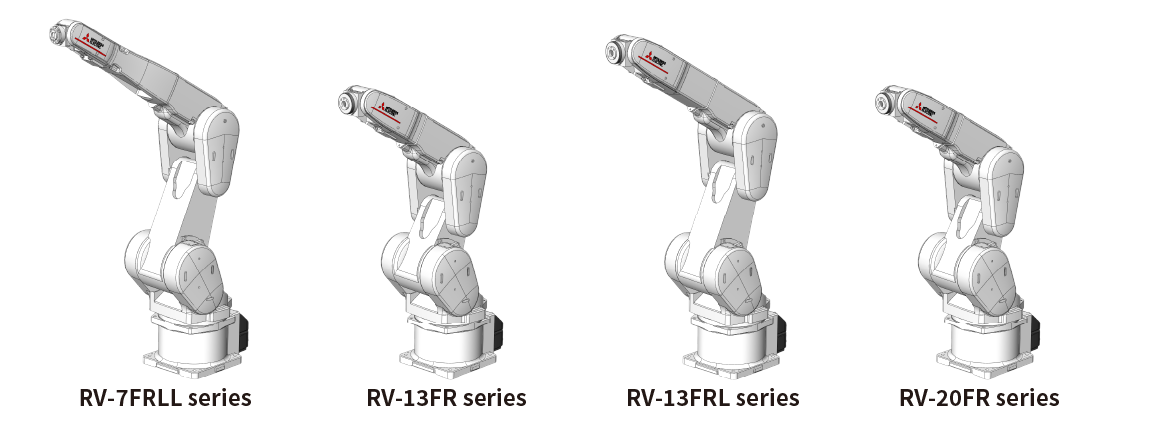

Model compatible with North American safety certifications (NRTL,CSA) specification

The compatible models are the following four series.
Some options may not be supported; please contact us for details.

Model compatible with North American safety certifications (NRTL,CSA) specification
Series Robot model name (D type) Robot model name (R type)
RV-7FRLL series RV-7FRLL-D-S200 RV-7FRLL-R-S200
RV-7FRLLC-D-S200 RV-7FRLLC-R-S200
RV-7FRLLM-D-S200 RV-7FRLLM-R-S200
RV-13FR series RV-13FR-D-S200 RV-13FR-R-S200
RV-13FRC-D-S200 RV-13FRC-R-S200
RV-13FRM-D-S200 RV-13FRM-R-S200
RV-13FRL series RV-13FRL-D-S200 RV-13FRL-R-S200
RV-13FRLC-D-S200 RV-13FRLC-R-S200
RV-13FRLM-D-S200 RV-13FRLM-R-S200
RV-20FR series RV-20FR-D-S200 RV-20FR-R-S200
RV-20FRC-D-S200 RV-20FRC-R-S200
RV-20FRM-D-S200 RV-20FRM-R-S200

Page top

Differences from standard specifications

To satisfy regulatory requirements, models intended for North American safety certification (NRTL, CSA) may include changes from the standard specifications.

No. Item Standard specifications NRTL certification specificaton
1 Rating nameplate No certification mark
Addition of certification mark
Example of certification mark
2 Robot body No servo ON lamp Addition of servo ON lamp
3 Accessory No extermally mounted anti-surge protection components Extermally mounted anti-surge protection components available
(Installation at the time of wiring is mmandatory)
