Vision sensor VS80
Compact vision with reduced wiring fits anywhere
Ultra-compact-size sensors (31 mm × 31 mm × 75 mm) can be installed at the maximum angle of 45 degrees. The VS80 integrates into tight spaces in the machinery, hard-to-reach spaces between machines, and on the robot hand.
PoE*1 minimizes cabling
The sensor with PoE can be connected with one dedicated cable, minimizing cabling.
*1. Power Over Ethernet
Product lineup
Select products according to applications.
â– Monochrome
| Item | VS80M-100 VS80M-100-E |
VS80M-200 VS80M-200-□ |
VS80M-400 VS80M-400-□ |
VS80M-202 VS80M-202-□ |
VS80M-402 VS80M-402-□ |
|
|---|---|---|---|---|---|---|
| Image resolution (pixels) |
640 × 480 | ● | ● | ● | – | – |
| 1600 × 1200 | – | – | – | ● | ● | |
| Maximum image acquisition speed (frame/s) |
217 | 53 | ||||
| Processor performance*2 (times) | 1 | 1.5 | 2 | 1.5 | 2 | |
| PatMax RedLine® | VS80M-□-R, VS80M-□-ER: supported VS80M-□, VS80M-□-E: not supported*3 |
|||||
| EasyBuilder | ● | ● | ● | ● | ● | |
| Spreadsheet | VS80M-□, VS80M-□-R: supported VS80M-□-E, VS80M-□-ER: not supported*3 |
|||||
â– Color
| Item | VS80C-100 | VS80C-200-R | VS80C-400-R | VS80C-202-R | VS80C-402-R | |
|---|---|---|---|---|---|---|
| Image resolution (pixels) |
640 × 480 | ● | ● | ● | – | – |
| 1600 × 1200 | – | – | – | ● | ● | |
| Maximum image acquisition speed (frame/s) |
135 | 33 | ||||
| Processor performance*2 (times) | 1 | 1.5 | 2 | 1.5 | 2 | |
| PatMax RedLine® | Not supported | Supported | ||||
| EasyBuilder | ● | ● | ● | ● | ● | |
| Spreadsheet | supported | |||||
- *2. Magnification based on the VS80M-100-E
- *3. Please refer to Product list for details.
Working distance
The distance from a lens to an inspection target is referred to as "working distance", and an area where a vision sensor can see at that distance is referred to as "field of view".

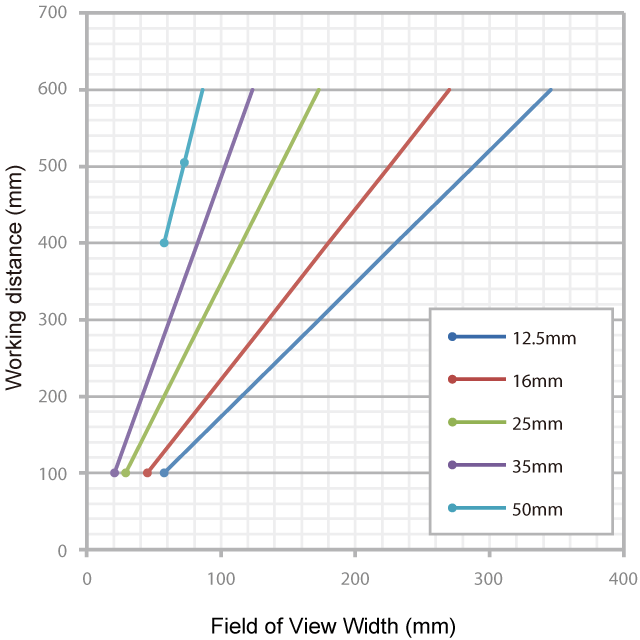

Horizontal Field of View (640 × 480)
Horizontal Field of View (1600 × 1200)
