Analog signal converter FA-AT series

  • Signal conversion modules for various analog signals are available to optimize the configurations of the programmable controller analog modules.
  • Isolation between channels prevents undesirable current flow.
  • Signal conversion modules can be easily installed and removed.
  • Dedicated cables for programmable controller analog modules are available, making connections easier and reducing the risk of wiring errors.

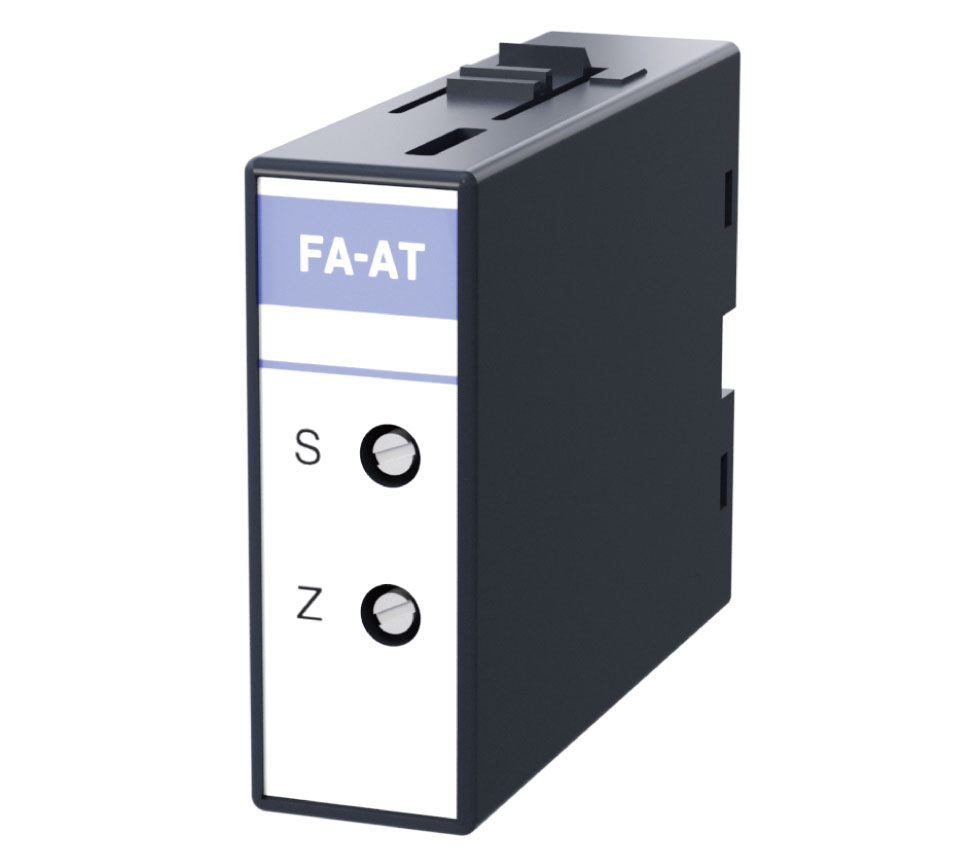

Input modules

Item Model Outline
Voltage input FA-ATSVM1XV□□ 0…5 V DC, 1…5 V, -10…+10 V
Current input FA-ATSVM1XA420 4…20 mA DC
Distributor FA-ATSVM1XD 2-wire transmitter
RTD input FA-ATSVM1XR□□ Pt100 (-200…+650°C, 0…+100/200°C)
JPt100 (-200…+600°C)
Thermocouple input FA-ATSVM1XT□□ Type B thermocouple (+600…+1700°C)
Type S thermocouple (0…+1600°C)
Type E thermocouple (-200…+900°C)
Type T thermocouple (-200…+350°C)
Type R thermocouple (0…+1600°C)
Type K thermocouple (-200…+1200°C, 0…+400/600/800°C)
Type J thermocouple (-40…+750°C)
Type N thermocouple (-200…+1250°C)

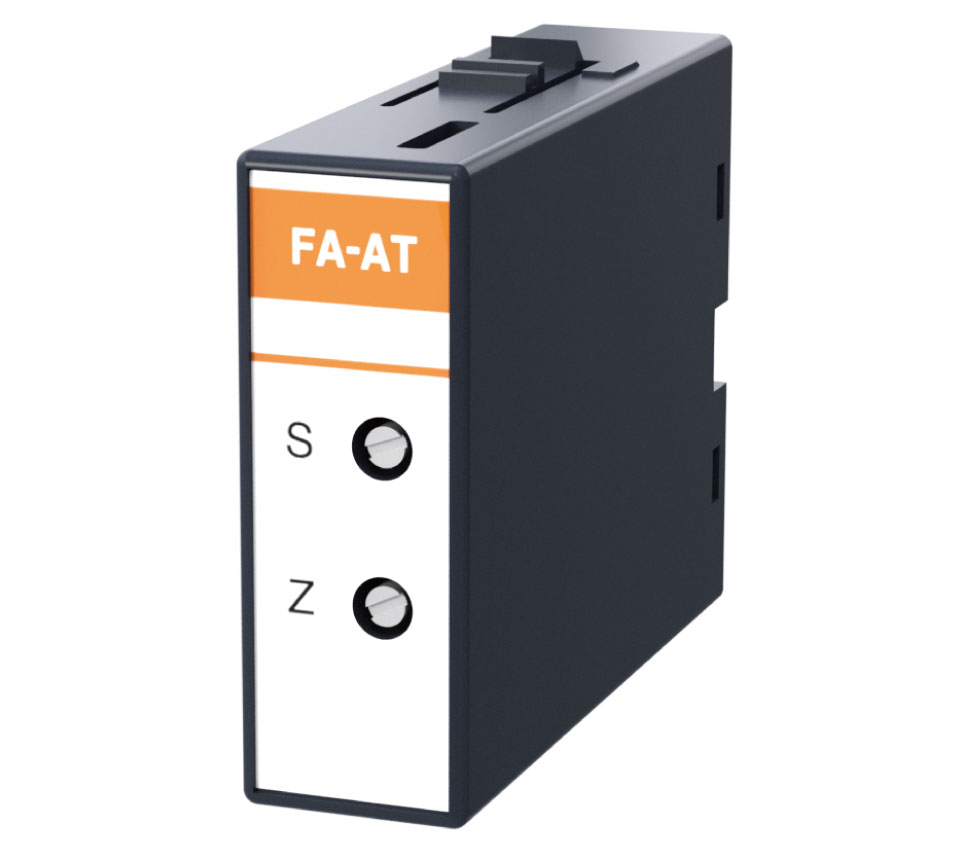

Output modules

Item Model Outline
Voltage → voltage output FA-ATSVM1YV□□ 0…5 V DC, 1…5 V DC, 0…10 V DC, -10…+10 V DC
Voltage → current output FA-ATSVM1YA□□ 0…20 mA DC, 4…20 mA DC
Current → voltage output FA-ATSAM1YV□□ 0…5 V DC, 1…5 V DC, 0…10 V DC, -10…+10 V DC
Current → current output FA-ATSAM1YA□□ 0…20 mA DC, 4…20 mA DC

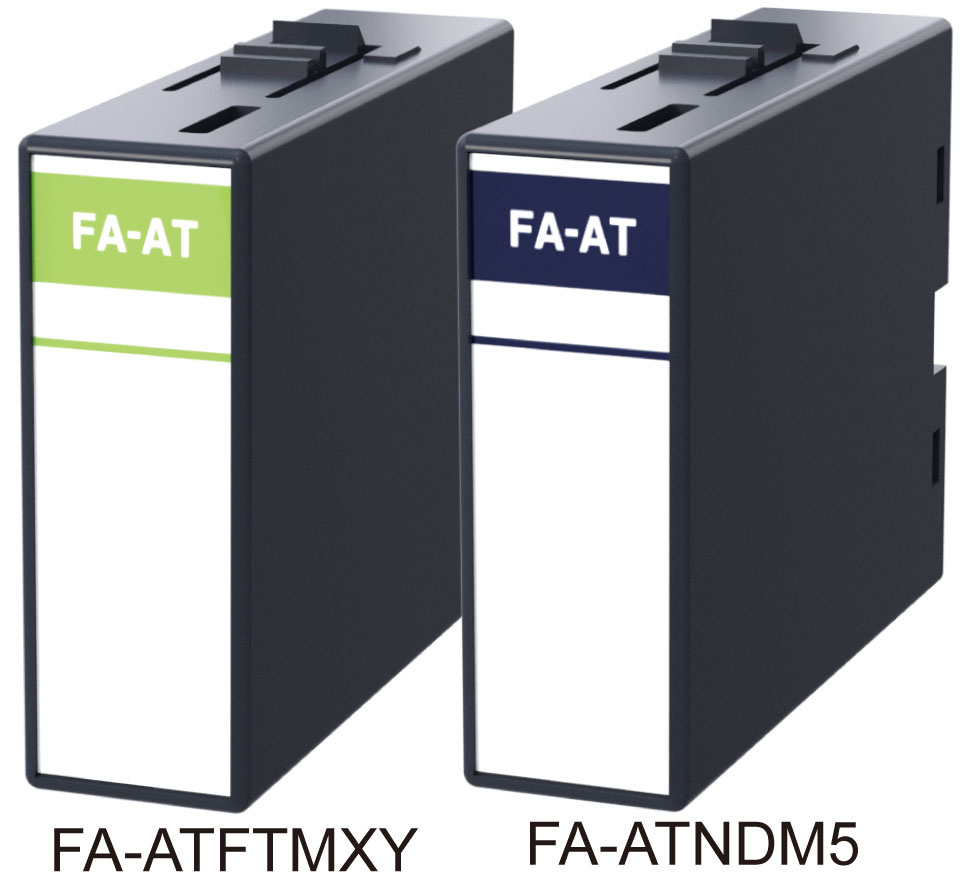

Input/output modules

Item Model Outline
Signal pass-through FA-ATFTMXY
  • Pass-through module for non-isolated signals (The current is converted into voltage.)
Dummy module FA-ATNDM5
  • Dust protector
  • Quantity: 5
