AMETEK (THAILAND)

Device Partner

High precision & customizable displacement measurement sensors for factory automation with Mitsubishi Electric devices

Address

89/45 Moo.15, Enterprise Park, Bangna-Trad road, Bangkaew, Bangplee, Samutprakarn 10540, Thailand
Tel: +66 2 012 7500
Mobile: +66 92 087 9222
Contact name: Mr Hidenao Tanaka
Email: hidenao.tanaka@ametek.com

Website

https://www.solartronmetrology.com/ Open new window

Products Solutions

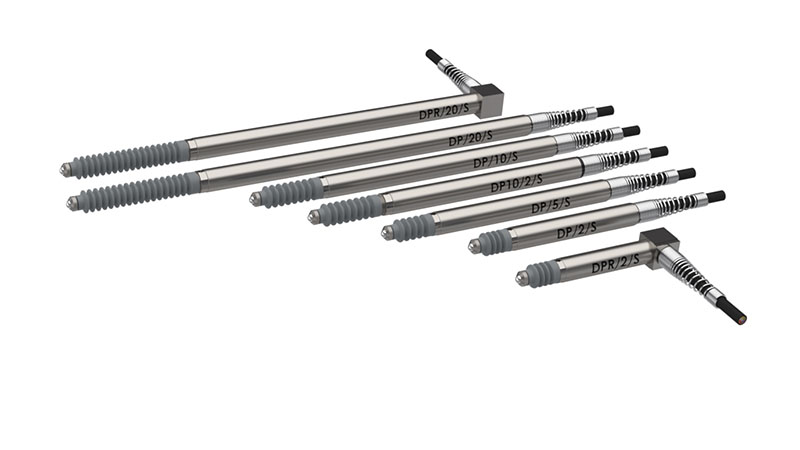

Orbit® Digital probe - pencil type

Orbit® Digital probe - pencil type provides variety of pencil type probes which is suitable for customer's application.

[Features]

  • Measuring range : 0.5 mm - 30 mm
  • Actuation : Spring, Pneumatic, Vacuum
  • Body length : Minimum 26mm (0.5 mm range)
  • Tip force : 0.03 - 1.0 N
  • Accuracy : up to 0.2 micro meter
  • Repeatability : up to 0.05 micro meter
  • Resolution : up to 0.01 micro meter
Enlarge

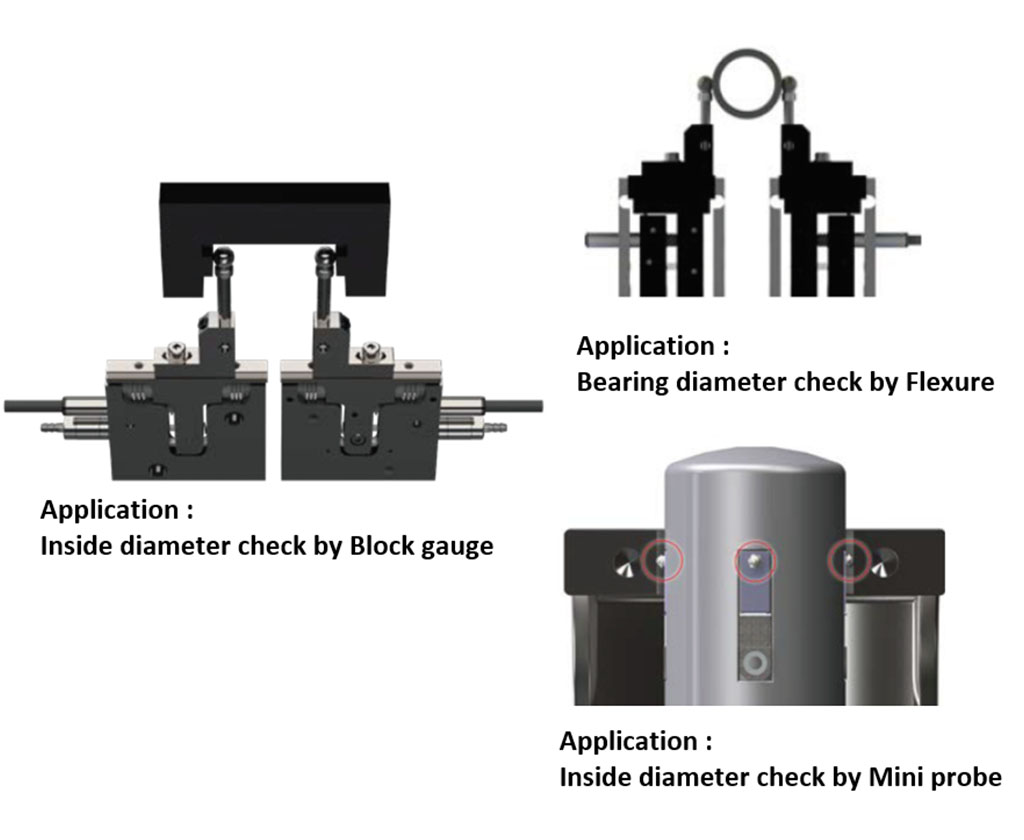

Orbit® Digital probe - special type

Orbit® Digital probe - special type provides variety of unique probes which is suitable for customer's application.

[Features]

  • Measuring inside diameter and complex point directly
  • Measuring range : 0.5 mm - 10 mm
  • Actuation : Spring, Pneumatic
Enlarge

Orbit® Digital displacement sensor

Orbit® Digital displacement sensor - provides wide measuring range options with economical price.

[Features]

  • Measuring range : 3 mm - 300 mm
  • Linearity : up to 0.2% (full scale)
  • Body diameter : 9.512 mm, 19 mm
Enlarge

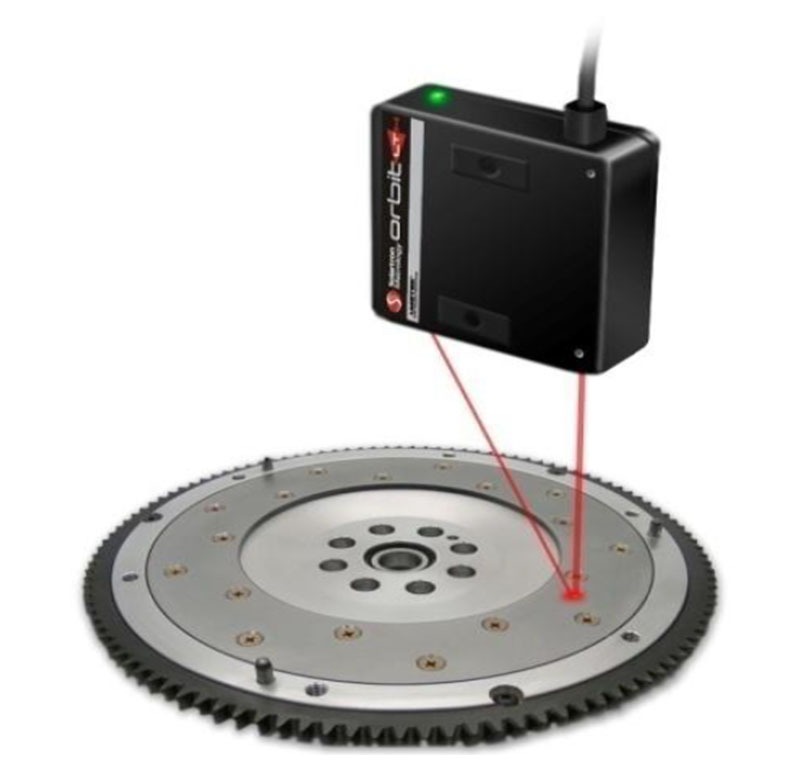

Orbit® Non contact laser

Orbit® Non contact laser - Non contact laser will offer the measurement of soft / fragile material which mark / damage prevention is needed.

[Features]

  • Measuring range : 2 mm - 200 mm
  • Linearity : +/- 0.02 % (full scale)
  • Available to use laser with contact probe in single network
Enlarge

Orbit® Air Gauge Module

Orbit® Air Gauge Module is the interface module to bring Air gauge head to Orbit® network. Air Gauge's reading value can be interfaced to PC or PLC.

[Features]

  • Mastering by PC software or onboard display
  • Easy connection to PC and PLC
  • Resolution : 0.1 micro meter
  • Type : A type (Display on module) , B type (no display on module)
Enlarge

Orbit® special interface module

There are 5 special interface module which connect Orbit® network and 3rd party or outside of network.

  • AIM : Analogue Interface Module - receiving 3rd party's analogue sensor output
  • EIM : Encoder Input Module - receiving rotary / linear encoder output
  • DIOM : Digital Input Output Module - working as input / output port of Orbit® network
  • DIM : Digimatic Interface Module - receiving digimatic protocol
  • SGIM : Strain Gauge Interface Module - receiving strain gauge / load cess output
Enlarge

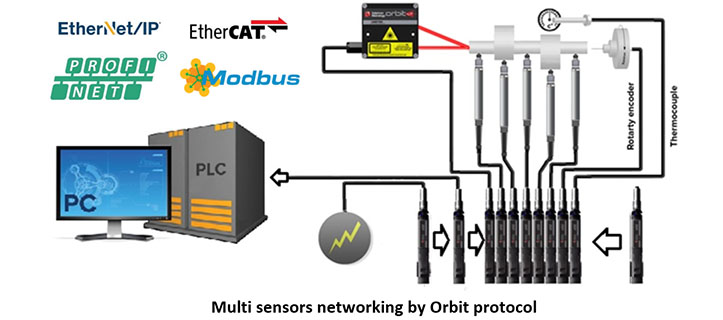

PLC interface module - PIM

PLC interface module provides multiple protocol communication capability to PLC.

[Features]

  • max 150 sensors in single network
  • multiple protcols capability : MODBUS RTU, MODBUS TCP, Ethernet/IP, Profinet, EtherCAT
Enlarge

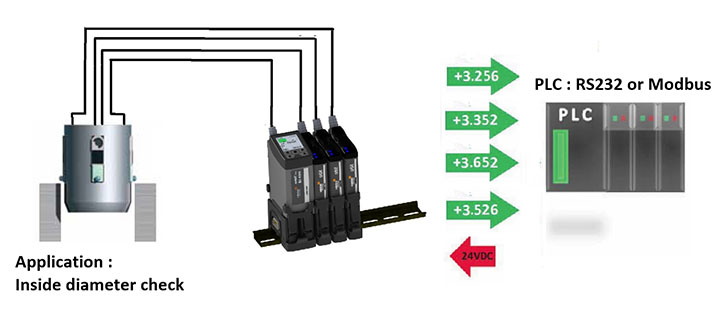

PLC interface module - ACS

ACS provides simple and economic solution for PLC network.

[Features]

  • SI100 : Single channel compact display. Integrated I/O port. Serial communication capability by RS232/Modbus RTU
  • SI200 : 2 channels compact display. Integrated I/O port. Serial communication capability by RS232/Modbus RTU
  • SI400 : 4 channels compact display. Integrated I/O port. Serial communication capability by RS232/Modbus RTU
  • SI1500 : Single channel display. Integrated I/O port. Serial communication capability by RS232
  • SI3500 : 2 channels display. Integrated I/O port. Serial communication capability by RS232
  • SI5500 : Multi channel display (max 31). Integrated I/O port. Serial communication capability by RS232. Math programming available.
Enlarge
