Product features -Input/output-

I/O module

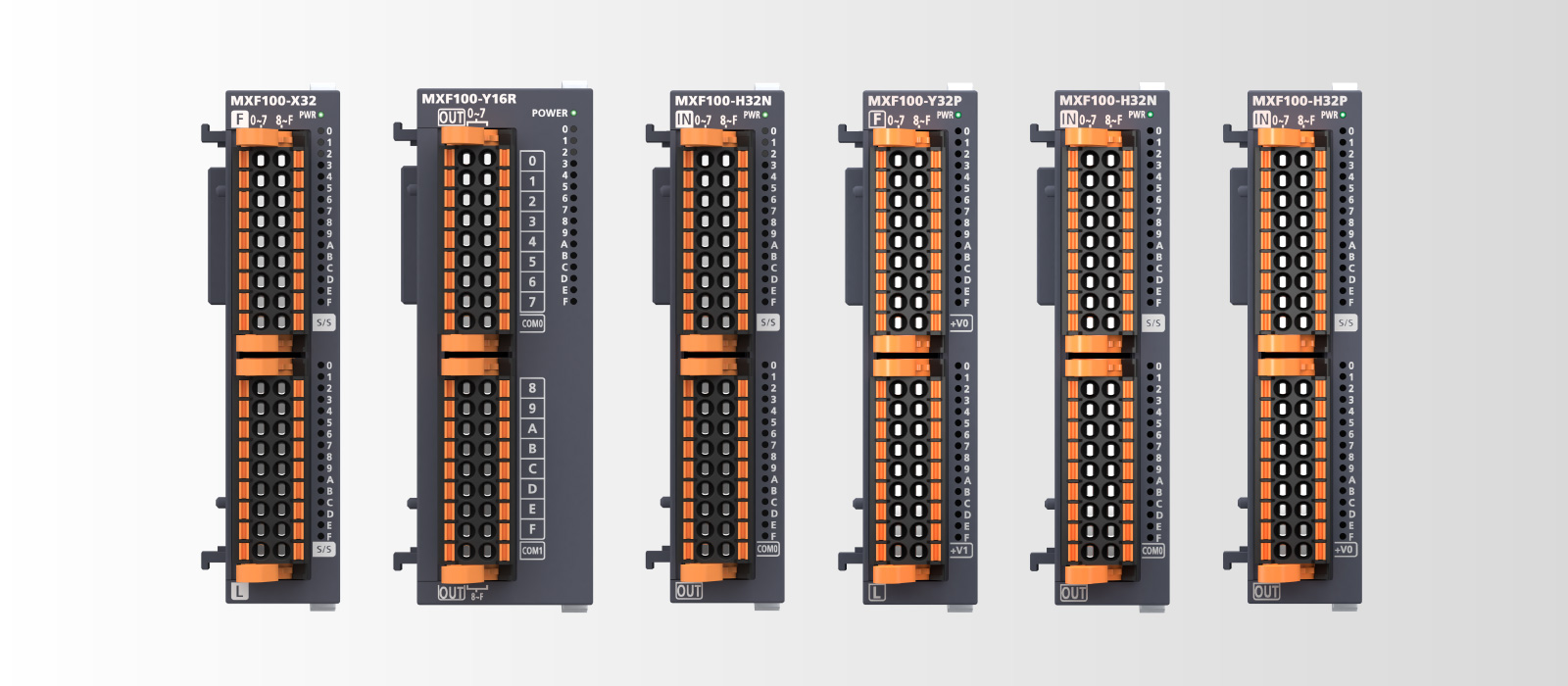

The I/O modules provide an interface of various processes to the controller. Devices such as switches, indicator lamps, and sensors can be easily connected to the control system.
Modules can be selected according to requirements such as ease of wiring, number of points and characteristics of devices to be connected.

All modules are the extension connector type. Some MELSEC iQ-F Series I/O modules can also be added.

Input

MXF100-X32

MXF100-X32

• Spring-clamp terminal block type input module.
• 32 input points can be added.

Output

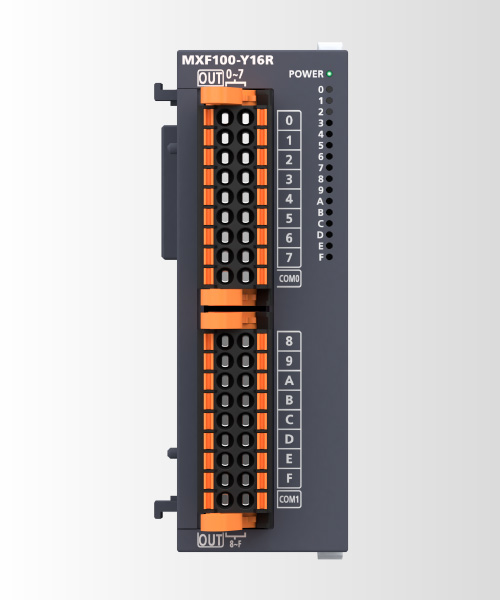

MXF100-Y16R

MXF100-Y16R

• Spring-clamp terminal block type output module.
• 16 output points (relay) can be added.

MXF100-Y32N

MXF100-Y32N

• Spring-clamp terminal block type output module.
• 32 output points (transistor (sink)) can be added.

MXF100-Y32P

MXF100-Y32P

• Spring-clamp terminal block type output module.
• 32 output points (transistor (source)) can be added.

Input/output

MXF100-H32N

MXF100-H32N

• Spring-clamp terminal block type I/O module.
• 16 input points and 16 output points (transistor (sink)) can be added.

MXF100-H32P

MXF100-H32P

• Spring-clamp terminal block type I/O module.
• 16 input points and 16 output points (transistor (source)) can be added.
