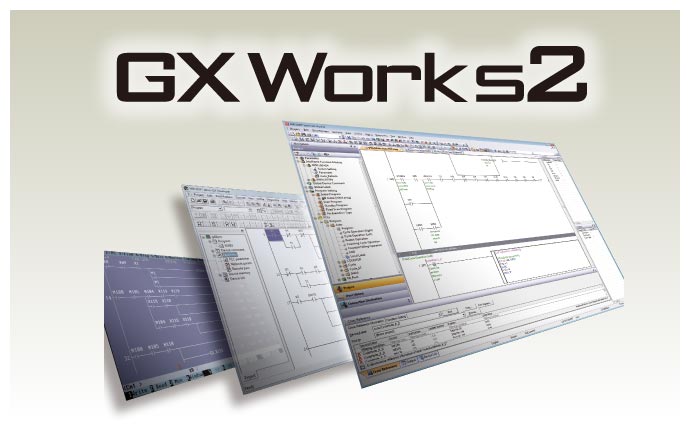

PLC engineering software (MELSEC) GX Works2
Integrated PLC Engineering Software
Ultimate evolution of PLC engineering software
International Standard IEC 61131-3 compliant
Now an easy-to-use engineering software is no surprise.
In addition to its sophisticated usability, the engineering
software GX Works2 deploys the global mainstream concepts of
“grouping” and “structuring” for fundamental improvement of
programming efficiency.
The world-standard engineering style begins with GX Works2.

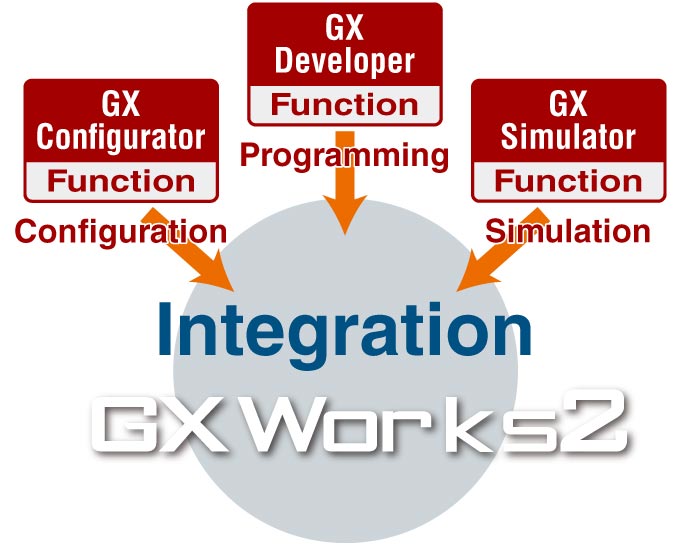

All-in-one package
All capabilities required for PLC engineering including the
configuration function of the intelligent function module and
simulation function are integrated in a single package.
The all-in-one GX Works2 package supports entire engineering
such as system design, programming, debug and maintenance.

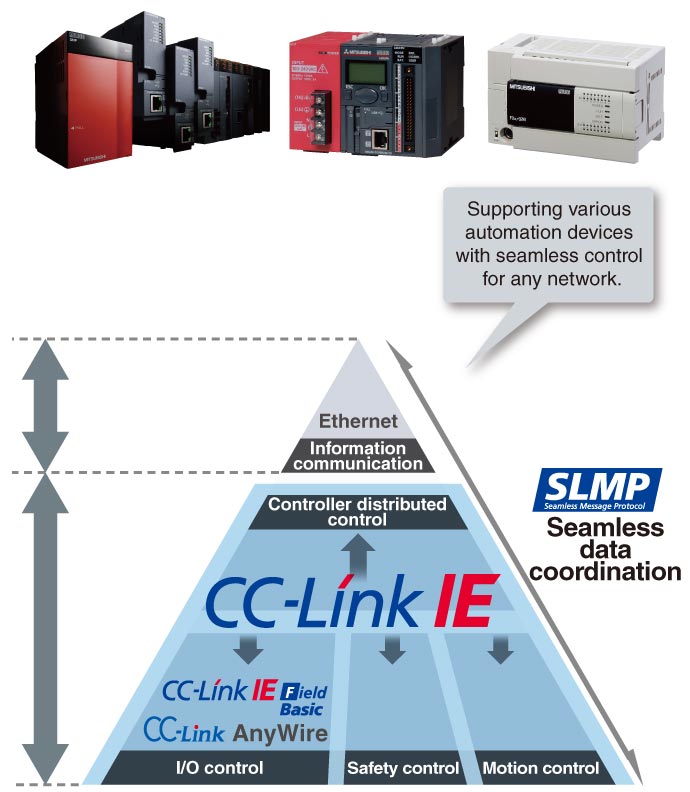

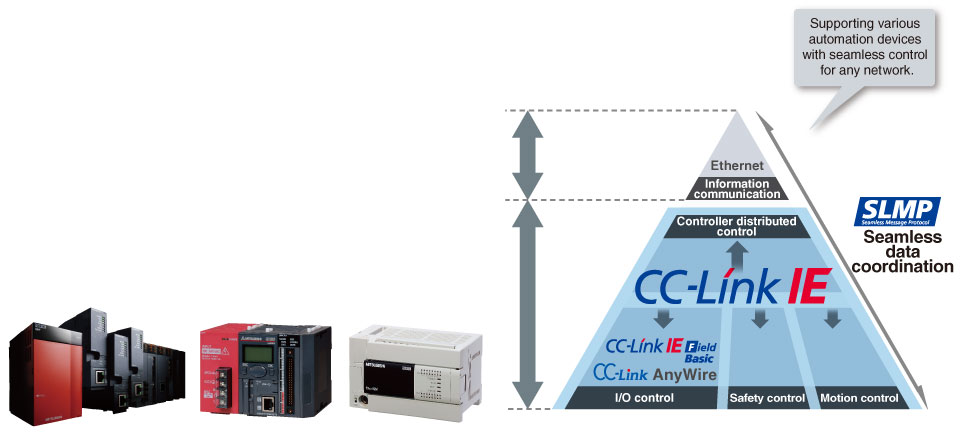

Make full use of MELSEC PLC modules
GX Works2 enables full use of high-function and high-performance CPUs and modules.
Inherits customer assets

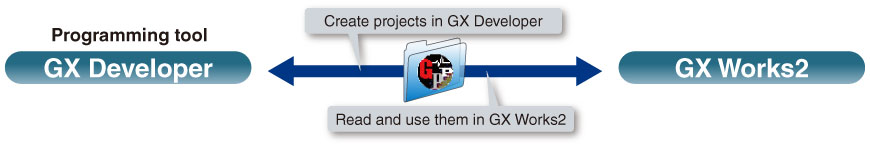

Existing GX Developer program assets can be used in GX Works2
without any modification.
Also, programs written by GX Works2 to the programmable controller
can be read using GX Developer. For example, even if GX Developer is
installed in a production site's PC, the data created and read with
GX Developer can be used with GX Works2 installed in a development
office's PC.
Sophisticated operability
The favorable GX Developer functions have been incorporated to
GX Works2 and the operability further improved.
The performance has also been enhanced to operate smoothly with
improved responsiveness.
Operability will continue to improve to respond to customer
applications.
International Standard IEC 61131-3 compliant
GX Works2 conforms to the engineering tool international
standard IEC 61131-3, and supports structured programming with
grouped parts.
Programming languages including SFC, ST and ladders, can be used
according to each application.
In addition, several languages including SFC, ST and ladders can
be used together in one program.
