Factory Automation

MELSEC iQ-F series Safety extension module

Safety main module

Item Total No. of points Safety inputs Safety outputs Safety integrity level (SIL) Performance level (PL) Off delay time Built-in program Connection type Compatible CPU module
FX5U FX5UC FX5UJ FX5S
FX5-SF-MU4T5 8 points 4 points 4 points SIL3 (IEC 61508) PL e (DIN EN ISO 13849-1) 0 / 0.5 / 1 /1.5 / 2 / 2.5 / 3 / 3.5 / 4 / 5 s 9 types Spring clamp terminal block ○ *
○ 		○ ×
  • * When connecting to FX5UC, FX5-CNV-IFC or FX5-C1PS-5V is required.

Safety expansion module

Safety input expansion module

Item Total No. of points Safety inputs Safety outputs Safety integrity level (SIL) Performance level (PL) Off delay time Built-in program Connection type Compatible CPU module *3
FX5U FX5UC FX5UJ FX5S
FX5-SF-8DI4 8 points 8 points 0 points SIL3 (IEC 61508) PL e (DIN EN ISO 13849-1) *1 *2
9 types 		Spring clamp terminal block ○ *4
○ 		○ ×
  • *1 Set the off delay time in the safety main module.
  • *2 The built-in program can set the logical path connection method with the safety main module for INPUT A and INPUT B each.
  • *3 Safety main module is required to connect to the CPU modules.
  • *4 When connecting to FX5UC, FX5-CNV-IFC or FX5-C1PS-5V is required.

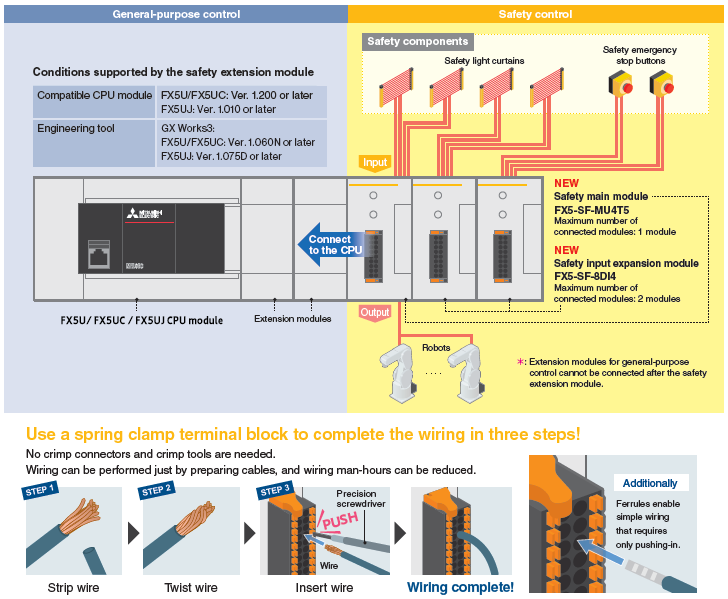

Concept

Easily create a system just by connecting a safety extension module.

A safety control system can easily be installed just by connecting a safety main module (FX5-SF-MU4T5) to an FX5U/FX5UC/FX5UJ CPU module. This single system can then be used to perform general-purpose control and safety control. Therefore, there is no need for wiring such as the one needed for monitoring the safety status (as is necessary with a safety controller) or the wiring needed between relays when constructing a system with safety relays.
Furthermore, the number of safety inputs can be expanded by connecting safety input expansion modules (FX5-SF-8DI4).

Easily create a system just by connecting a safety extension module.

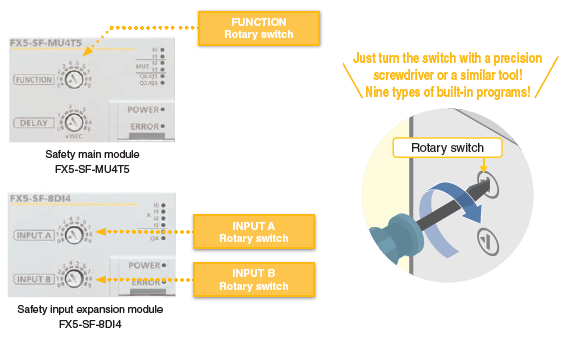

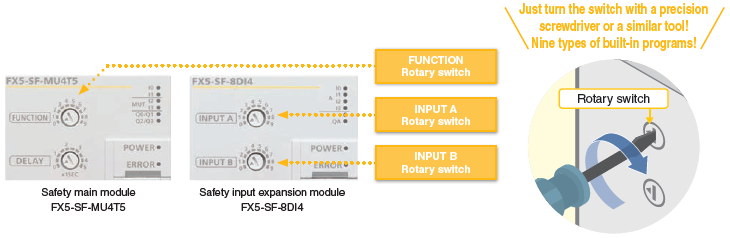

Turn the rotary switch to select the built-in program.

Each safety extension module has nine types of built-in programs. To build a safety control system, just use the rotary switch on the front of the module to select the built-in program to run.
This eliminates the need for sequence programs designed for safety control.

Turn the rotary switch to select the built-in program.
Turn the rotary switch to select the built-in program.
Turn the rotary switch to select the built-in program.

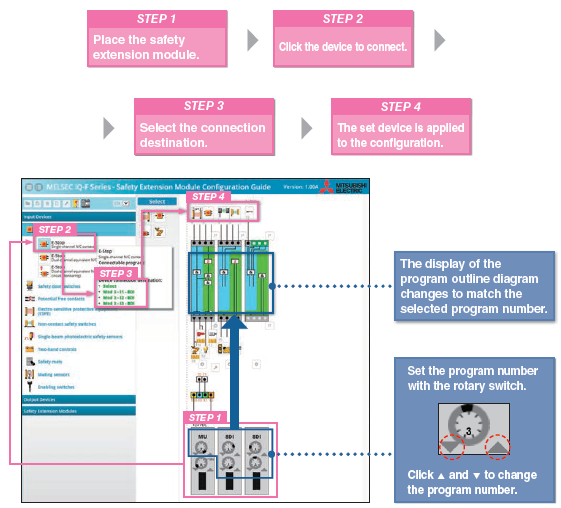

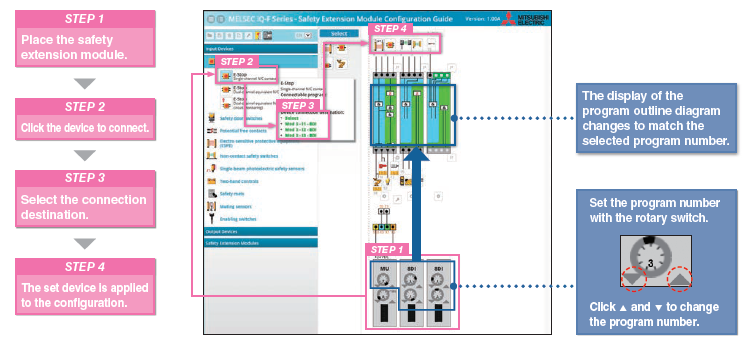

Using the Safety Extension Module Configuration Guide to determine the wiring at a glance!

We have prepared the MELSEC iQ-F Series Safety Extension Module Configuration Guide to enable users to use the safety extension module.
This configuration guide is a tool for easily checking the system configuration, settings, and wiring of the safety extension module.

Using the Safety Extension Module Configuration Guide to determine the wiring at a glance!
Using the Safety Extension Module Configuration Guide to determine the wiring at a glance!
Using the Safety Extension Module Configuration Guide to determine the wiring at a glance!
Using the Safety Extension Module Configuration Guide to determine the wiring at a glance!
Using the Safety Extension Module Configuration Guide to determine the wiring at a glance!
Using the Safety Extension Module Configuration Guide to determine the wiring at a glance!
SICK

The MELSEC iQ-F Series was developed and manufactured by SICK AG. SICK is a German supplier of safety solutions.
SICK designs and manufactures a broad range of safety products including industrial-use sensors and automatic identification systems.

* General specifications and product guarantee conditions for co-branded products may vary from those of general MELSEC products.
For more information, please refer to the relevant product manuals or contact your local Mitsubishi Electric sales office or representative.
