Controllers MELSEC iQ-R Series Product features -Advanced information-

High-speed data logger module, High-speed data communication module

The modules enable high-speed data sampling in synchronization with the programmable controller scan time and send data to the general software or customer programs.

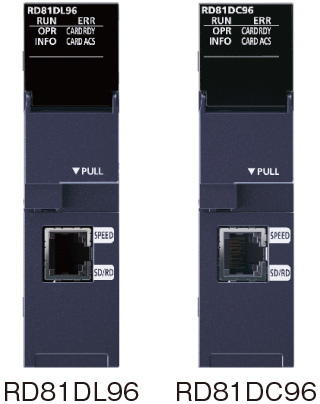

RD81DL96
High-speed data logger module

RD81DC96
High-speed data communication module

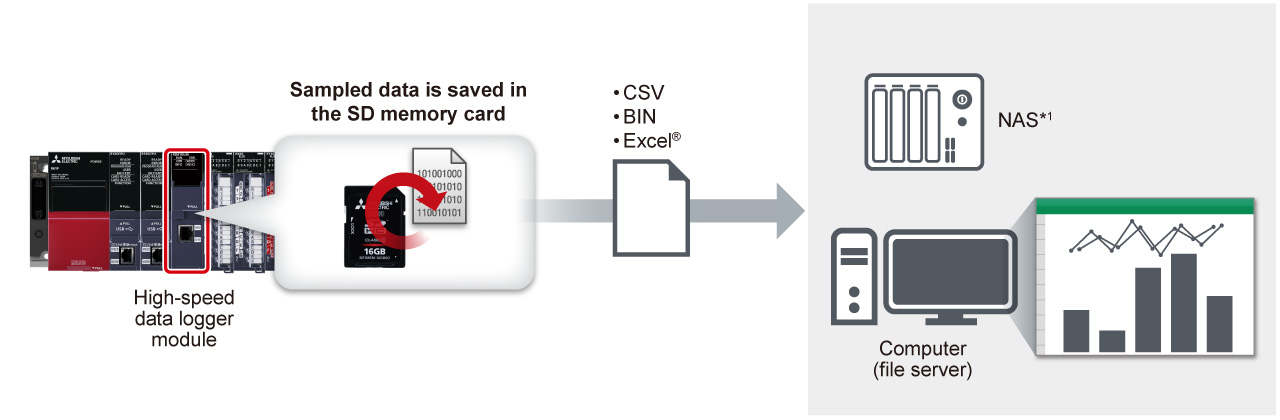

Features ^{Utilize sampled data on general software} ^RD81DL96

• Directly port to Excel ® /CSV
• Record in the SD memory card

• A single module can output Excel ® data. Data can be accumulated on Excel ® and visualized in an easy to understand format such as a graph
• Logging data can be saved in the SD memory card and transferred to the file server
• Recommended for the following customers
  • Utilize general software (Excel ® , CSV, etc.)
  • Easily analyze the output data

• *1. Network Attached Storage

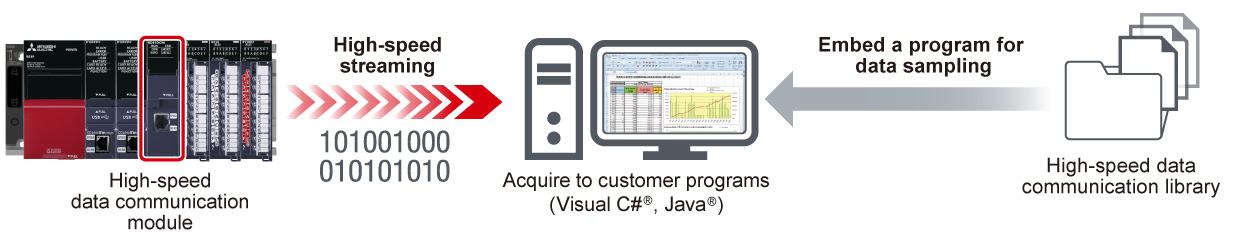

Utilize data in coordination with customer programs RD81DC96

• High-speed streaming
• Easy programming

• Production data streamed at high speed can be transferred to customer programs
• Since successive data acquisition into programs is possible, it is useful for frequent data sampling
• Utilizing available Visual C# ® and Java ® class libraries reduces programming time
• Recommended for the following customers
  • Transfer a large-capacity data to the IT system in real-time
  • Apply sampled data to various applications

Specifications ^{High-speed data logger module, high-speed data communication module specifications}
