FOR IMMEDIATE RELEASE No.2660

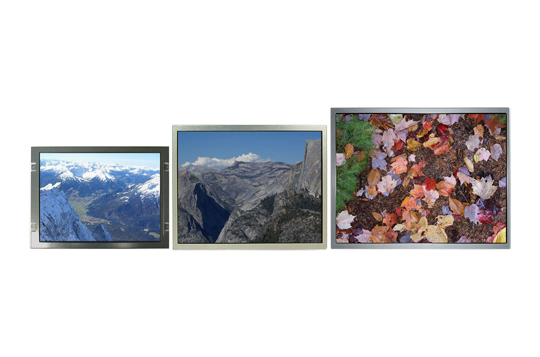

Mitsubishi Electric Launches 8.4-, 10.4- & 12.1-inch Color TFT-LCD Modules

Tokyo, February 14, 2012 - Mitsubishi Electric Corporation (TOKYO: 6503) announced today the launch of 8.4-inch SVGA, 10.4-inch SVGA and 12.1-inch SVGA color TFT-LCD modules. These industrial-use models feature super-wide viewing angles, wide-ranging operational temperatures and extended-duration LED backlighting. Sales of the 8.4-inch SVGA and 10.4-inch SVGA modules will begin on March 1, and for the 12.1-inch SVGA module on April 1, through Mitsubishi Electric offices worldwide. These industrial-use modules will be presented at FPD China 2012 held in Shanghai, China on March 20-22. Initial production has been set at 5,000 units per month for each model.

The TFT-LCD modules meet the increasing market demands for high brightness, high contrast, wide-ranging operational temperatures and wide viewing angles for diverse applications and installations. The introduction of the three new modules increases Mitsubishi Electric's lineup of super-wide viewing angle models to nine items. Features of the new modules are as follows:

Super-wide viewing angles, high brightness/contrast and vivid color
-Super-wide, 170-degree horizontal and vertical viewing angles ensure excellent visibility, including for off-center-viewing installations.
-High brightness of 600 cd/m2 and high contrast ratio of 1,000:1 for easy viewing in bright environments.
-72% color gamut on NTSC standards.
Market-leading operational temperature range
-Exceptionally wide range of operational temperatures, from -30 degrees C to 80 degrees C, to withstand severe outdoor environments.
Long-life, inverter-less backlight through use of white light-emitting diodes (LED)
-Circuit board-embedded LED driver enables the design to be compact and low-cost.
-LED backlight has a typical operating life of 100,000 hours at an ambient temperature of 25 degrees C.
-No high-voltage inverter is required.
Environmental awareness
-Mercury-free and fully compliant with Europe's Restriction of Hazardous Substances Directive (RoHS).

Specifications

AA084SC01AA104SJ02AA121ST01
Display Size/Resolution8.4-inch (800x600 dots)10.4-inch (800x600 dots)12.1-inch (800x600 dots)
Display Area (mm)170.4 (H) x 127.8 (V)211.2 (H) x 158.4 (V)246.0 (H) x 184.5 (V)
Number of Dots800 (H) x 600 (V)800 (H) x 600 (V)800 (H) x 600 (V)
Pixel Pitch (mm)0.213 (H) x0.213 (V)0.264 (H) x 0.264 (V)0.3075 (H) x 0.3075 (V)
Contrast Ratio1000:11000:11000:1
Luminance (cd/m2)600600600
Viewing Angle
(CR>10; °)
-85 to +85 (H)
-85 to +85 (V)
-85 to +85 (H)
-85 to +85 (V)
-85 to +85 (H)
-85 to +85 (V)
Number of Colors262K (6 bits/color)
16.77M (8 bits/color)
262K (6 bits/color)
16.77M (8 bits/color)
262K (6 bits/color)
16.77M (8 bits/color)
Color Gamut (NTSC; %)727272
Backlight UnitLEDLEDLED
Electrical InterfaceLVDS 6/8bitLVDS 6/8bitLVDS 6/8bit
Module Size (mm)199.5 (W) x 149.0 (H) x 9.7 (D)230.0 (W) x180.2 (H) x9.5 (D)260.5 (W) x203.0 (H) x9.5 (D)
Operational Temperature (°C)-30 to +80-30 to +80-30 to +80
Storage Temperature (°C)-30 to +80-30 to +80-30 to +80

Super-wide viewing angle lineup

Display Size ResolutionModelDisplay Size ResolutionModel
5.0-inchAA050MG01/0210.4-inchAA104SJ02
7.0-inchAA070MC0110.6-inchAA106TA01
8.4-inchAA084SC0112.1-inchAA121ST01
9.0-inchAA090ME01 & AA090AA0115.0-inchAA150XS02/11
