Human-Machine Interfaces (HMIs)-GOT GOT2000 Series
What is realized with GT25 Handy GOT
A single GT25 Handy GOT can be used for several processes
With the connector conversion box (GT16H-CNB-42S), you can switch devices to operate according to the ID number of the connector conversion box.
This function is useful when performing maintenance on several processes in a single system.

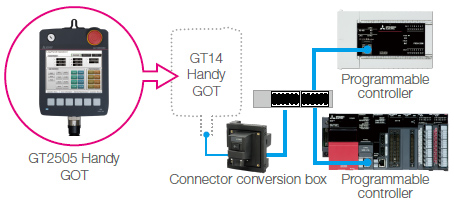

ID number recognition function
Set the ID to each connector conversion box and connect the GT25 Handy GOT to a specific programmable controller.
- 1When the connector conversion box and the cable are connected, the ID number is acquired.
- 2The GT25 Handy GOT is connected to the programmable controller which has the IP address set to the acquired ID.
Effective utilization of existing systems
When replacing the GT14 Handy GOT with the GT2505 Handy GOT, or the GT16 Handy GOT with the GT2506 Handy GOT, you can use the cables and options as they are.
The switch positions and appearance are inherited from the former model. Various functions of the GOT2000 Series are available with keeping their operational feeling.
Operation style according to the usage
