Human-Machine Interfaces(HMIs)-GOT GOT2000 Series

Specifications

General specifications

Item Specifications
Operating ambient temperature *1 0 ℃ to 55 ℃ *6 (horizontal installation),
0 ℃ to 50 ℃ (vertical installation)
Storage ambient temperature -20 ℃ to 60 ℃
Operating ambient humidity 10% RH to 90% RH, non-condensing *2
Storage ambient humidity 10% RH to 90% RH, non-condensing *2
Vibration resistance Compliant with
JIS B 3502 and
IEC 61131-2 *7
  Frequency Acceleration Half amplitude Sweep count
Under intermittent vibration 5 to 8.4 Hz - 3.5 mm 10 times in each
X, Y, or Z direction
8.4 to 150 Hz 9.8 m/s² -
Under continuous vibration 5 to 8.4 Hz - 1.75 mm -
8.4 to 150 Hz 4.9 m/s² -
Shock resistance Compliant with JIS B 3502 and IEC 61131-2 (147 m/s² (15G), 3 times in each X, Y, or Z direction) *7
Operating atmosphere No greasy fumes, corrosive gas, flammable gas, excessive conductive dust,
and direct sunlight (as well as at storage)
Operating altitude *3 2000 m or less
Installation location Inside control panel
Overvoltage category *4 Ⅱ or less
Pollution degree *5 2 or less
Cooling method Self-cooling
Grounding Grounding with a ground resistance of 100 Ω or less by using a ground cable that has a cross-sectional area of 2 mm² or more. If impossible, connect the ground cable to the control panel.
  • *1Includes the temperature inside the enclosure of the control panel to which the GOT is installed.
  • *2If the ambient temperature exceeds 40 ℃, the absolute humidity must not exceed 90% RH at 40 ℃.
  • *3 Do not use or store the GOT under a pressure higher than the atmospheric pressure at altitude 0 m. Doing so may cause a malfunction. Air purging by applying pressure to the control panel may create clearance between the surface sheet and the touch panel. This may cause the touch panel to be not sensitive enough or the sheet to come off.
  • *4This indicates the section of the power supply to which the equipment is assumed to be connected between the public electrical power distribution network and the machinery within the premises. Category II applies to equipment that is supplied with power from fixed facilities. The withstand surge voltage for the equipment with the rated voltage up to 300 V is 2500 V.
  • *5This indicates the occurrence rate of conductive material in an environment where a device is used. Pollution degree 2 indicates an environment where only non-conductive pollution occurs normally and a temporary conductivity caused by condensation shall be expected depending on the conditions.
  • *6When a protective cover for oil is mounted on the GOT, the maximum operating ambient temperature must be 5℃ lower than the one described in the general specifications.
  • *7The definition of 1G has been changed from 9.8 m/s² to 10 m/s² in JIS B 3502:2021 and IEC 61131-2 ED.3. The product was tested by using the former definition, 1G = 9.8 m/s².

Power supply specifications

Item Specification
GT2107-WTBD GT2107-WTSD
Power supply voltage 24 V DC (+10%, -15%)
Power consumption Under the maximum load 11.3 W or less
Main unit (backlight OFF) 7.0 W
Inrush current 35 A or less (3 ms, ambient temperature: 25 ℃, under the maximum load)
Permissible instantaneous power failure time 5 ms or less
Noise immunity Noise voltage: 1000 Vp-p, noise width: 1 μs,
measured by a noise simulator with noise frequency ranging from 30 Hz to 100 Hz
Withstand voltage 500 V AC for 1 minute across power terminals and earth
Insulation resistance 500 V DC across power terminals and earth,
10 MΩ or more by an insulation resistance tester

For the status of conforming to various standards and laws (CE, UKCA, ATEX, UL/cUL, Class I Division 2, KC, KCs, and maritime certifications [ABS/BV/DNV/LR/NK/RINA] ),
please refer to the "Standards and certifications Products".

Operate and store the GOT in environments without direct sunlight, high temperature, dust, humidity, and vibrations.

Performance specifications

Item Specifications
GT2107-WTBD GT2107-WTSD
Display section*1*2 Display device TFT color LCD
Screen size 7" widescreen
Resolution WVGA: 800 × 480 dots
Display size 152.40(6.00) (W) × 91.44(3.60) (H) mm (inch)
Number of displayed characters 16-dot standard font: 50 characters × 30 lines (two-byte characters)
12-dot standard font: 66 characters × 40 lines (two-byte characters)
Display color 65536 colors
Brightness adjustment 32 levels
Backlight LED (not replaceable)
Backlight life*4 Approx. 50000 h (operating ambient temperature: 25 ℃, display intensity: 50%)
Touch panel*3*11 Type Analog resistive film
Key size Minimum 2 × 2 dots*8(per key)
Simultaneous press Not available*5(Only 1 point can be touched.)
Life 1 million touches or more (operating force: 0.98 N or less)
Panel color Black Silver*10
User memory User memory capacity Memory for storage (ROM)*12: 15 MB
Life (number of write times) 100000 times
Built-in clock precision ±45 seconds/month (ambient temperature: 25 ℃)
Battery   GT11-50BAT lithium battery
Data to be backed up SRAM data, clock data
Life Approx. 5 years (ambient temperature: 25 ℃)
Built-in interface RS-232 1 channel
Transmission speed: 115200, 57600, 38400, 19200, 9600,4800 bps
Connector shape: D-sub 9-pin (male)
RS-422/485 1 channel
Transmission speed: 115200, 57600, 38400, 19200, 9600, 4800 bps
Connector shape: D-sub 9-pin (female)
Terminating resistor: OPEN/110 Ω/330 Ω (switched with the terminating resistor setting switch)
Ethernet 1 channel
Data transfer method: 100BASE-TX, 10BASE-T
Connector shape: RJ-45 (modular jack)
USB(host) 1 channel (rear face)
USB version: USB 1.1 (Full-Speed 12 Mbps)
Connector shape: USB-A
USB(device) 1 channel (front face)
USB version: USB 1.1 (Full-Speed 12 Mbps)
Connector shape: USB Mini-B
SD memory card*12 1 channel, SDHC compliant (maximum 32 GB)
Wireless LAN communication unit interface -
Sound output interface -
Buzzer output Single tone (tone length adjustable)
POWER LED -
Protective structure*6 Front: IP67F*7*9 Inside control panel: IP2X
Safety standards, radio laws CE, UKCA, UL, cUL, KC (as of June 2023)
Maritime certifications -
External dimensions 189 (7.44) (W) × 142 (5.59) (H) × 48 (1.89) (D) mm (inch)
Panel cut dimensions 180.5 (7.11) (W) × 133.5 (5.26) (H) mm (inch)
Weight (excluding a fitting) 0.7 (1.54) kg (lb)
Compatible software package GT Works3 Version1.215Z or later*13
  • *1As a characteristic of liquid crystal display panels, bright dots (always lit) and dark dots (never lit) may appear on the panel. Since liquid crystal display panels comprise a great number of display elements, the appearance of bright and dark dots cannot be reduced to zero. Individual differences in liquid crystal display panels may cause differences in color, uneven brightness and flickering. Note that these phenomena are characteristics of liquid crystal display panels and it does not mean the products are defective or damaged.
  • *2Flickering may occur due to vibration, shock, or the display colors.
  • *3When a stylus is used, the touch panel has a life of 100 thousand touches. The stylus must satisfy the following specifications.
    • Material: polyacetal resin • Tip radius: 0.8 mm or more
  • *4o prevent the display section from burning in and lengthen the backlight life, enable the screen save function and turn off the backlight.
  • *5If you touch two points or more simultaneously on the touch panel, a touch switch near the touched points may operate unexpectedly. Do not touch two points or more simultaneously on the touch panel.
  • *6Note that the structure does not guarantee protection in all users′ environments. The GOT may not be used in certain environments where it is subjected to splashing oil or chemicals for a long period of time or soaked in oil mist.
  • *7To conform to IP67F, close the USB environmental protection cover by pushing the [PULL] mark firmly. (The GOT conforms to IP2X when the USB environmental protection cover is open.)
  • *8The minimum size of a key that can be arranged. To ensure safe use of the product, the following settings are recommended.
    • Key size: 16 × 16 dots or larger • Distance between keys: 16 dots or more
  • *9The suffix "F" of IP67F is a symbol that indicates protection rate against oil. It is described in the Appendix of Japanese Industrial Standard JIS C 0920.
  • *10The lower part of the panel including the USB environmental protection cover is black.
  • *11Repeatedly touching the outer edge of the actual display area may cause the product to fail.
  • *12While writing data to the memory for storage (ROM) or an SD memory card, if GOT is powered off, the data may be corrupted which may cause the GOT to stop operating.
  • *13To use new functions, the latest version of GT Works3 is required.

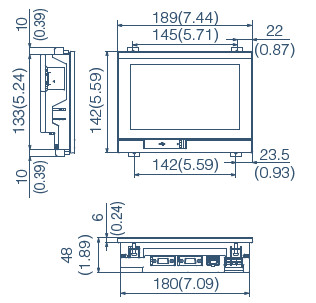

External dimensions

GT2107-WT□D

[Unit: mm (inch)]

GT2107-WT□D

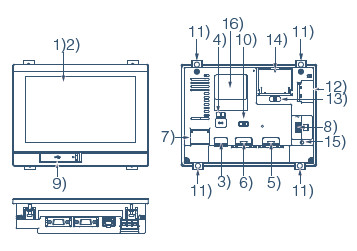

Components names

GT2107-WT□D
  • 1)Display section
  • 2)Touch panel
  • 3)Ethernet interface
  • 4)Ethernet communication status LED
  • 5)RS-232 interface
  • 6)RS-422/485 interface
  • 7)Power terminal
  • 8)USB interface (host/rear face)
  • 9)USB interface (device/front face)
  • 10)Terminating resistor setting switch
  • 11)Unit installation fitting
  • 12)SD memory card interface (inside the cover)
  • 13)SD memory card access LED
  • 14)Battery (inside the cover)
  • 15)Cable clamp mounting hole
  • 16)Rating plate

Panel cut dimensions

単位:mm(inch)

Screen size Model A B
7" widescreen GT2107-WT□D 180.5 (7.11) 133.5 (5.26)
Panel opening

Panel thickness: 1.6 mm to 4 mm (0.06 inch to 0.16 inch)
