Single phase Motor

Capacitor Start (IP 55)

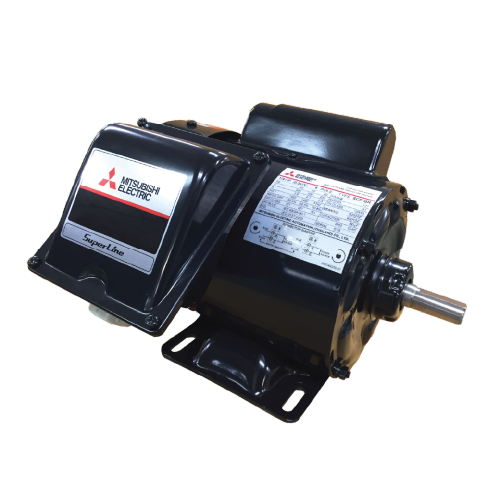

SCF-QR 1-4HP IP55

PHASE: 1

TYPE: CAPACITOR START

MODEL NAME: SCF-QR

RATED OUTPUT, HP (kW): 1/4 (0.2)

POLE: 4

CODE: MEATH CODE : 1M001C-400020QREU1

OUTLINE DRAWING NO.: ONM740536-A

RATED VOLTAGE (V): 220 | 230 | 220

RATED FREQUENCY (Hz): 50 | 50 | 60

RATED CURRENT (A): 2.6 | 2.7 | 2.2

RATED SPEED (min⁻¹): 1425 | 1430 | 1720

THERMAL CLASS: 155(F)

RATING: S1 (CONTINUOUS)

ENCLOSURE CONSTRUCTION: TOTALLY ENCLOSED FAN COOLED

DEGREES OF PROTECTION: IP55

METHOD OF COOLING: IC411

FRAME NO.: A71

WEIGHT (kg): 8

STANDARD: JEC-2137-2000

INSTALLATION: FOOT MOUNTED

ROTATION: CCW (VIEWED FROM SHAFT END)

BEARING:

  • LOAD SIDE : 6202ZZ
  • OPPOSITE SIDE : 6201ZZ

BEARING GREASE: UREA GREASE

NOISE (dB.A): 63

VIBRATION: V20

CIRCUMSTANCE:

  • AMBIENT TEMPERATURE : -20 ~ +40°C
  • AMBIENT HUMIDITY : 95% RH OR LESS
  • ABOVE SEA LEVEL : 1000m OR LESS
  • ENVIRONMENT : NO BURSTING/EROSIVE GAS OR VAPOR

COLOR: MUNSELL N1.5 (BLACK)

TERMINAL BOX:

  • NO. OF LEAD WIRES : 2
  • SOURCE CONNECTION : TERMINAL BLOCK

SHAFT SWING: ≤0.03mm

MATERIAL:

  • FRAME : STEEL PLATE
  • BRACKET : STEEL PLATE
  • SHAFT : CARBON STEEL
  • STATOR CORE : ELECTRICAL STEEL
  • WIRE : ENAMELLED COPPER MAGNET WIRE
  • ROTOR CORE : ELECTRICAL STEEL
  • CONDUCTOR : ALUMINIUM
  • TERMINAL BOX : STEEL PLATE
  • PAINTING : POLYURETHANE RESIN

PRODUCTION COUNTRY: THAILAND
SC-QR 1-3HP IP20

PHASE: 1

TYPE: CAPACITOR START

MODEL NAME: SCF-QR

RATED OUTPUT, HP (kW): 1/3 (0.25)

POLE: 4

CODE: MEATH CODE : 1M001C-400030QREU1

OUTLINE DRAWING NO.: ONM740538-A

RATED VOLTAGE (V): 220 | 230 | 220

RATED FREQUENCY (Hz): 50 | 50 | 60

RATED CURRENT (A): 3.1 | 3.2 | 2.7

RATED SPEED (min⁻¹): 1420 | 1425 | 1710

THERMAL CLASS: 155(F)

RATING: S1 (CONTINUOUS)

ENCLOSURE CONSTRUCTION: TOTALLY ENCLOSED FAN COOLED

DEGREES OF PROTECTION: IP55

METHOD OF COOLING: IC411

FRAME NO.: B71

WEIGHT (kg): 8.4

STANDARD: JEC-2137-2000

INSTALLATION: FOOT MOUNTED

ROTATION: CCW (VIEWED FROM SHAFT END)

BEARING:

  • LOAD SIDE : 6202ZZ
  • OPPOSITE SIDE : 6201ZZ

BEARING GREASE: UREA GREASE

NOISE (dB.A): 63

VIBRATION: V20

CIRCUMSTANCE:

  • AMBIENT TEMPERATURE : -20 ~ +40°C
  • AMBIENT HUMIDITY : 95% RH OR LESS
  • ABOVE SEA LEVEL : 1000m OR LESS
  • ENVIRONMENT : NO BURSTING/EROSIVE GAS OR VAPOR

COLOR: MUNSELL N1.5 (BLACK)

TERMINAL BOX:

  • NO. OF LEAD WIRES : 2
  • SOURCE CONNECTION : TERMINAL BLOCK

SHAFT SWING: ≤0.03mm

MATERIAL:

  • FRAME : STEEL PLATE
  • BRACKET : STEEL PLATE
  • SHAFT : CARBON STEEL
  • STATOR CORE : ELECTRICAL STEEL
  • WIRE : ENAMELLED COPPER MAGNET WIRE
  • ROTOR CORE : ELECTRICAL STEEL
  • CONDUCTOR : ALUMINIUM
  • TERMINAL BOX : STEEL PLATE
  • PAINTING : POLYURETHANE RESIN

PRODUCTION COUNTRY: THAILAND

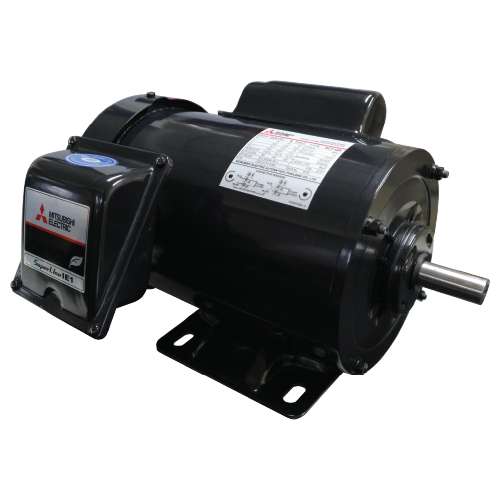

SCF-QR 1-2HP IP55

PHASE: 1

TYPE: CAPACITOR START

MODEL NAME: SCF-QR

RATED OUTPUT, HP (kW): 1/2 (0.4)

POLE: 4

CODE: MEATH CODE : 1M001C-400040QREU1

OUTLINE DRAWING NO.: ONM840540-*

RATED VOLTAGE (V): 220 | 230 | 220

RATED FREQUENCY (Hz): 50 | 50 | 60

RATED CURRENT (A): 4.1 | 4.2 | 3.6

RATED SPEED (min⁻¹): 1430 | 1435 | 1720

RATED EFFICIENCY (%): 66.8 | 66.8 | 70.0

EFFICIENCY CLASS: IE1

THERMAL CLASS: 155(F)

RATING: S1 (CONTINUOUS)

ENCLOSURE CONSTRUCTION: TOTALLY ENCLOSED FAN COOLED

DEGREES OF PROTECTION: IP55

METHOD OF COOLING: IC411

FRAME NO.: 80M

WEIGHT (kg): 12.3

STANDARD: JEC-2137-2000

EFFICIENCY RULE: IEC 60034-30-1

INSTALLATION: FOOT MOUNTED

ROTATION: CCW (VIEWED FROM SHAFT END)

BEARING:

  • LOAD SIDE : 6203ZZ
  • OPPOSITE SIDE : 6202ZZ

BEARING GREASE: UREA GREASE

NOISE (dB.A): 63

VIBRATION: V20

CIRCUMSTANCE:

  • AMBIENT TEMPERATURE : -20 ~ +40°C
  • AMBIENT HUMIDITY : 95%RH OR LESS
  • ABOVE SEA LEVEL : 1000m OR LESS
  • ENVIRONMENT : NO BURSTING/EROSIVE GAS OR VAPOR

COLOR: MUNSELL N1.5 (BLACK)

TERMINAL BOX:

  • NO. OF LEAD WIRES : 2
  • SOURCE CONNECTION : TERMINAL BLOCK

SHAFT SWING: ≤0.03mm

MATERIAL:

  • FRAME : STEEL PLATE
  • BRACKET : ALUMINIUM
  • SHAFT : CARBON STEEL
  • STATOR CORE : ELECTRICAL STEEL
  • WIRE : ENAMELLED COPPER MAGNET WIRE
  • ROTOR CORE : ELECTRICAL STEEL
  • CONDUCTOR : ALUMINIUM
  • TERMINAL BOX : STEEL PLATE
  • PAINTING : POLYURETHANE RESIN

PRODUCTION COUNTRY: THAILAND
SCF-QRV 1-4HP IP55

PHASE: 1

TYPE: CAPACITOR START

MODEL NAME: SCF-QRV

RATED OUTPUT, HP (kW): 1/4 (0.2)

POLE: 4

CODE: MEATH CODE : 1M001C-400020QVEU1

OUTLINE DRAWING NO.: ONM740537-A

RATED VOLTAGE (V): 220 | 230 | 220

RATED FREQUENCY (Hz): 50 | 50 | 60

RATED CURRENT (A): 2.6 | 2.7 | 2.2

RATED SPEED (min⁻¹): 1425 | 1430 | 1720

THERMAL CLASS: 155(F)

RATING: S1 (CONTINUOUS)

ENCLOSURE CONSTRUCTION: TOTALLY ENCLOSED FAN COOLED

DEGREES OF PROTECTION: IP55

METHOD OF COOLING: IC411

FRAME NO.: A71

WEIGHT (kg): 9.3

STANDARD: JEC-2137-2000

INSTALLATION: FLANGE MOUNTED (VERTICAL)

ROTATION: CCW (VIEWED FROM SHAFT END)

BEARING:

  • LOAD SIDE : 6202ZZ
  • OPPOSITE SIDE : 6201ZZ

BEARING GREASE: UREA GREASE

NOISE (db.A): 63

VIBRATION: V20

CIRCUMSTANCE:

  • AMBIENT TEMPERATURE : -20 ~ +40°C
  • AMBIENT HUMIDITY : 95%RH OR LESS
  • ABOVE SEA LEVEL : 1000m OR LESS
  • ENVIRONMENT : NO BURSTING/EROSIVE GAS OR VAPOR

COLOR: MUNSELL N1.5 (BLACK)

TERMINAL BOX:

  • NO. OF LEAD WIRES : 2
  • SOURCE CONNECTION : TERMINAL BLOCK

SHAFT SWING: ≤0.03mm

MATERIAL:

  • FRAME : STEEL PLATE
  • BRACKET LOAD SIDE : CAST IRON (FLANGE)
  • OPPOSITE SIDE : STEEL PLATE
  • SHAFT : CARBON STEEL
  • STATOR CORE : ELECTRICAL STEEL
  • WIRE : ENAMELLED COPPER MAGNET WIRE
  • ROTOR CORE : ELECTRICAL STEEL
  • CONDUCTOR : ALUMINIUM
  • TERMINAL BOX : STEEL PLATE
  • PAINTING : POLYURETHANE RESIN

PRODUCTION COUNTRY: THAILAND
SCF-QRV 1-3HP IP55

PHASE: 1

TYPE: CAPACITOR START

MODEL NAME: SCF-QRV

RATED OUTPUT, HP (kW): 1/3 (0.25)

POLE: 4

CODE: MEATH CODE : 1M001C-400030QVEU1

OUTLINE DRAWING NO.: ONM740539-A

RATED VOLTAGE (V): 220 | 230 | 220

RATED FREQUENCY (Hz): 50 | 50 | 60

RATED CURRENT (A): 3.1 | 3.2 | 2.7

RATED SPEED (min⁻¹): 1420 | 1425 | 1710

THERMAL CLASS: 155(F)

RATING: S1 (CONTINUOUS)

ENCLOSURE CONSTRUCTION: TOTALLY ENCLOSED FAN COOLED

DEGREES OF PROTECTION: IP55

METHOD OF COOLING: IC411

FRAME NO.: B71

WEIGHT (kg): 9.8

STANDARD: JEC-2137-2000

INSTALLATION: FLANGE MOUNTED (VERTICAL)

ROTATION: CCW (VIEWED FROM SHAFT END)

BEARING:

  • LOAD SIDE : 6202ZZ
  • OPPOSITE SIDE : 6201ZZ

BEARING GREASE: UREA GREASE

NOISE (db.A): 63

VIBRATION: V20

CIRCUMSTANCE:

  • AMBIENT TEMPERATURE : -20 ~ +40°C
  • AMBIENT HUMIDITY : 95%RH OR LESS
  • ABOVE SEA LEVEL : 1000m OR LESS
  • ENVIRONMENT : NO BURSTING/EROSIVE GAS OR VAPOR

COLOR: MUNSELL N1.5 (BLACK)

TERMINAL BOX:

  • NO. OF LEAD WIRES : 2
  • SOURCE CONNECTION : TERMINAL BLOCK

SHAFT SWING: ≤0.03mm

MATERIAL:

  • FRAME : STEEL PLATE
  • BRACKET LOAD SIDE : CAST IRON (FLANGE)
  • OPPOSITE SIDE : STEEL PLATE
  • SHAFT : CARBON STEEL
  • STATOR CORE : ELECTRICAL STEEL
  • WIRE : ENAMELLED COPPER MAGNET WIRE
  • ROTOR CORE : ELECTRICAL STEEL
  • CONDUCTOR : ALUMINIUM
  • TERMINAL BOX : STEEL PLATE
  • PAINTING : POLYURETHANE RESIN

PRODUCTION COUNTRY: THAILAND
SCF-QRV 1-2HP IP55

PHASE: 1

TYPE: CAPACITOR START

MODEL NAME: SCF-QRV

RATED OUTPUT, HP (kW): 1/2 (0.4)

POLE: 4

CODE: MEATH CODE : 1M001C-400040QVEU2

OUTLINE DRAWING NO.: ONM840541-*

RATED VOLTAGE (V): 220 | 230 | 220

RATED FREQUENCY (Hz): 50 | 50 | 60

RATED CURRENT (A): 4.1 | 4.2 | 3.6

RATED SPEED (min⁻¹): 1430 | 1435 | 1720

RATED EFFICIENCY (%): 66.8 | 66.8 | 70.0

EFFICIENCY CLASS: IE1

THERMAL CLASS: 155(F)

RATING: S1 (CONTINUOUS)

ENCLOSURE CONSTRUCTION: TOTALLY ENCLOSED FAN COOLED

DEGREES OF PROTECTION: IP55

METHOD OF COOLING: IC411

FRAME NO.: 80M

WEIGHT (kg): 14.2

STANDARD: JEC-2137-2000

EFFICIENCY RULE: IEC 60034-30-1

INSTALLATION: FLANGE MOUNTED (VERTICAL)

ROTATION: CCW (VIEWED FROM SHAFT END)

BEARING:

  • LOAD SIDE : 6203ZZ
  • OPPOSITE SIDE : 6202ZZ

BEARING GREASE: UREA GREASE

NOISE (db.A): 63

VIBRATION: V20

CIRCUMSTANCE:

  • AMBIENT TEMPERATURE : -20 ~ +40°C
  • AMBIENT HUMIDITY : 95%RH OR LESS
  • ABOVE SEA LEVEL : 1000m OR LESS
  • ENVIRONMENT : NO BURSTING/EROSIVE GAS OR VAPOR

COLOR: MUNSELL N1.5 (BLACK)

TERMINAL BOX:

  • NO. OF LEAD WIRES : 2
  • SOURCE CONNECTION : TERMINAL BLOCK

SHAFT SWING: ≤0.03mm

MATERIAL:

  • FRAME : STEEL PLATE
  • BRACKET LOAD SIDE : CAST IRON (FLANGE)
  • OPPOSITE SIDE : ALUMINIUM
  • SHAFT : CARBON STEEL
  • STATOR CORE : ELECTRICAL STEEL
  • WIRE : ENAMELLED COPPER MAGNET WIRE
  • ROTOR CORE : ELECTRICAL STEEL
  • CONDUCTOR : ALUMINIUM
  • TERMINAL BOX : STEEL PLATE
  • PAINTING : POLYURETHANE RESIN

PRODUCTION COUNTRY: THAILAND
