Controllers MELSEC iQ-R Series Fitur Produk -Jaringan-

Katalog Produk

Modul antarmuka Ethernet

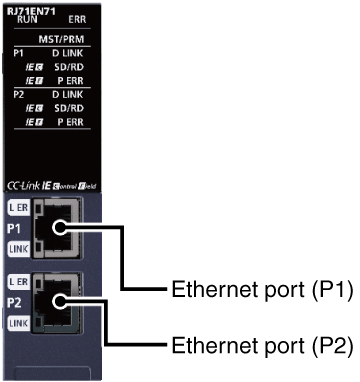

Modul ini dilengkapi dengan dua port yang dapat digunakan sebagai Ethernet umum, Jaringan Pengendali CC-Link IE (kabel berpasangan terpilin), atau Jaringan Lapangan CC-Link IE.

RJ71EN71

Fitur<sup>Berbagi data dengan mudah dengan pengontrol terprogram pihak ketiga tanpa program</sup>

Komunikasi tanpa program

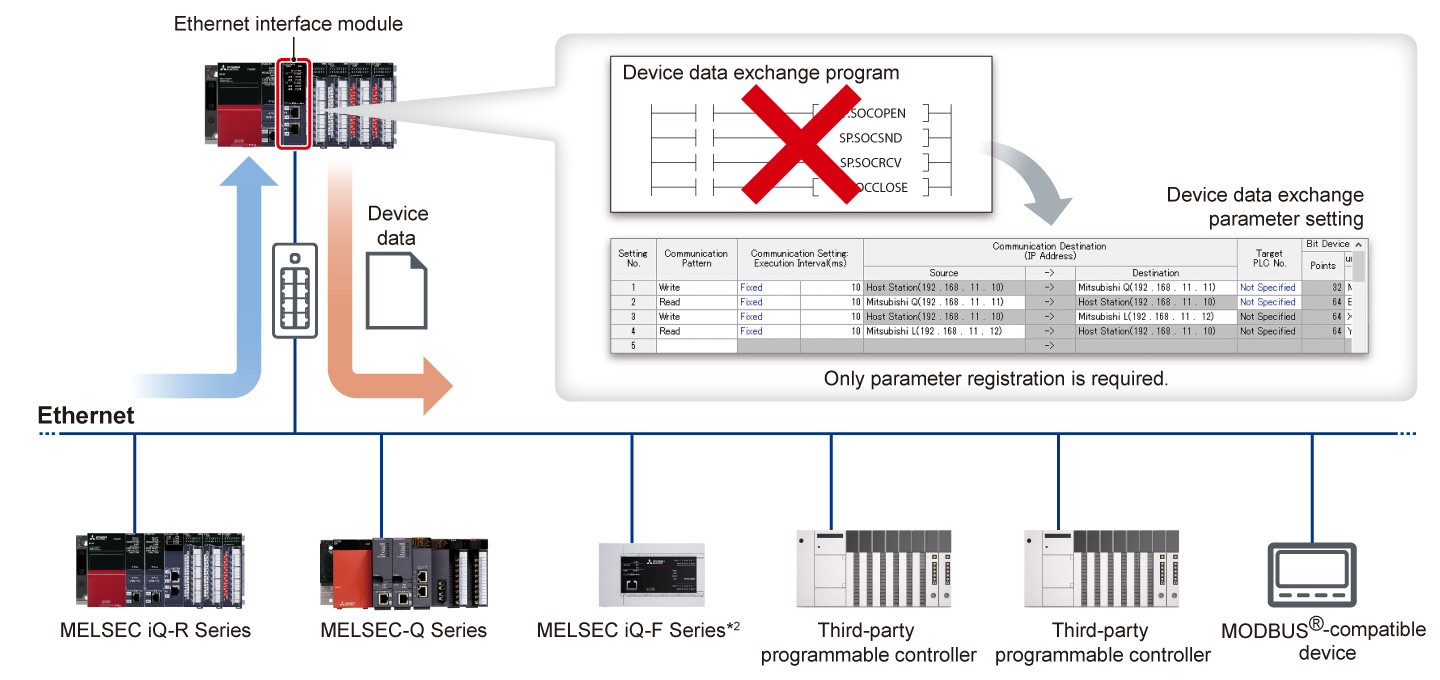

Modul antarmuka Ethernet memungkinkan pertukaran data perangkat melalui registrasi parameter dengan pengontrol terprogram Mitsubishi Electric serta pengontrol terprogram pihak ketiga (fungsi komunikasi CPU sederhana)^*1
Pengumpulan data lebih mudah tanpa mengubah program pengontrol terprogram yang ada

*1.Klik di sini for the list of connectable devices

*2.Hanya didukung oleh port Ethernet tertanam.

Dua port Ethernet mendukung dua jaringan

Kompatibilitas beberapa jaringan

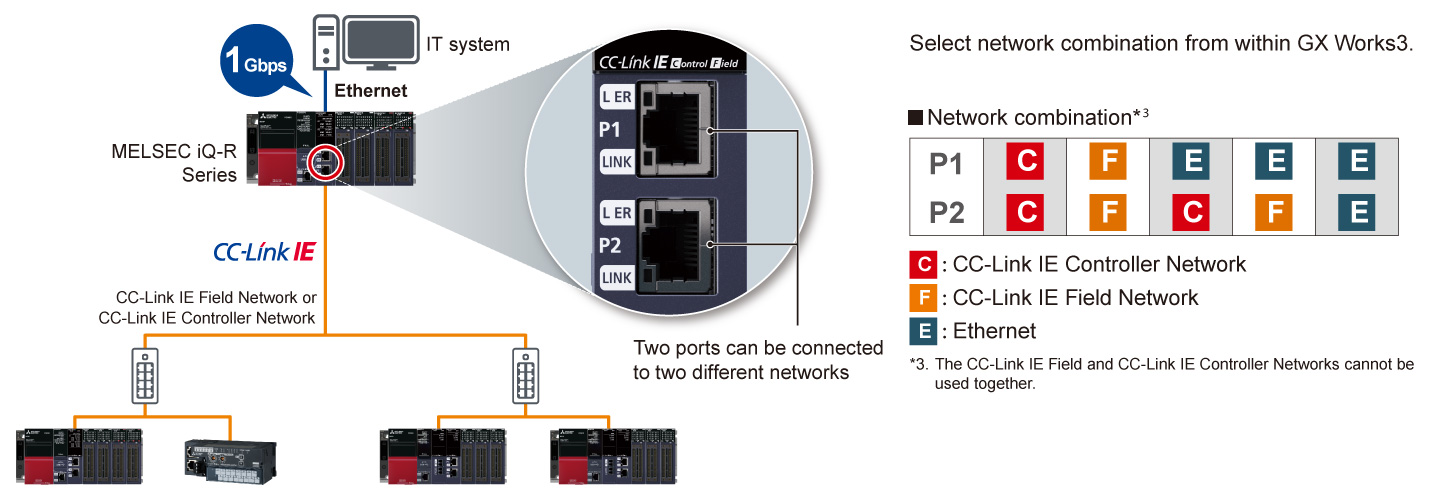

Dilengkapi dengan dua port Ethernet, modul ini memungkinkan komunikasi Ethernet, CC-Link IE Controller Network, dan CC-Link IE Field Network. Jaringan yang berbeda dapat dihubungkan secara bersamaan ke dua port Ethernet

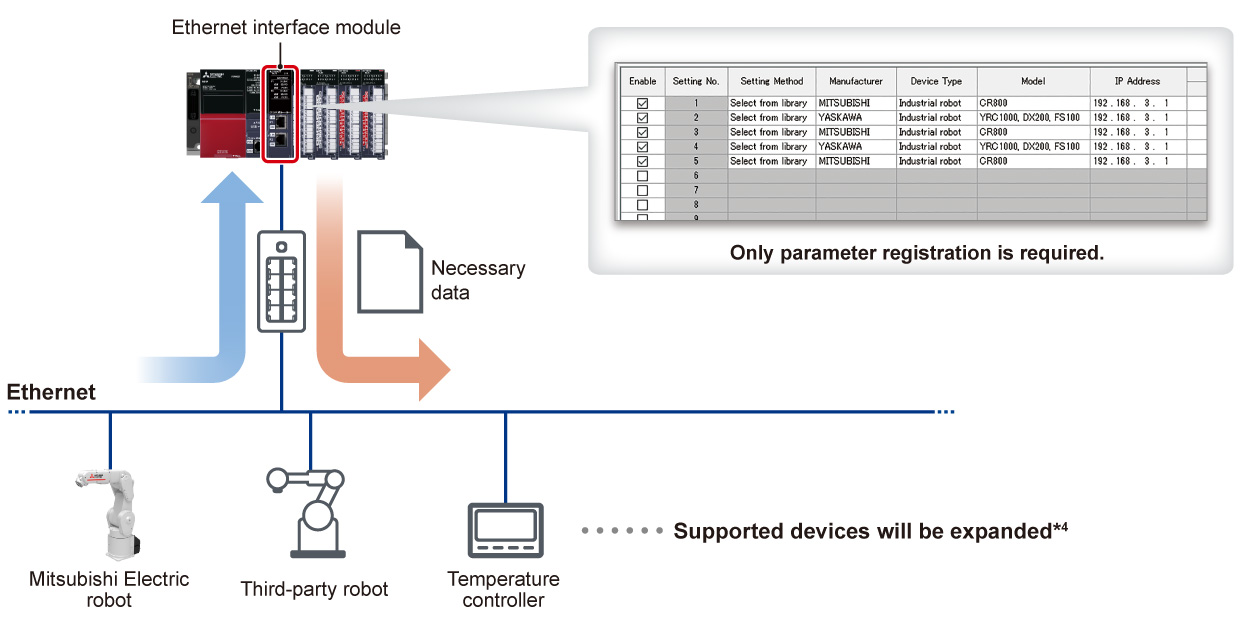

Akses ke informasi perangkat pihak ketiga (area memori)

Komunikasi tanpa program

Fungsi komunikasi perangkat sederhana memungkinkan komunikasi tidak hanya dengan perangkat Mitsubishi Electric tetapi juga dengan perangkat pihak ketiga (robot, pengontrol suhu, dll.) untuk memperoleh berbagai informasi seperti informasi pengoperasian dan diagnostik
Membaca/menulis data yang diperlukan di perangkat target hanya dengan memilih perintah. Ini berguna saat mengakses data kepemilikan di perangkat tertentu

*4.Untuk informasi lebih lanjut tentang perangkat yang kompatibel, silakan lihat “Manual Referensi Pustaka Komunikasi Perangkat Sederhana MELSEC iQ-R (SH-082515ENG)”.

Daftar Model yang Berlaku

Manufacturer	Device Type	Model	Software version of the engineering tool	Firmware version of the RJ71EN71 and the RnENCPU (network part)
YASKAWA Electric Corporation	Industrial robot	YRC1000 DX200 FS100	“1.075D” or later	“56” or later
Mitsubishi Electric		CR800	“1.075D” or later	“56” or later
FANUC		R-30iB	“1.085P” or later	“59” or later
UNIVERSAL ROBOTS		UR3e UR5e UR10e UR16e	“1.085P” or later	“59” or later
UNIVERSAL ROBOTS		UR3e UR5e UR10e UR16e (Dashboard server)	“1.100E” or later	“59” or later
NACHI-FUJIKOSHI		FD Controller	“1.110Q” or later	“59” or later
RKC INSTRUMENT	Temperature controller	FB series FB100 FB400 FB900	“1.085P” or later	“59” or later
		SRZ series (COM-JL) Z-TIO Z-DIO	“1.085P” or later	“59” or later
		SRZ series (COM-ME-1) Z-TIO Z-DIO	“1.085P” or later	“59” or later
Azbil		NX-D NX-S NX-DX NX-DY	“1.085P” or later	“59” or later
Yokogawa Electric		UTAdvanced UT75A UT55A UT35A UP55A UP35A	“1.090U” or later	“59” or later
Mitsubishi Electric	Molded Case Circuit breaker with measuring display unit	NF250 NF400 NF630 NF800	“1.095Z” or later	“71” or later
	Energy measuring unit	EcoMonitorLight EMU4-BD1-MB EMU4-HD1-MB	“1.100E” or later	“71” or later
		EcoMonitorLight EMU4-BD1A-MB EMU4-HD1A-MB	“1.095Z” or later	“71” or later
		EcoMonitorPlus EMU4-BM1-MB EMU4-HM1-MB EMU4-A2 EMU4-VA2 EMU4-AX4 EMU4-PX4	“1.095Z” or later	“71” or later
Omron	RFID system	V680S series V680S-HMD63-ETN V680S-HMD64-ETN V680S-HMD66-ETN	“1.095Z” or later	“71” or later
Omron	RFID system	V780 series V780-HMD68-ETN-□□	“1.105K” or later	“71” or later
KEYENCE	Recorder	TR-H TR-W	“1.095Z” or later	“59” or later
Yokogawa Electric	Recorder	GP10 GX10	“1.100E” or later	“59” or later
Mitsubishi Electric	Electronic Multi-Measuring Instrument	ME96 series ME96SSRB-MB ME96SSHB-MB	“1.095Z” or later	“71” or later
Omron	Switch mode power supply	S8VK-X	“1.100E” or later	“59” or later
The Japan Steel Works	Injection molding machine	J-ADS	“1.100E” or later	“59” or later
Sumitomo Heavy Industries	Injection molding machine	SE-EV□ series	“1.110Q” or later	“77” or later
Silex Technology	Protocol Converter *5	FBR-100AN FBR-100	“1.105K” or later	“59” or later
SATO	Barcode Printer	CL4NX(-J) PLUS CL6NX(-J) PLUS	“1.110Q” or later	“59” or later
General Purpose Library	MODBUS/TCP Compatible Device	MODBUS/TCP	“1.100E” or later	“75” or later

*5.Untuk perangkat yang kompatibel, silakan merujuk ke situs web produsen.

Spesifikasi<sup>Spesifikasi modul antarmuka Ethernet</sup>

Item	RJ71EN71^*6
Transmission specifications
Data transmission speed (bps)	1G/100M/10M
Antarmuka	RJ45 connector (Auto MDI/MDI-X)
Max. frame size (byte)	1518/9022 (when jumbo frames are used)
IP version	Compatible with IPv4
Sending/receiving data storage memory
Number of simultaneous open connections	128
Fixed buffer	5K words x 16 (only P1 can be used)
Socket communications	5K words × 48 (when only P1 is used), 5K words × 112 (when only P1/P2 is used)
Random access buffer	6K words × 1
Simple CPU communication	●
MODBUS®/TCP communicationn	●^*7
CC-Link IE Field/Controller Network cable specifications
Connection cable	Ethernet cable (Category 5e or higher, double shielded/STP)

*6.Spesifikasinya berbeda untuk mode Ethernet yang kompatibel dengan Seri MELSEC-Q.
*7.Fungsi master MODBUS®/TCP didukung saat digunakan dengan fungsi komunikasi CPU sederhana atau fungsi dukungan protokol yang telah ditetapkan sebelumnya.
