Controllers MELSEC iQ-R Series Product features -Basic system configuration-
Basic units
Extension base
Power supply modules

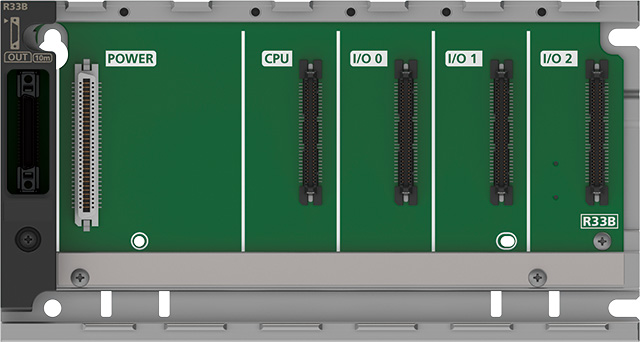

Main base
| Item | R33B | R35B | R38B | R312B | R310RB | R310B-HT | R38RB-HT |
|---|---|---|---|---|---|---|---|
| Number of mountable I/O modules | 3 | 5 | 8 | 12 | 10 | 10 | 8 |
| External dimension, width (mm) | 189 | 245 | 328 | 439 | 439 | 439 | 439 |
| Redundant power supply function | - | - | - | - | ● | - | ● |
| Extended temperature range | - | - | - | - | - | ● | ● |

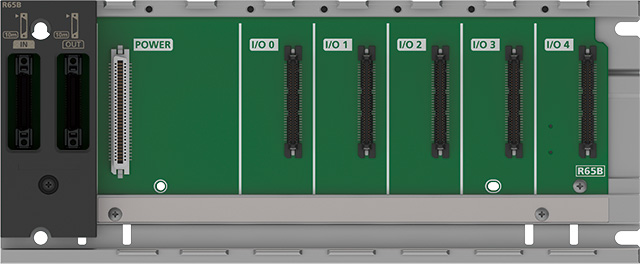

Extension base
| Item | R65B | R68B | R612B | R610RB | R68WRB | R610B-HT | R68RB-HT | R66WRB-HT |
|---|---|---|---|---|---|---|---|---|
| Number of mountable I/O modules | 5 | 8 | 12 | 10 | 8 | 10 | 8 | 6 |
| External dimension, width (mm) | 245 | 328 | 439 | 439 | 439 | 439 | 439 | 439 |
| Redundant power supply function | - | - | - | ● | ● | - | ● | ● |
| Redundant system function | - | - | - | - | ● | - | - | ● |
| Extended temperature range | - | - | - | - | - | ● | ● | ● |

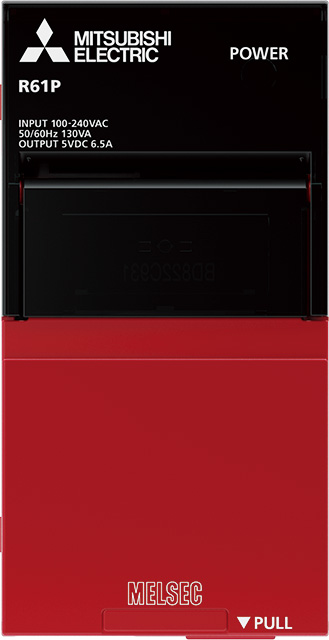

Power supply module
| Item | AC input | DC input | ||||||
|---|---|---|---|---|---|---|---|---|
| R61P | R62P | R64P | R64RP | R63P | R63RP | R69P | R69RP | |
| Input power supply voltage | 100…240 V AC (+10%, -15%), 50/60 Hz (±5%) | 24 V DC (+30%, -20%)*2 | ||||||
| Maximum input apparent power (VA) | 130 | 120 | 160 | - | ||||
| Maximum input power (W) | - | 50 | 65 | |||||
| Rated output voltage (V) | 5 | 5 | ||||||
| Rated output current (A) | 6.5 | 3.5 | 9 | 6.5 | 9 | |||
| Redundant power supply function | - | - | - | ● | - | ● | - | ● |
| 24 V DC service power supply | - | ● | - | - | - | - | - | - |
- *2.R63P supports -35%

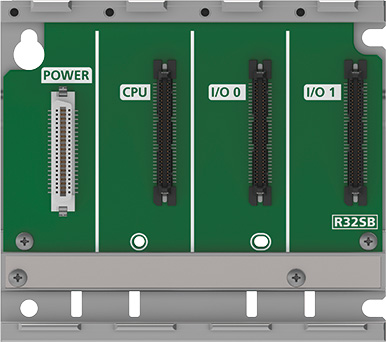

Slim type main base
| Item | R32SB | R33SB | R35SB |
|---|---|---|---|
| Number of mountable I/O modules | 2 | 3 | 5 |
| External dimension, width (mm) | 114 | 142 | 198.5 |

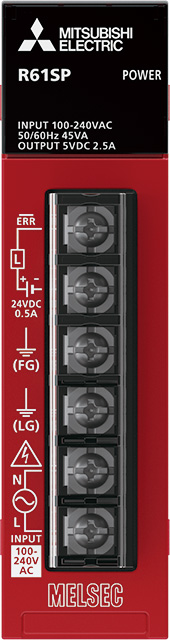

Slim type power supply module
| Item | R61SP |
|---|---|
| Input power supply voltage | 100…240 V AC (+10%, -15%), 50/60 Hz (±5%) |
| Maximum input apparent power (VA) | 45 |
| Rated output voltage (V) | 5 |
| Rated output current (A) | 2.5 |
