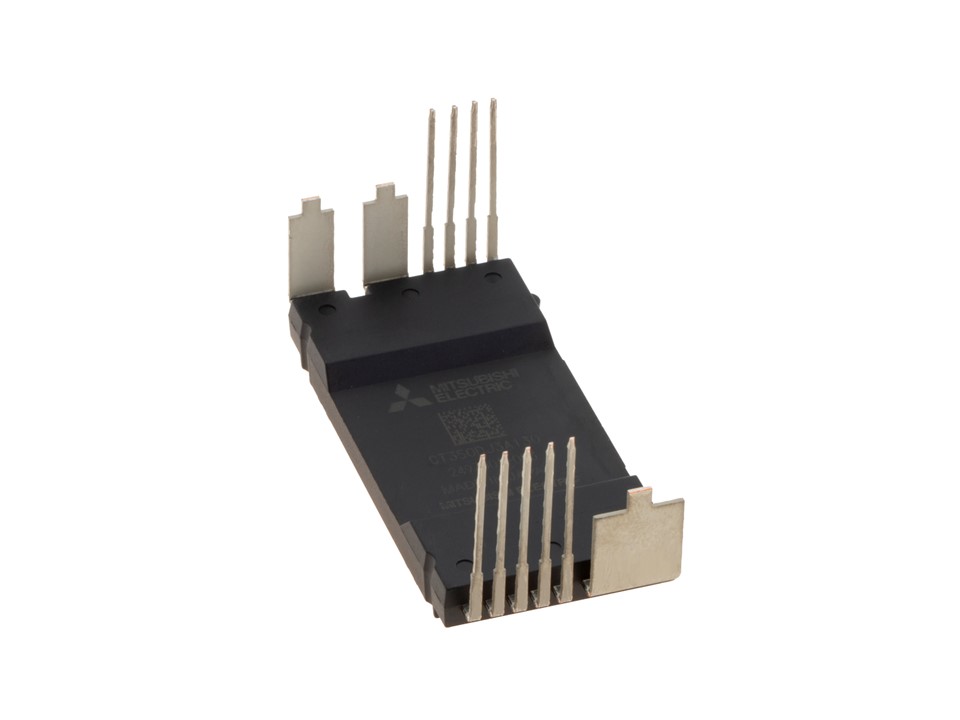

CT400DJ3A075
750V, 400A, 2in1
This is the latest generation of our T-PM*1, which has a proven track record in the automotive market, and realizes a small module size. Equipped with RC-IGBT that combines an IGBT and a freewheeling diode on a single chip.
*1：Transfer molded Power Module
Features

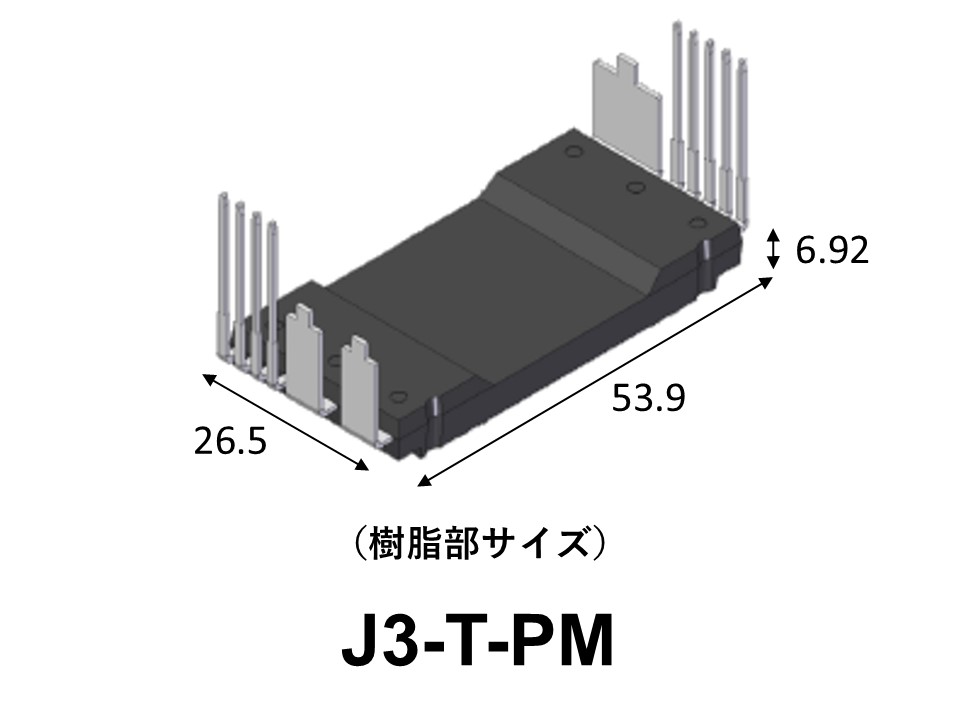

- About 60% smaller modules compared to existing products*2 , which will contribute to smaller xEV inverters
- Compact, lightweight, and low profile for a wide range of applications
- 2in1, low thermal resistance, high reliability transfer mold package

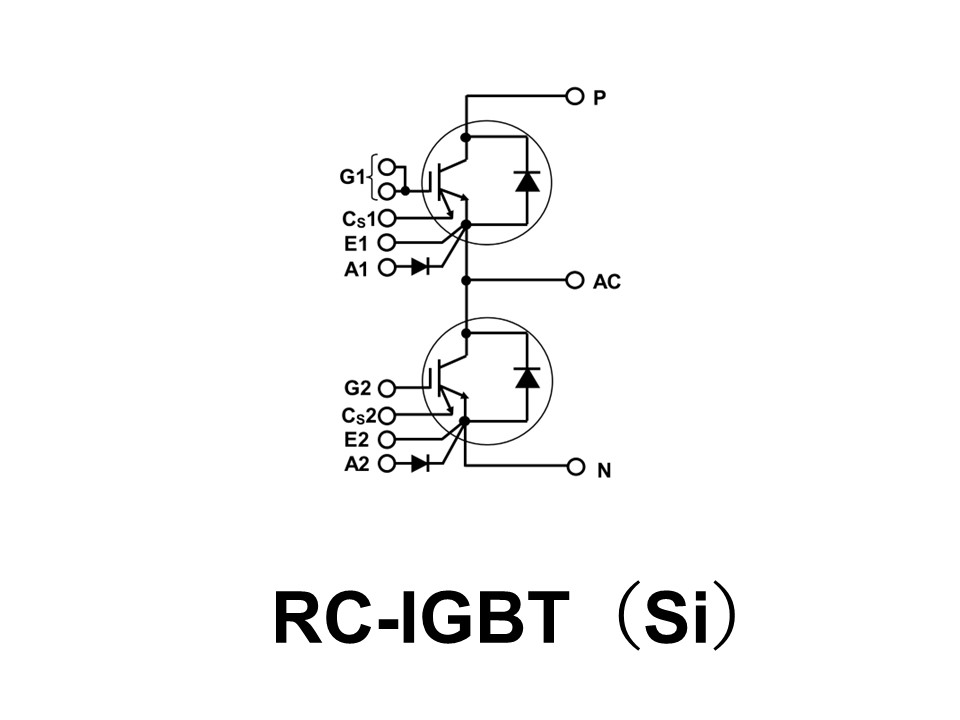

- The RC-IGBT (Si) uses a new structure that combines an IGBT and a freewheeling diode (FWD) on a single chip
- Built-in on-chip temperature sensor
- Built-in on-chip current sensor for SC protection
- *2：2in1 J-Series T-PM(CT300DJH120)
Applications
- EV・HEV
- High reliability inverter
Main Specifications
| Parameter | Level | Value | Unit |
|---|---|---|---|
| Main Applications | Automotive | ||
| Supply situation | Under development | ||
| Rated voltage | Max | 750 | V |
| Rated current | Max | 400 | A |
| Connection | 2-PACK | ||
| Package type | Transfer molded Power Module | ||
| Device | RC-IGBT（Si） |
Please contact us for samples, data sheets and application notes.
