CT800CJ3D075
750V, 800A, 6in1

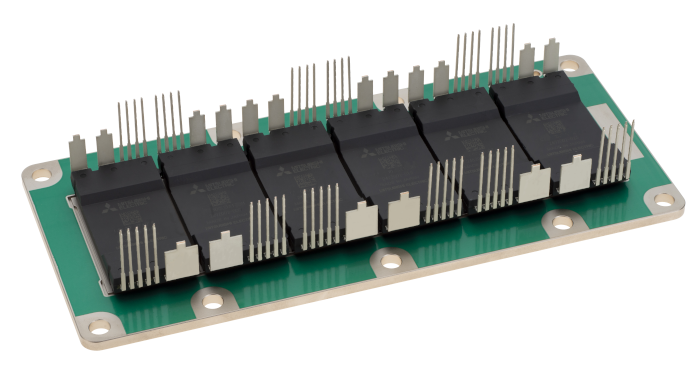

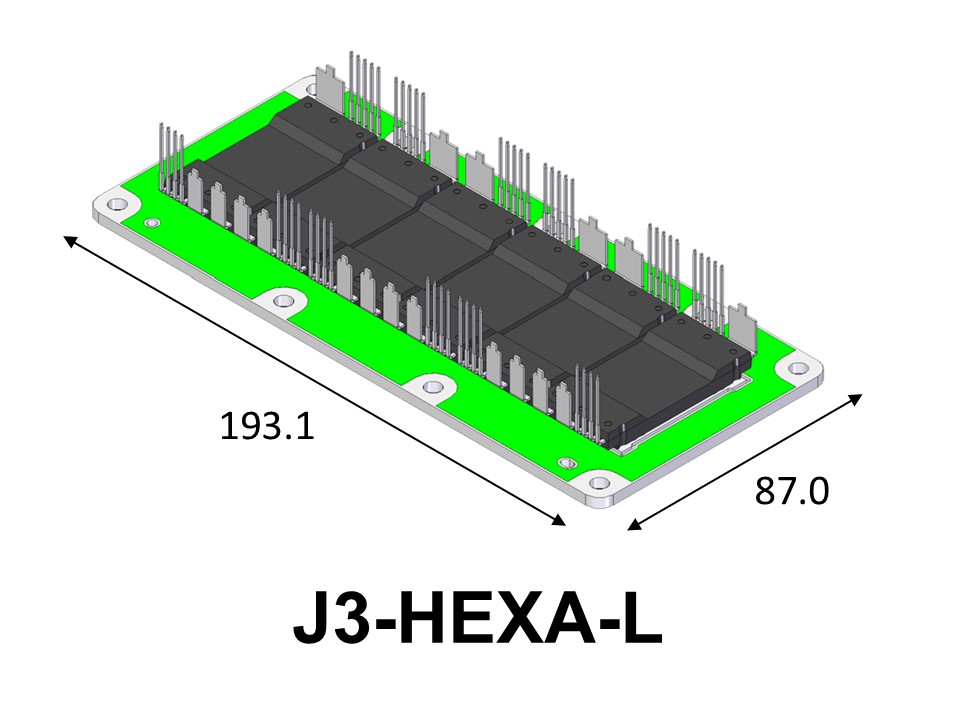

The J3-T-PM*1 and pin fin baseplate are joined together to form a 6-in-1 power module. Equipped with RC-IGBT that combines an IGBT and freewheeling diode on a single chip.
*1：Transfer molded Power Module
Features
- 6-in-1, integrated water-cooling fin package with pin fins
- Direct water-cooled high heat dissipation package, large capacity compatible

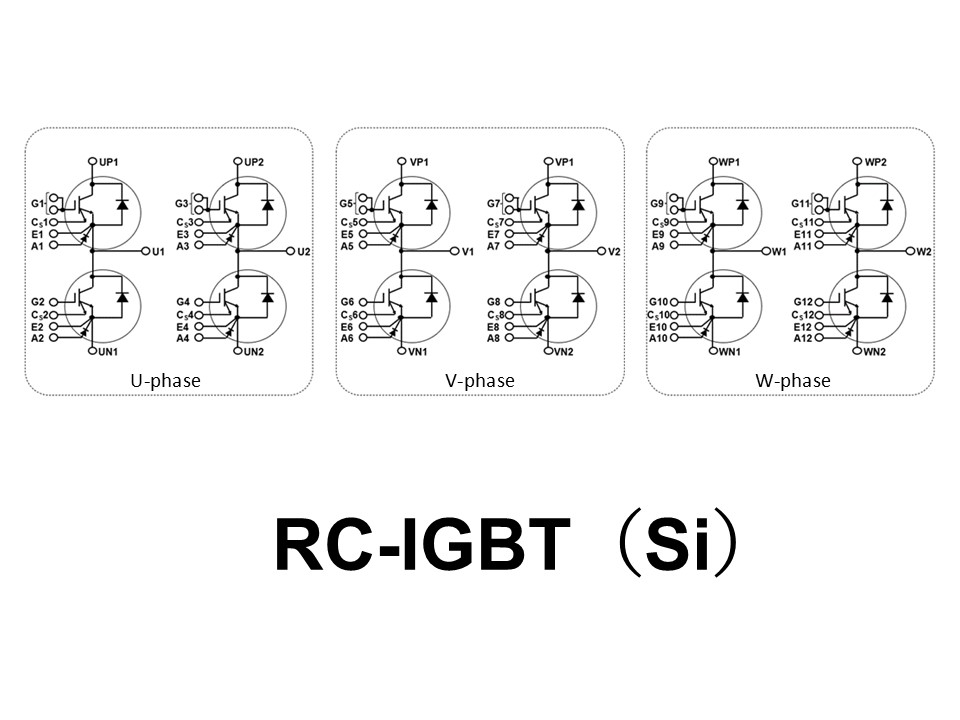

- The RC-IGBT (Si) uses a new structure that combines an IGBT and a FWD*2 on a single chip
- Built-in on-chip temperature sensor
- Built-in on-chip current sensor for SC protection
- Evaluation kit available
- *2：Freewheeling Diode
Applications
- EV・HEV
- High reliability inverter
Main Specifications
| Parameter | Level | Value | Unit |
|---|---|---|---|
| Main Applications | Automotive | ||
| Supply situation | Under development | ||
| Rated voltage | Max | 750 | V |
| Rated current | Max | 800 | A |
| Connection | 6-PACK | ||
| Package type |
Transfer molded Power Module ( integrated water-cooling fin package with pin fins ) |
||
| Device | RC-IGBT（Si） |
Please contact us for samples, data sheets, application notes and evaluation kits.
